DTC C1295, C1307, C1937, C1938, C1956: Steering Angle Sensor: Notes

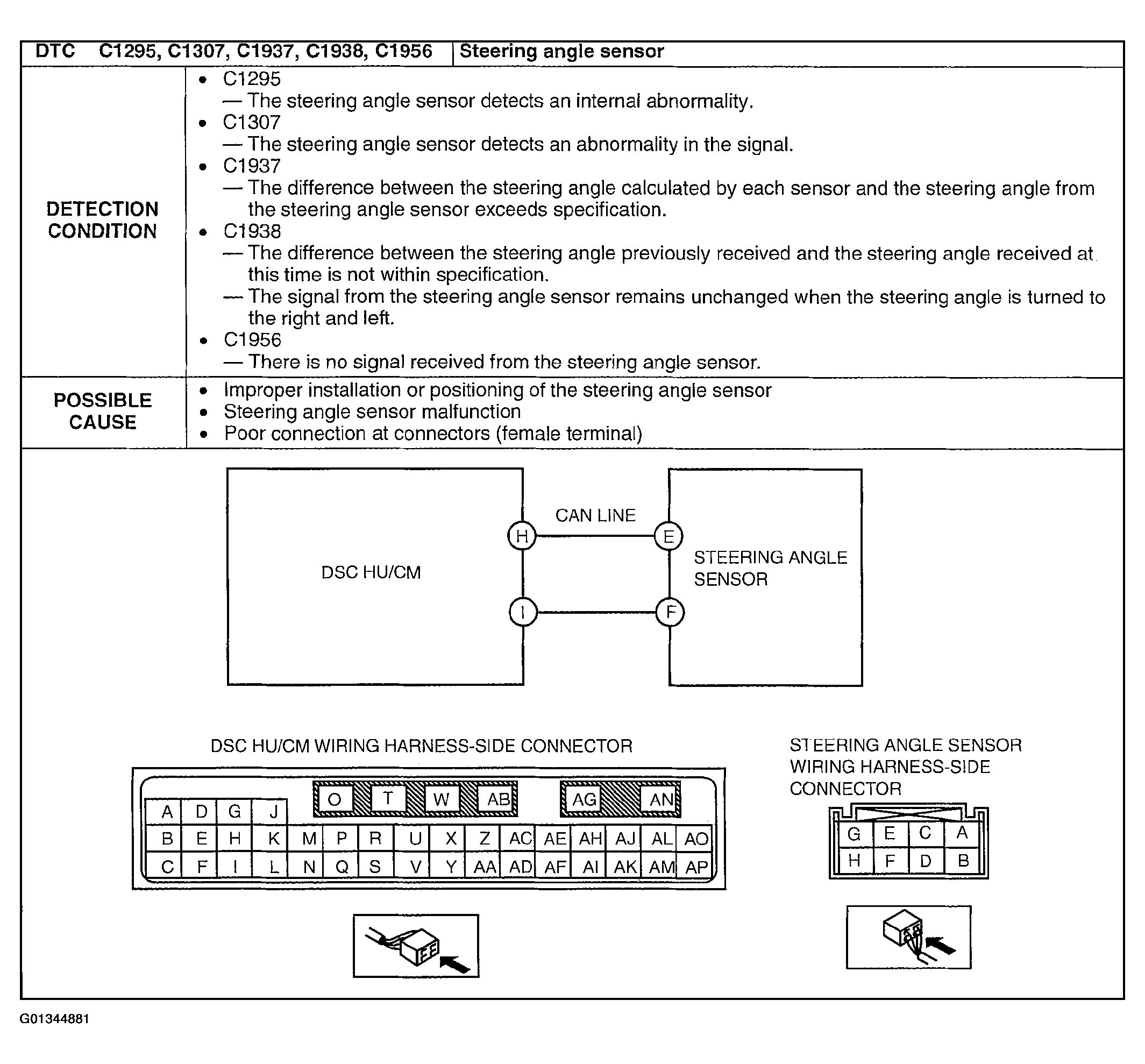

Fig 1: DTC C1295, C1307, C1937, C1938, C1956 [DYNAMIC STABILITY CONTROL]

G01344881

Courtesy of MAZDA MOTORS CORP.
