Home >> Mazda >> 2004 >> RX-8 1.3 3 >> Repair and Diagnosis (Single Page) >> Brakes >> Anti-Lock Brakes >> On-Board Diagnostic (Abs) >> On-Board Diagnostic >> DTC C1288, C1290, C1440, C1730, C1954: Brake Fluid Pressure Sensor >> Notes

DTC C1288, C1290, C1440, C1730, C1954: Brake Fluid Pressure Sensor: Notes

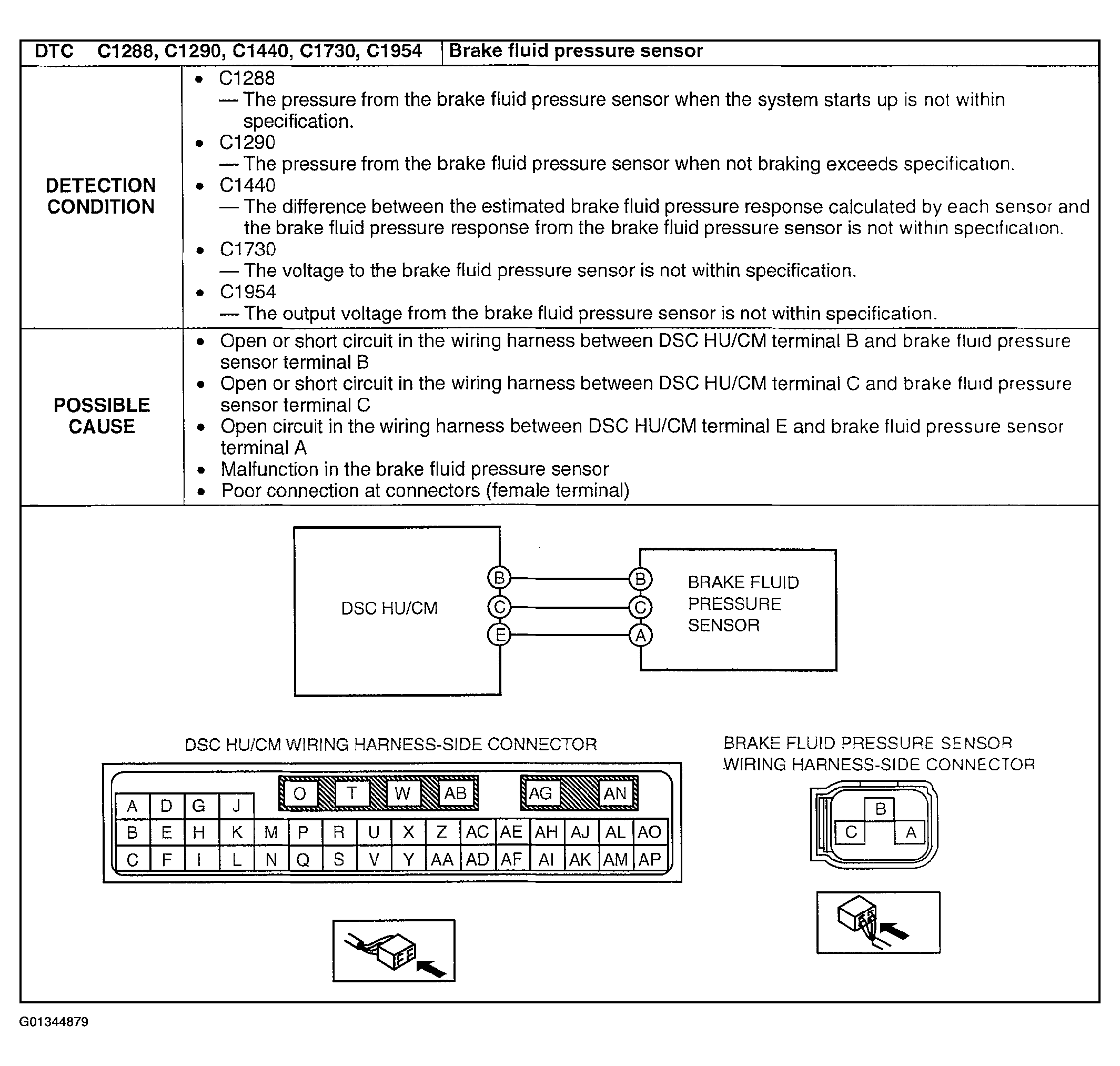

Fig 1: DTC C1288, C1290, C1440, C1730, C1954 [DYNAMIC STABILITY CONTROL]

G01344879

Courtesy of MAZDA MOTORS CORP.
