DTC C1233, C1234, C1235, C1236: Abs Wheel-Speed Sensor (Short To Ground): Notes

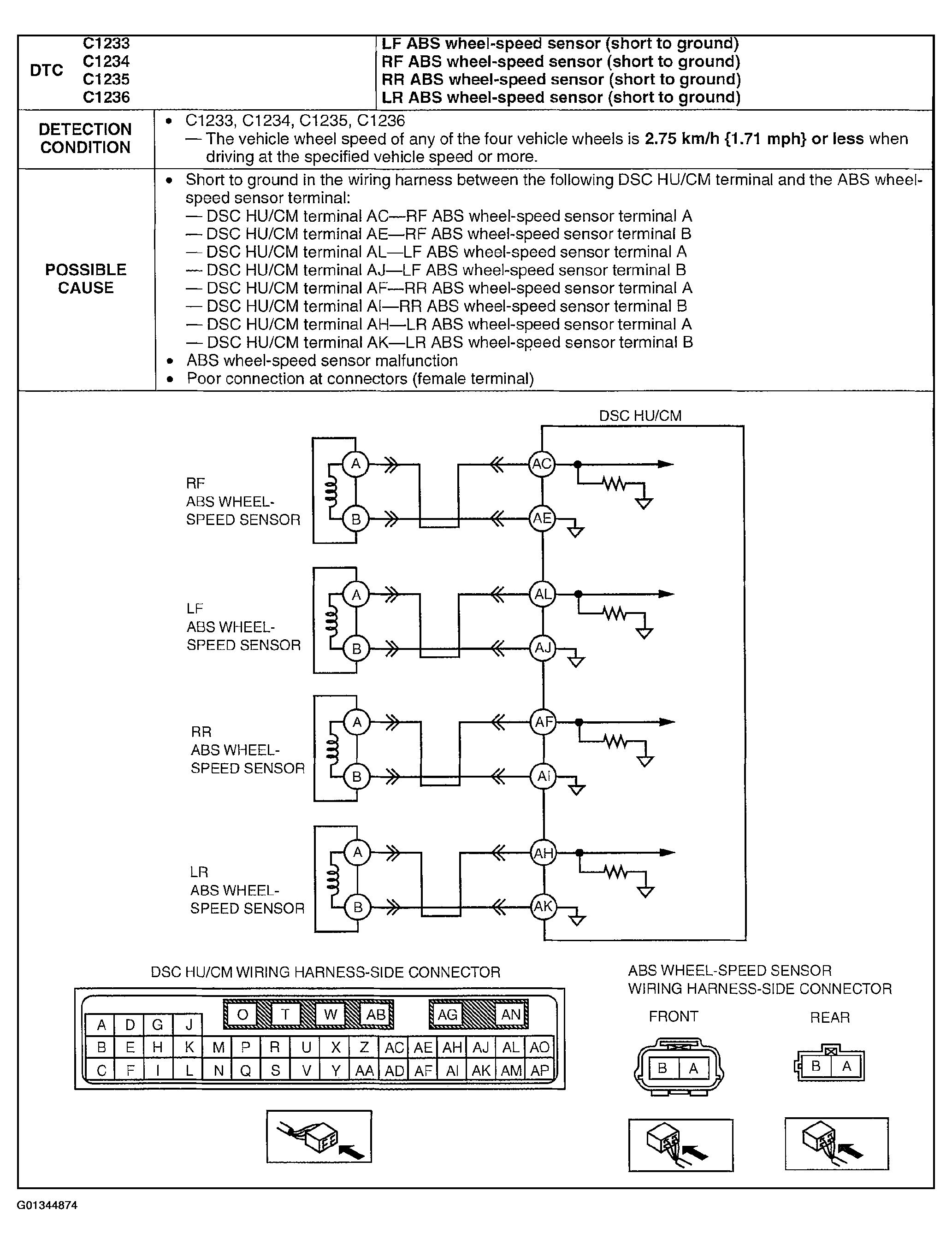

Fig 1: DTC C1233, C1234, C1235, C1236 [DYNAMIC STABILITY CONTROL]

G01344874

Courtesy of MAZDA MOTORS CORP.
