On-Board Diagnostic
>>
DTC B1318: Power Supply
>>
Diagnostic Procedure
Diagnostic Procedure
Fig 1: DTC B1318: Diagnostic Procedure (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

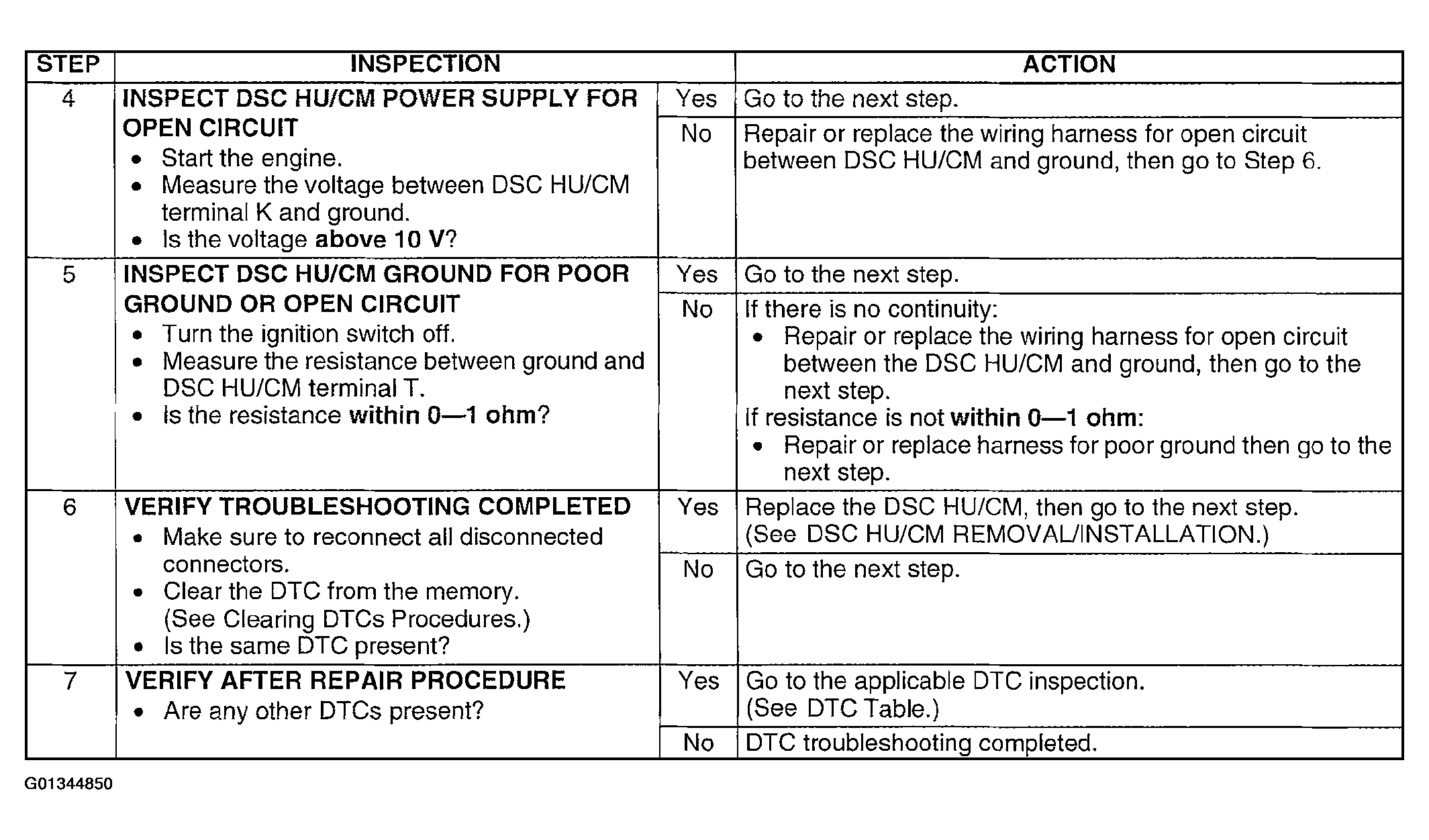

Fig 2: DTC B1318: Diagnostic Procedure (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
