DTC C1145, C1155, C1165 & C1175: Abs Wheel-Speed Sensor: Notes

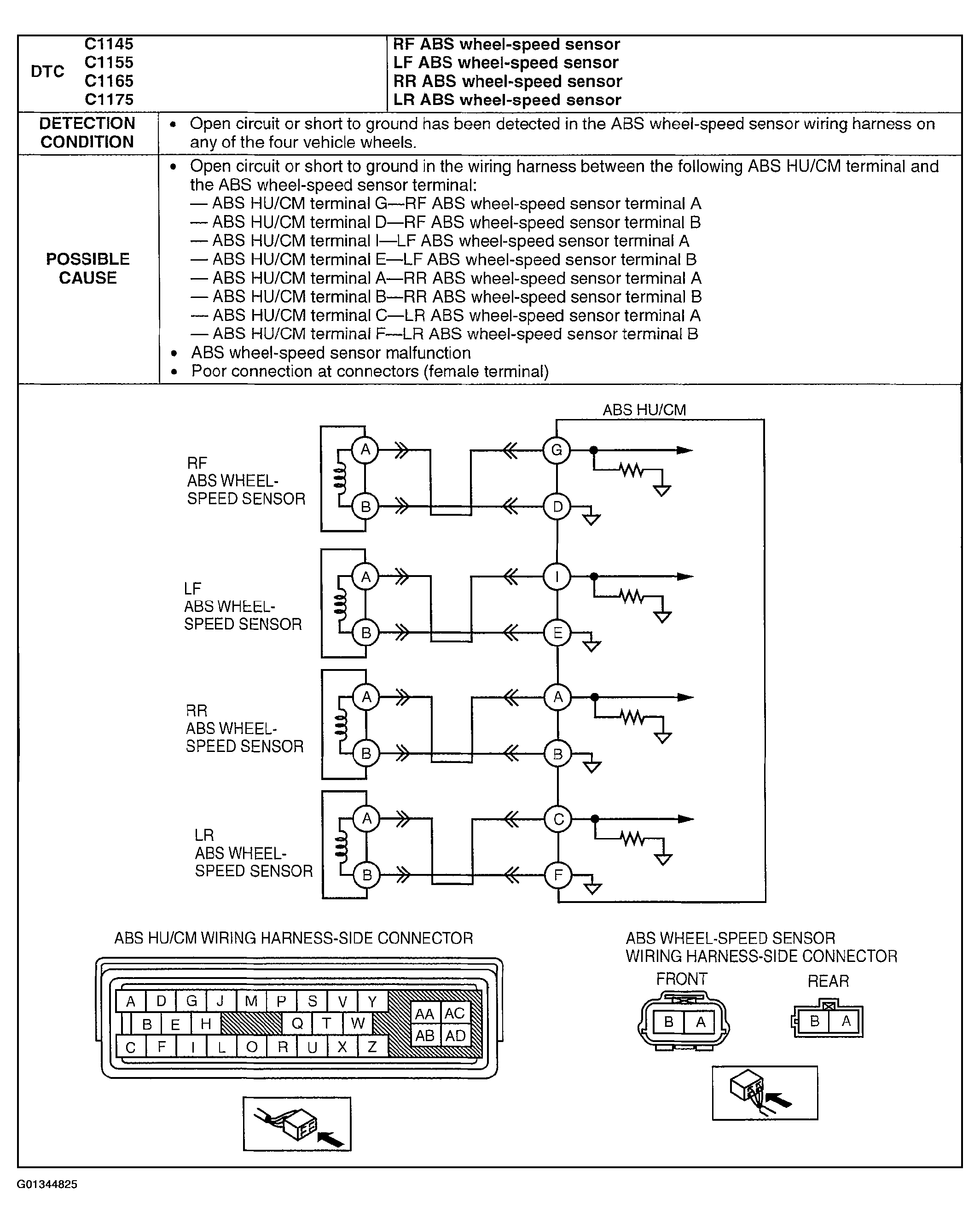

Fig 1: DTC C1145, C1155, C1165, C1175: Detection Condition & Possible Cause

G01344825

Courtesy of MAZDA MOTORS CORP.
