Diagnostic Procedure

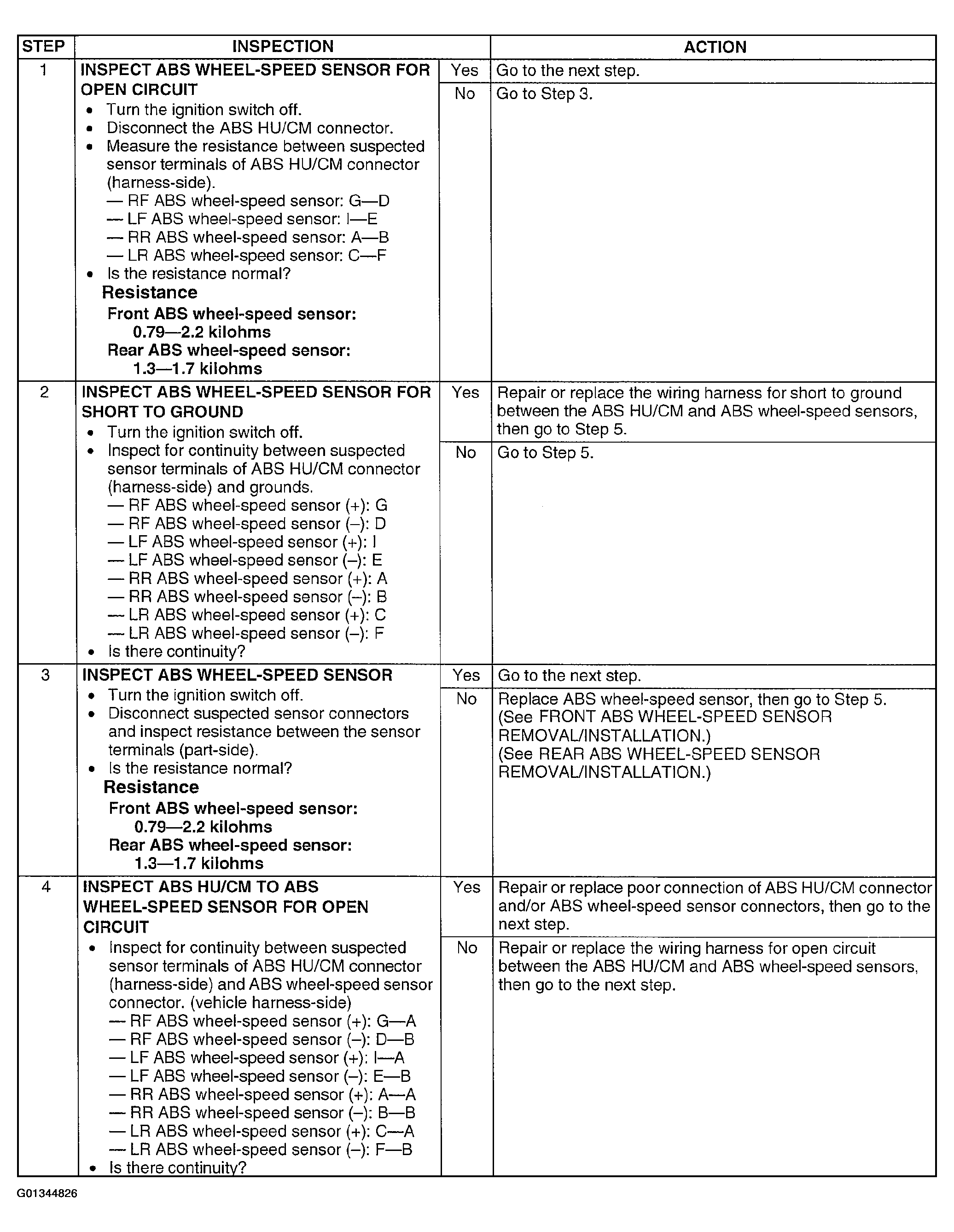

Fig 1: DTC C1145, C1155, C1165, C1175: Diagnostic Procedure (1 Of 2)
G01344826Courtesy of MAZDA MOTORS CORP.

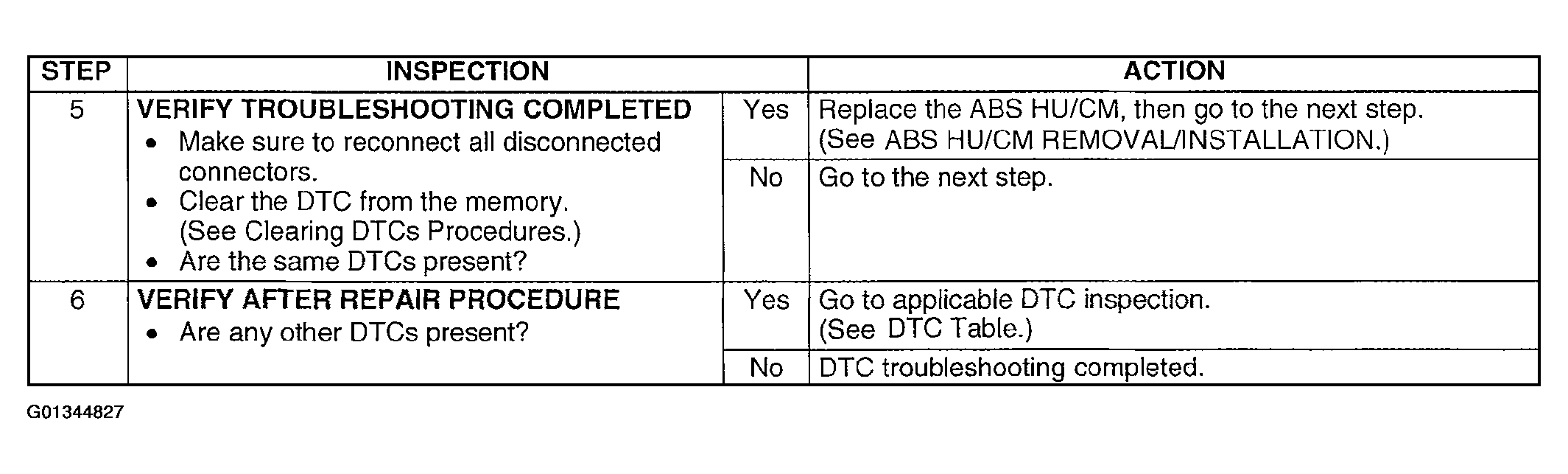

Fig 2: DTC C1145, C1155, C1165, C1175: Diagnostic Procedure (2 Of 2)
G01344827Courtesy of MAZDA MOTORS CORP.
