DTC C1140: Abs HU/Cm (Pump)
>>
Diagnostic Procedure
Diagnostic Procedure

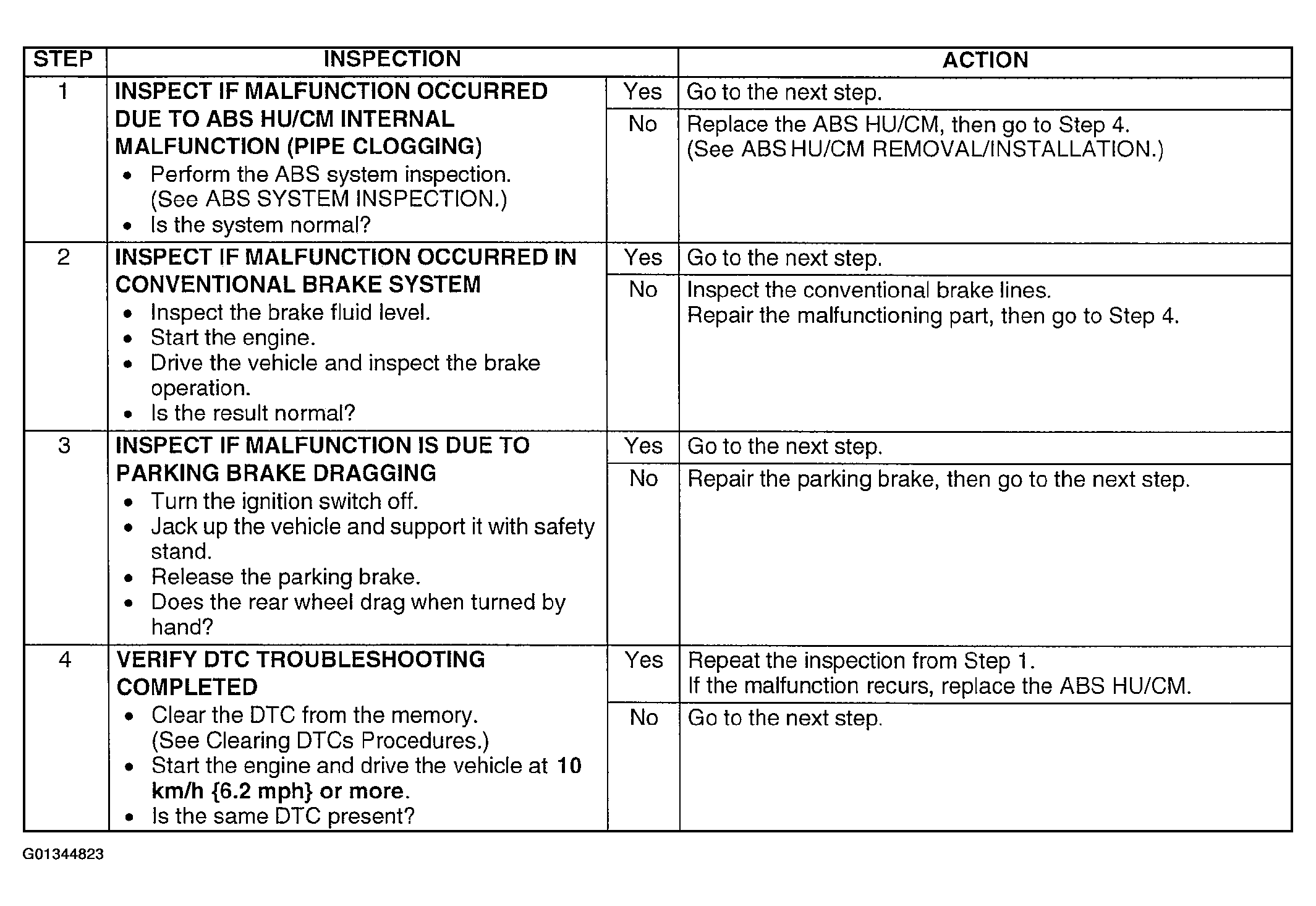

Fig 1: DTC C1140: Diagnostic Procedure (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

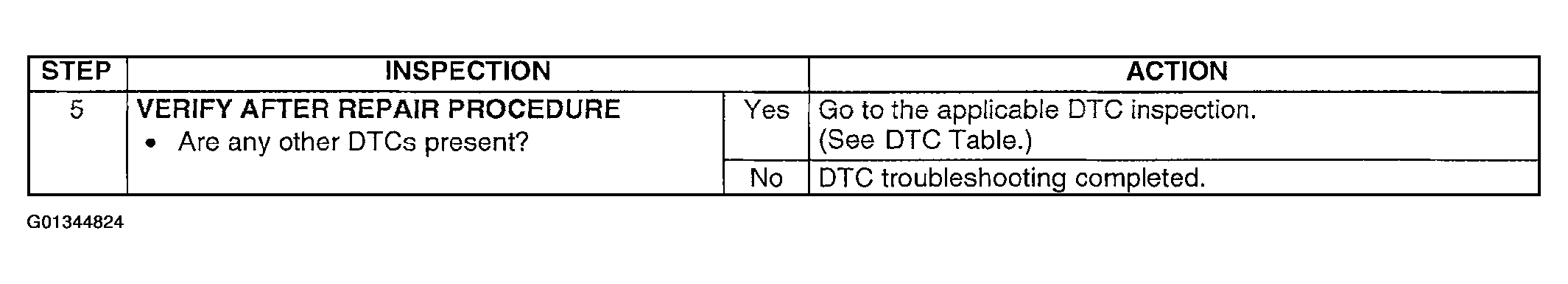

Fig 2: DTC C1140: Diagnostic Procedure (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
