DTC C1095 & C1096: Pump Motor, Motor Relay
>>
Diagnostic Procedure
Diagnostic Procedure

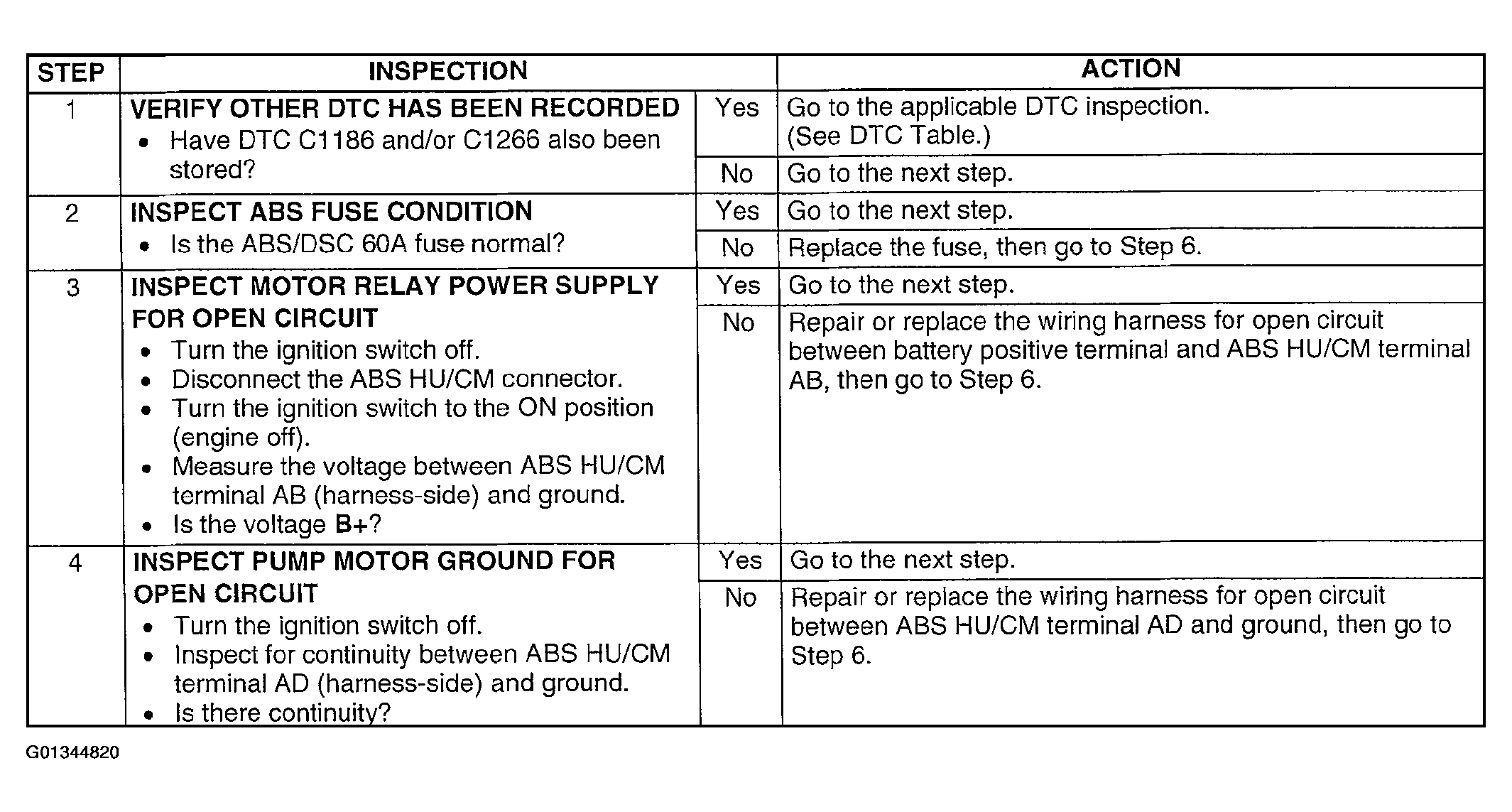

Fig 1: DTC C1095 & C1096: Diagnostic Procedure (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

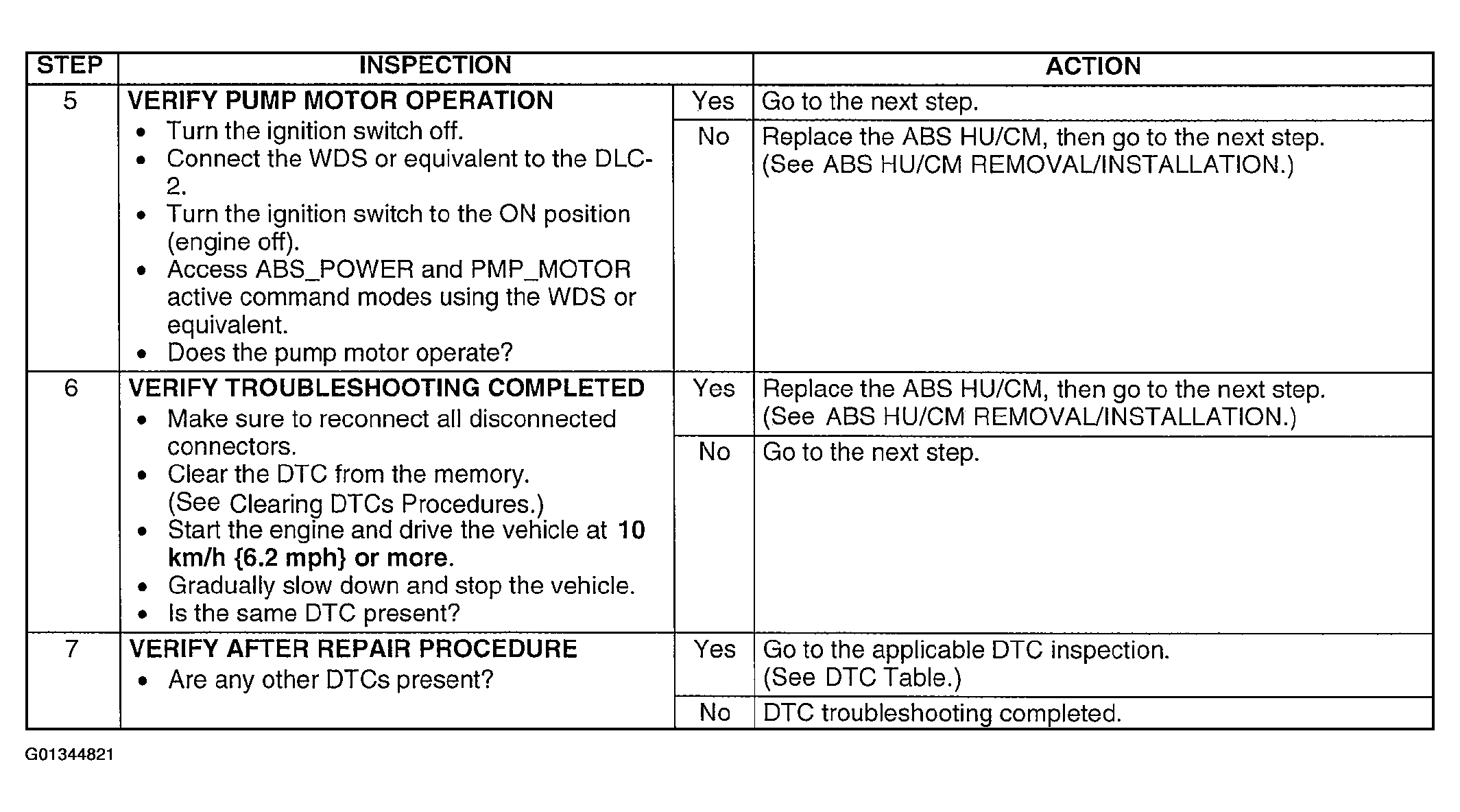

Fig 2: DTC C1095 & C1096: Diagnostic Procedure (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
