Inspection of Diagnostic Trouble Codes (DTC)

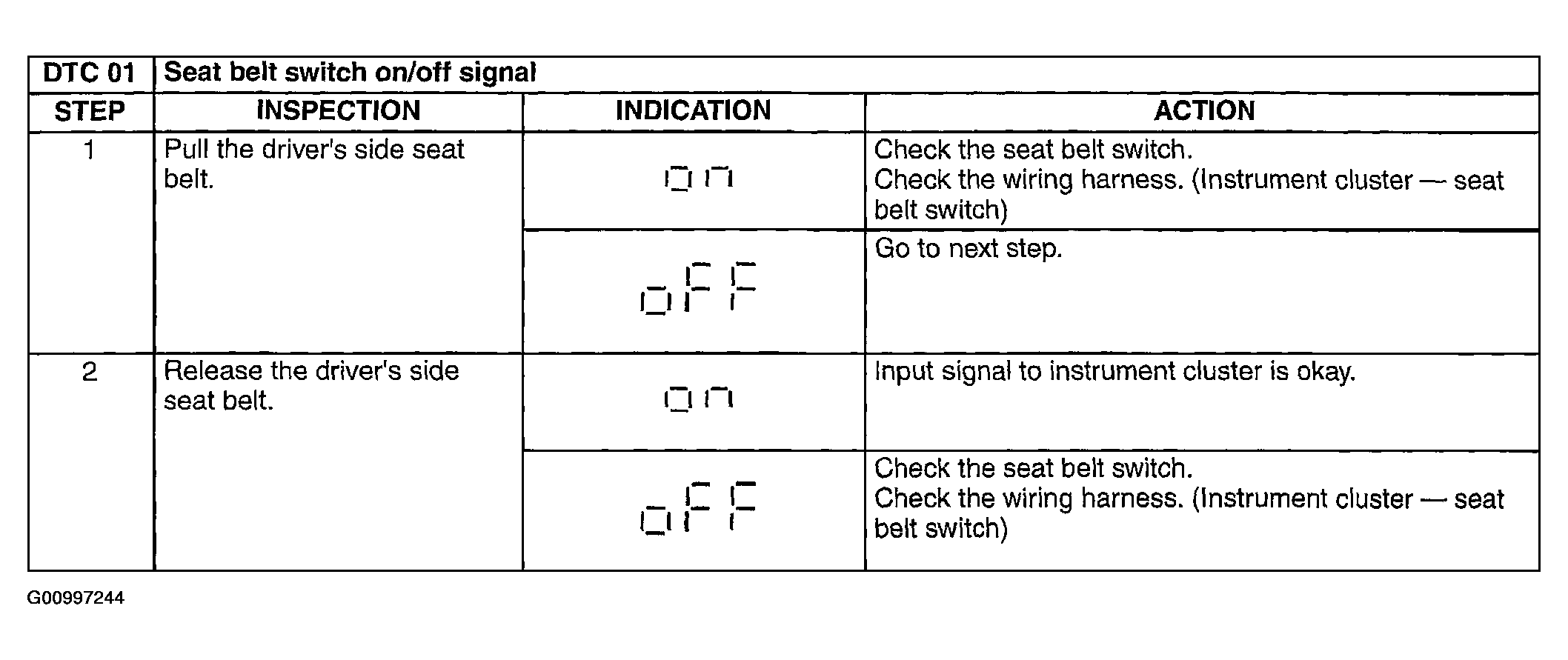

Fig 1: Diagnostic Trouble Code (DTC 01) Inspection Table
G00997244Courtesy of MAZDA MOTORS CORP.

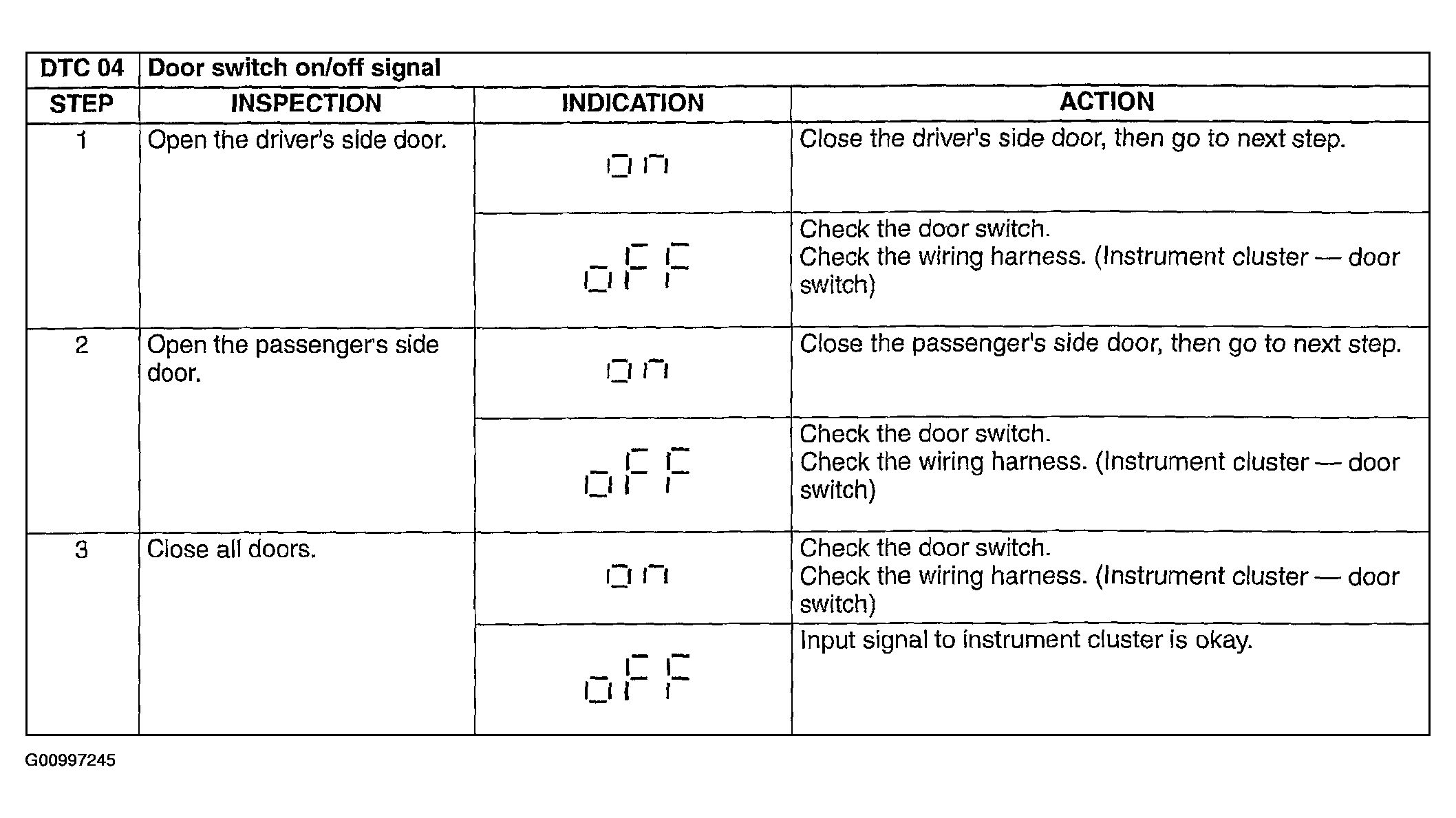

Fig 2: Diagnostic Trouble Code (DTC 04) Inspection Table
G00997245Courtesy of MAZDA MOTORS CORP.

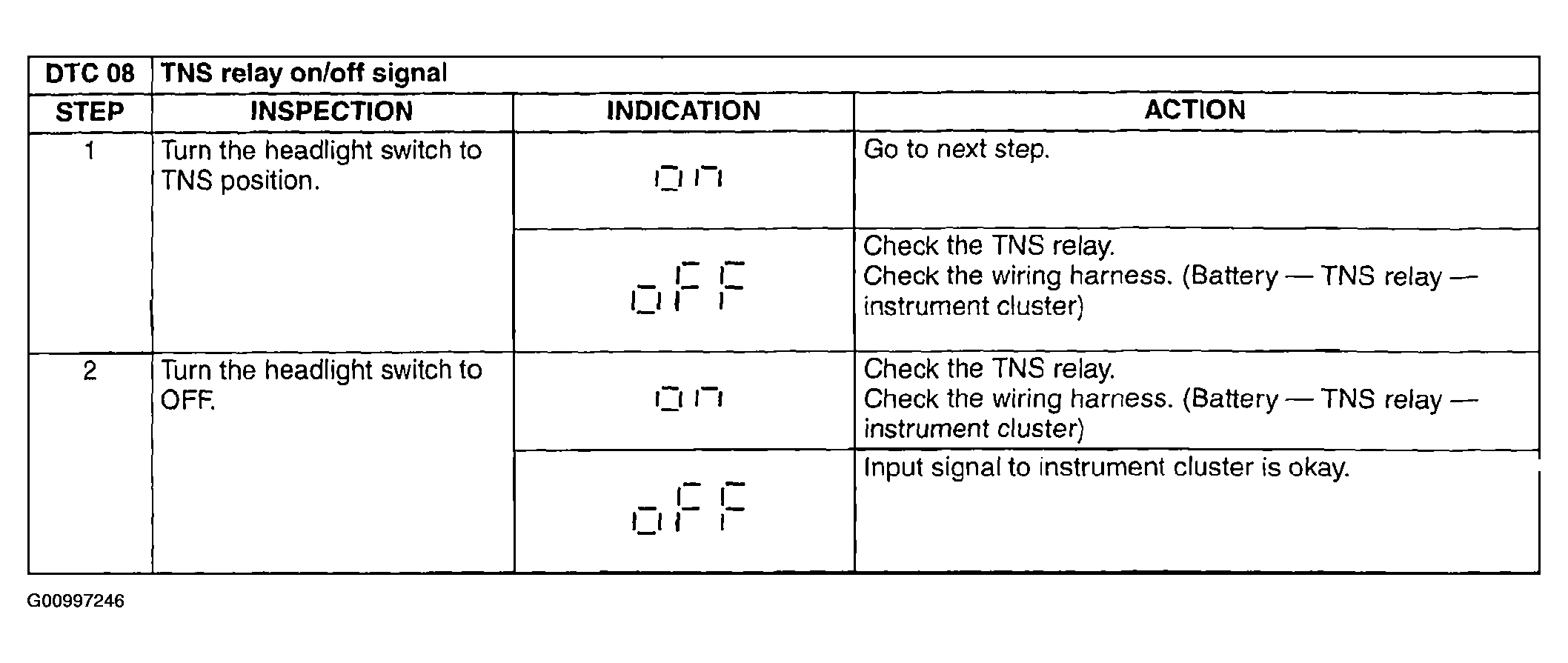

Fig 3: Diagnostic Trouble Code (DTC 08) Inspection Table
G00997246Courtesy of MAZDA MOTORS CORP.

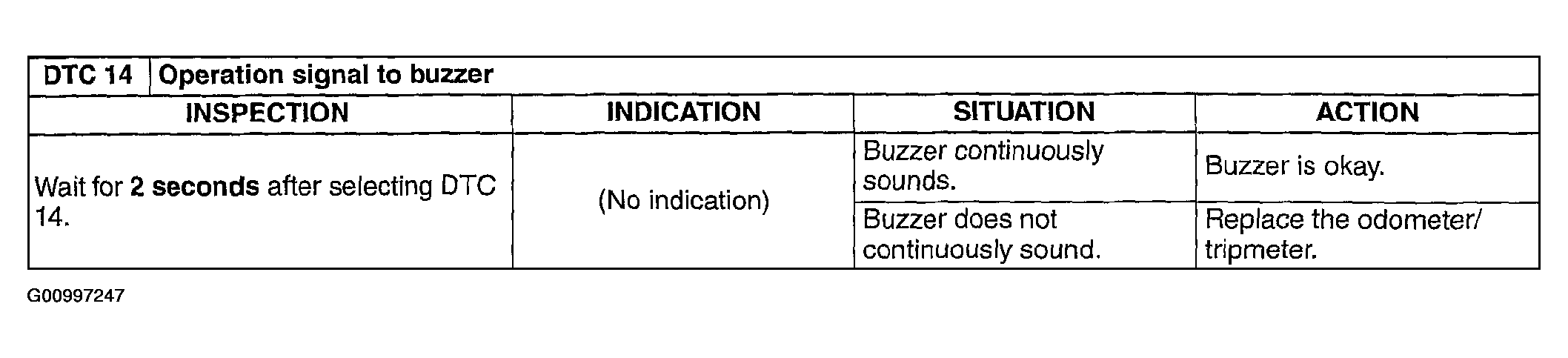

Fig 4: Diagnostic Trouble Code (DTC 14) Inspection Table
G00997247Courtesy of MAZDA MOTORS CORP.

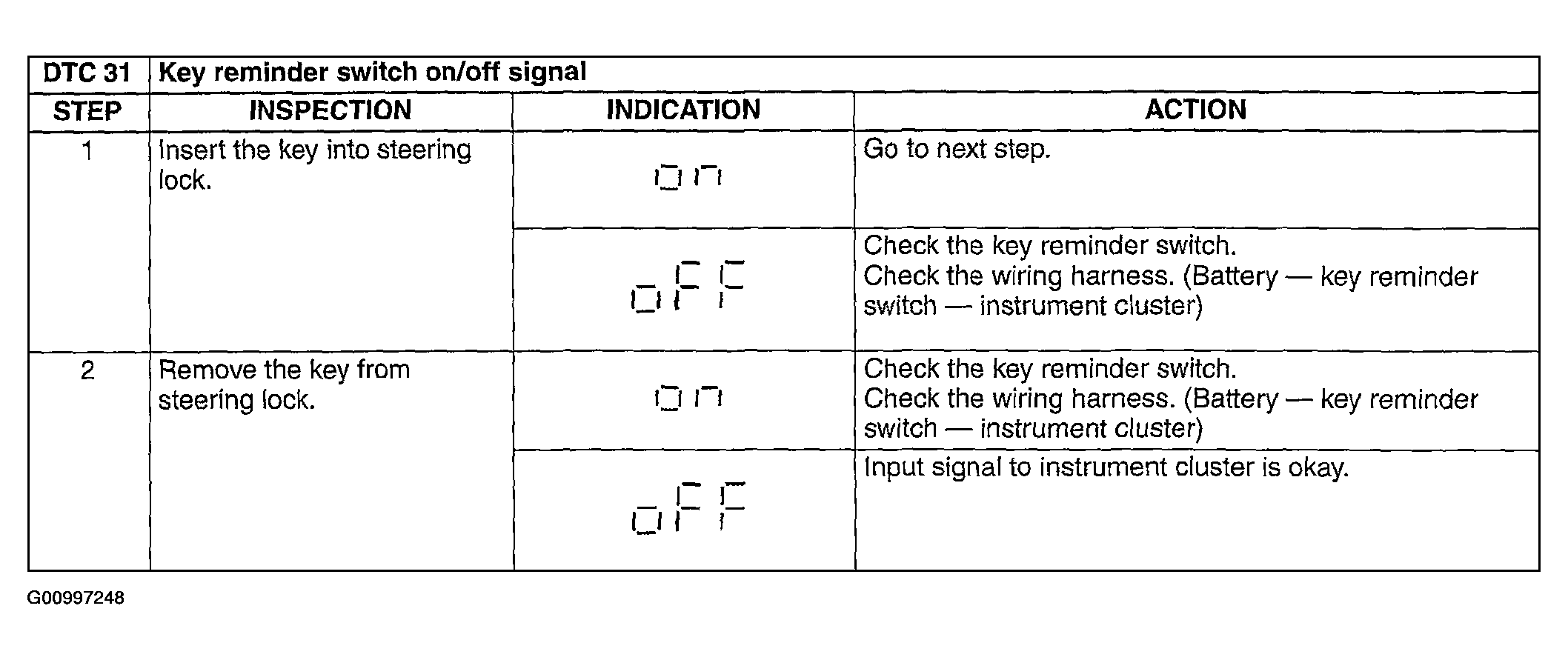

Fig 5: Diagnostic Trouble Code (DTC 31) Inspection Table
G00997248Courtesy of MAZDA MOTORS CORP.
