Fuel Gauge
Remove the fuel gauge. (See
INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY
.)
Measure the resistance between the fuel gauge terminals using an ohmmeter.
If not as specified, replace the fuel gauge. (See
INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY
.)

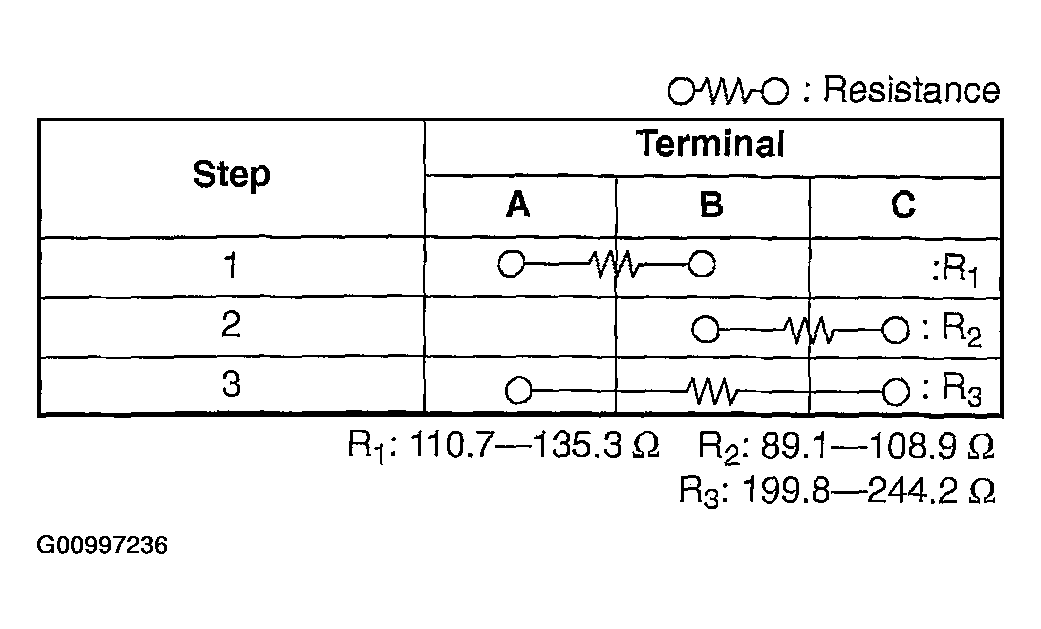

Fig 1: Fuel Gauge Resistance Table
Courtesy of MAZDA MOTORS CORP.

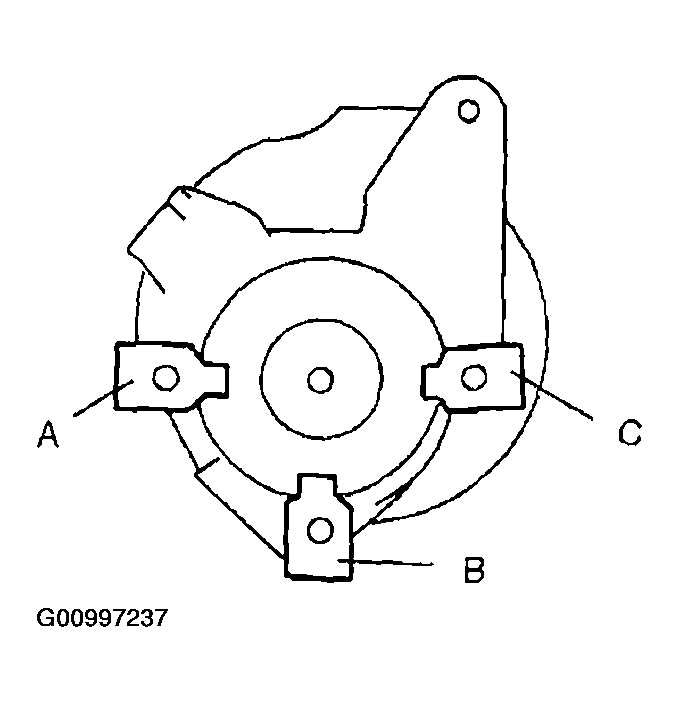

Fig 2: Identifying Fuel Gauge Connector Terminals
Courtesy of MAZDA MOTORS CORP.
