DTC P0443: Evaporative Emission (EVAP) Canister Purge Solenoid Malfunction

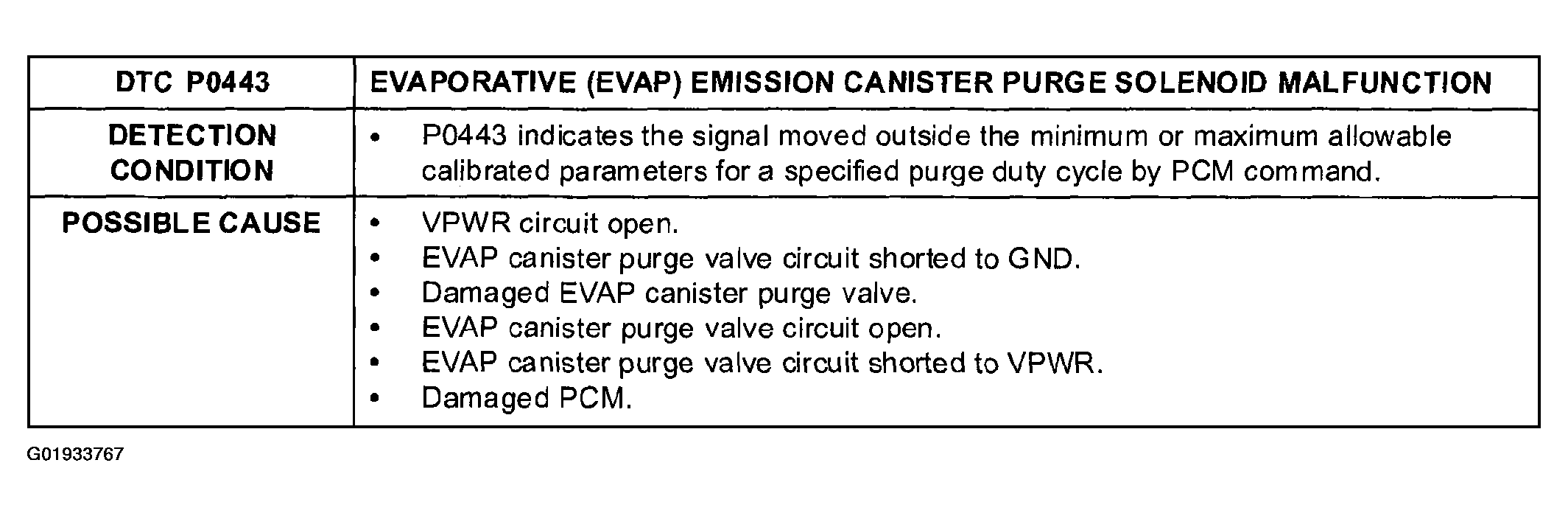

Fig 1: Evaporative Emission (EVAP) Canister Purge Solenoid Malfunction Detection Condition

Courtesy of MAZDA MOTORS CORP.

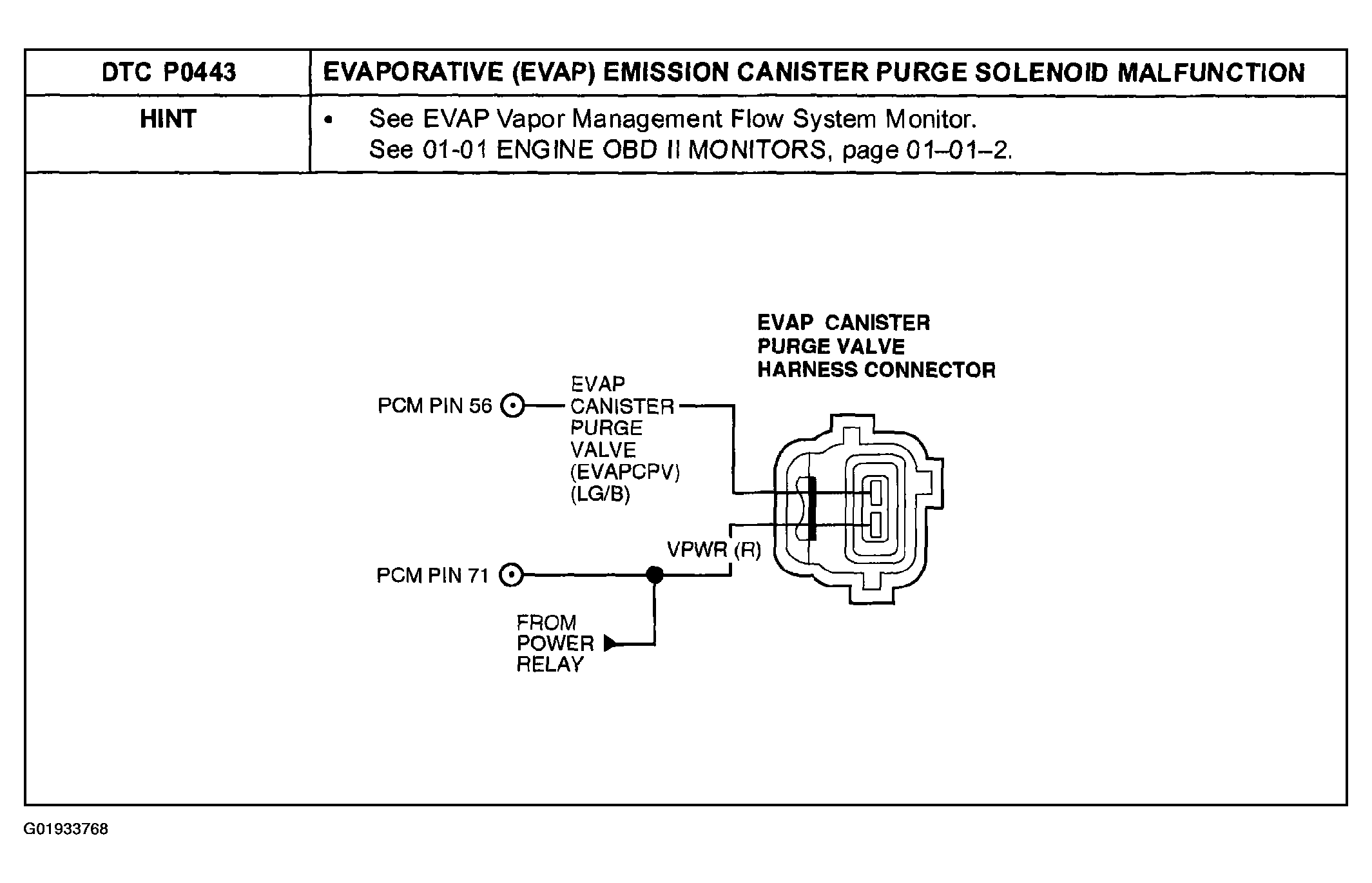

Fig 2: EVAP Canister Purge Solenoid Malfunction Hint

Courtesy of MAZDA MOTORS CORP.

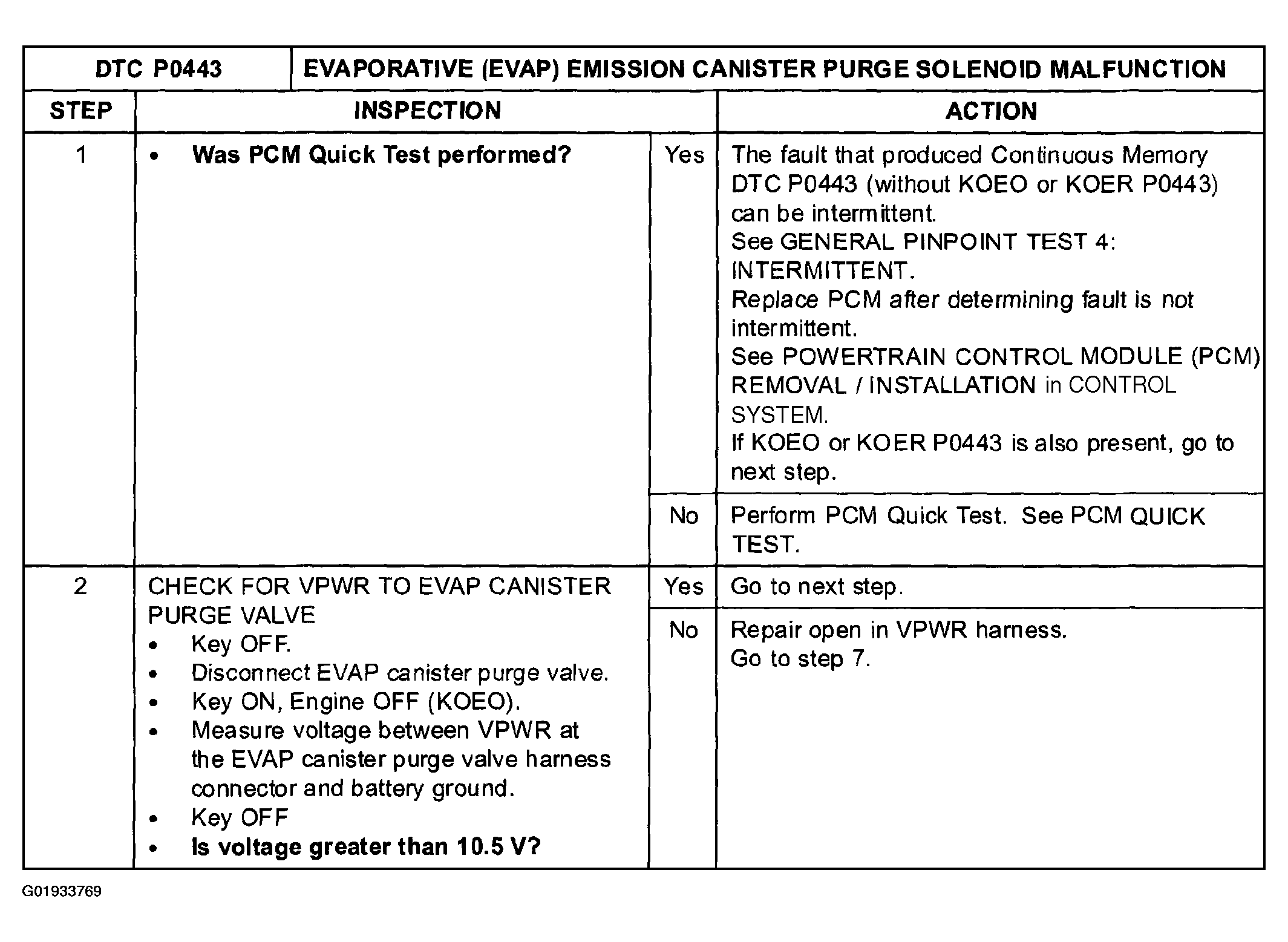

Fig 3: Diagnostic Procedure (DTC P0443) (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

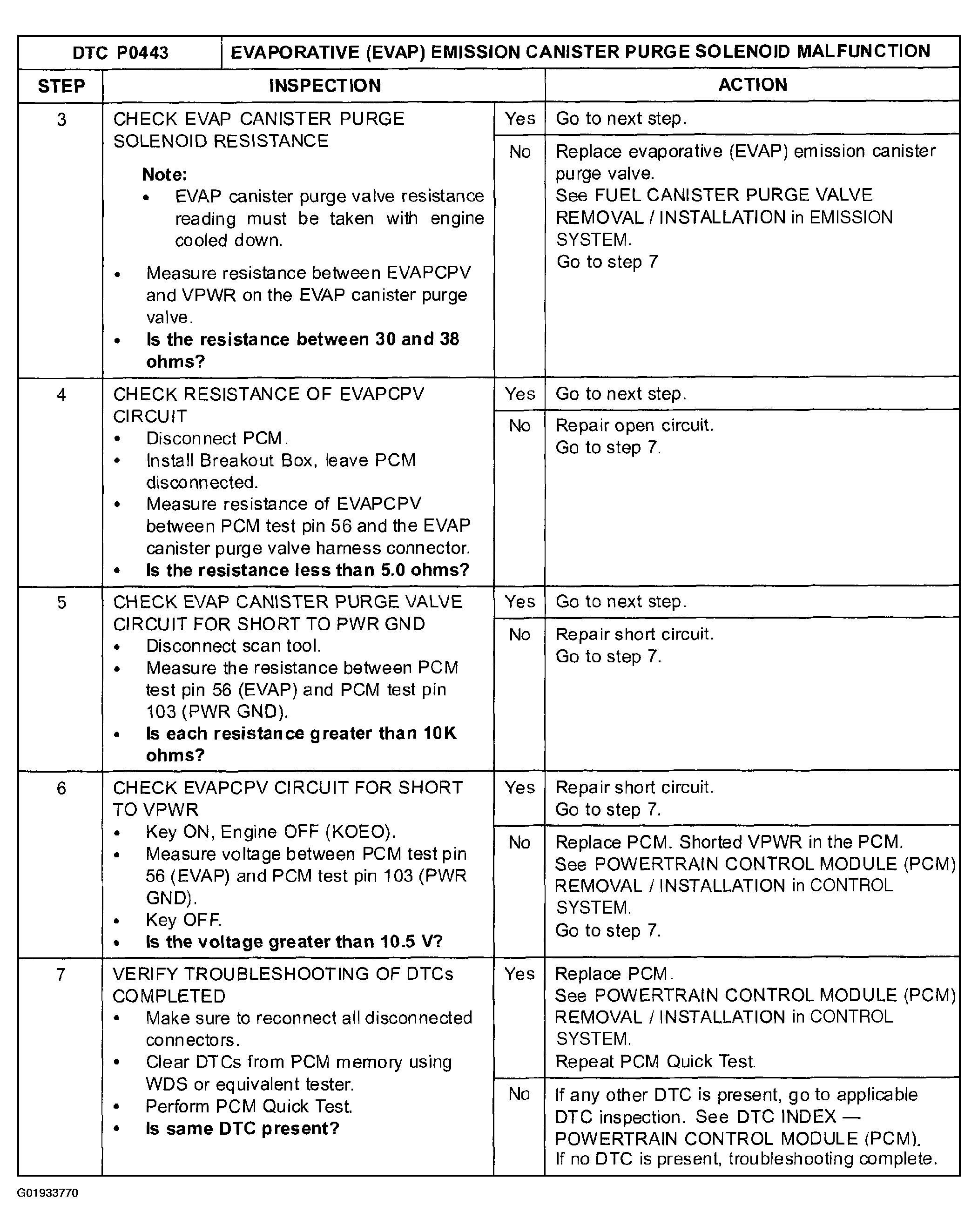

Fig 4: Diagnostic Procedure (DTC P0443) (Steps 3-7)

Courtesy of MAZDA MOTORS CORP.
