DTC P0351, P0352, P0353 & P0354: Integrated Ignition Coil 1, 2, 3, Or 4 Failure

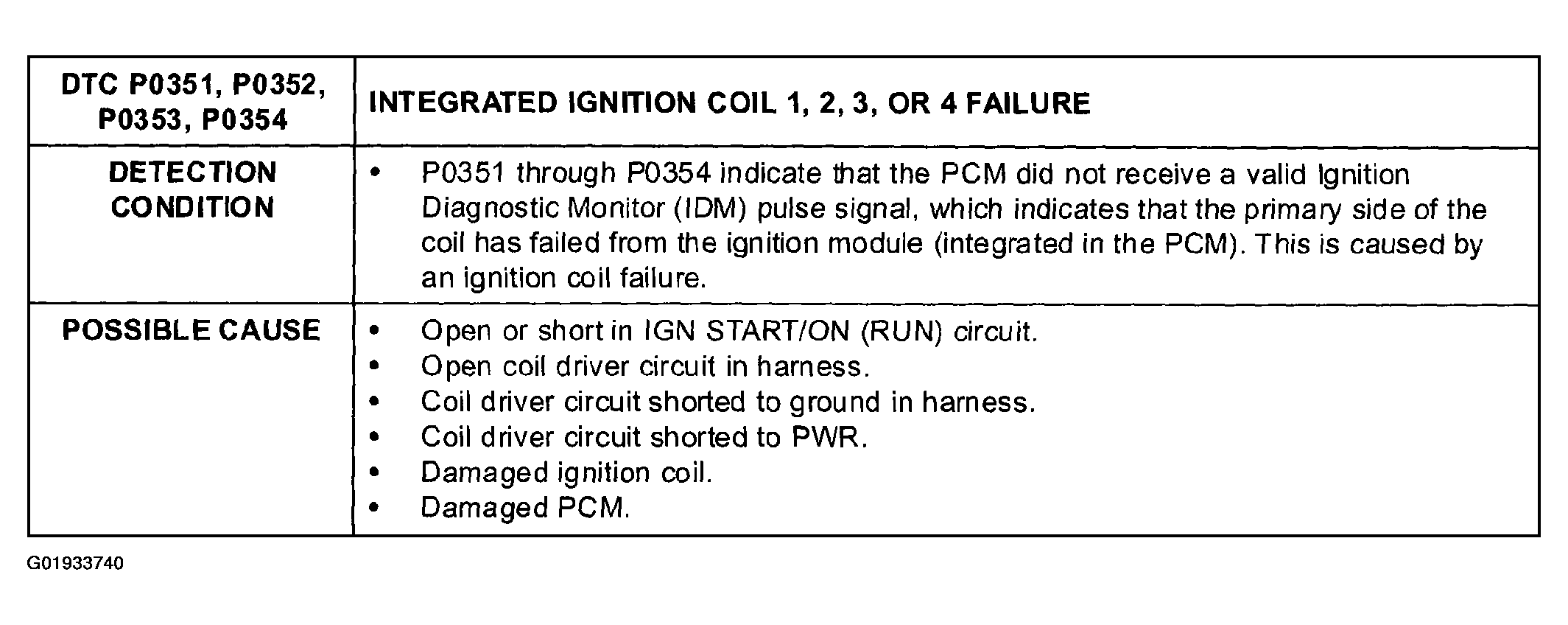

Fig 1: Integrated Ignition Coil 1, 2, 3, Or 4 Failure Detection Condition

Courtesy of MAZDA MOTORS CORP.

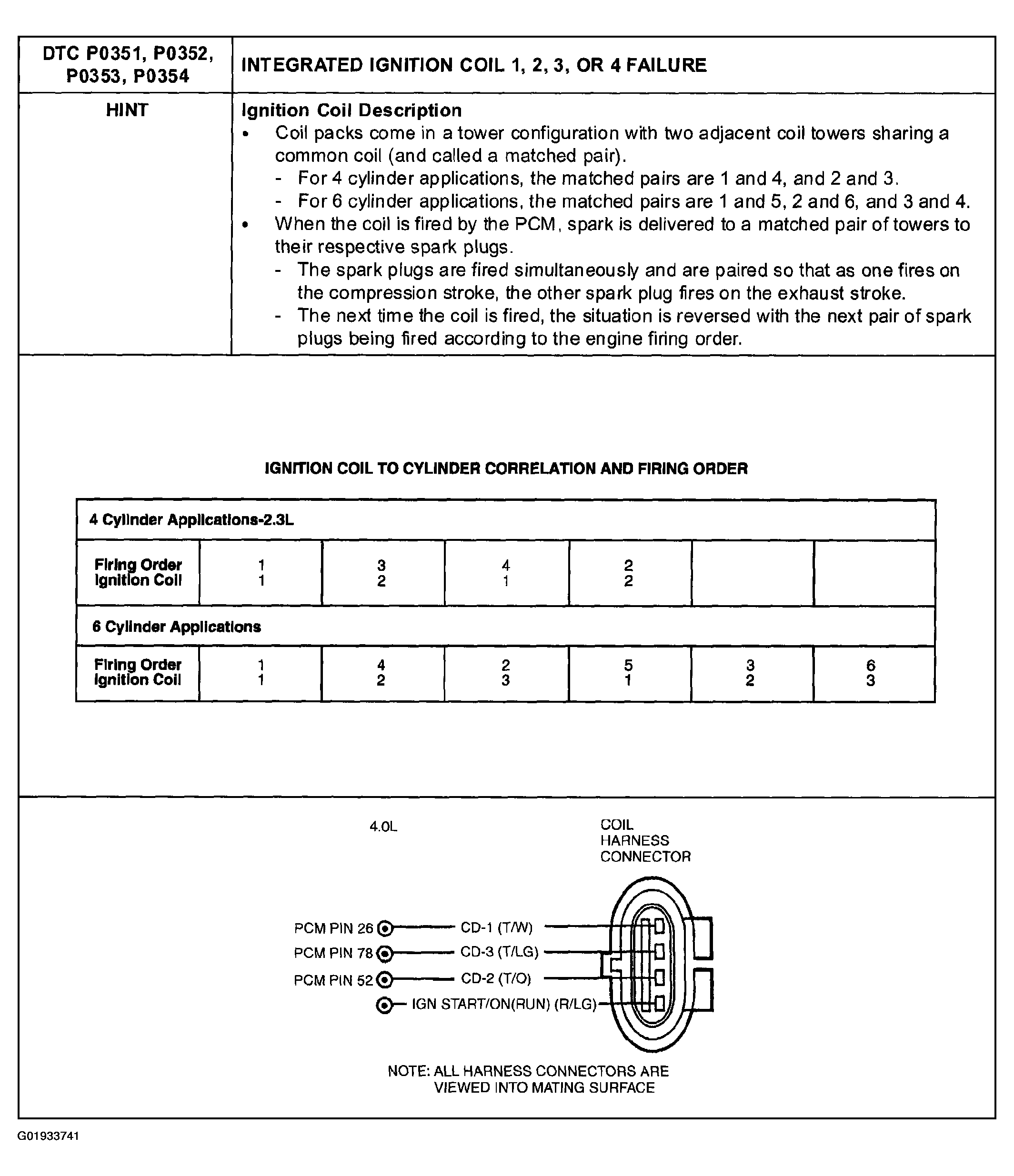

Fig 2: Integrated Ignition Coil 1, 2, 3, Or 4 Failure Hint

Courtesy of MAZDA MOTORS CORP.

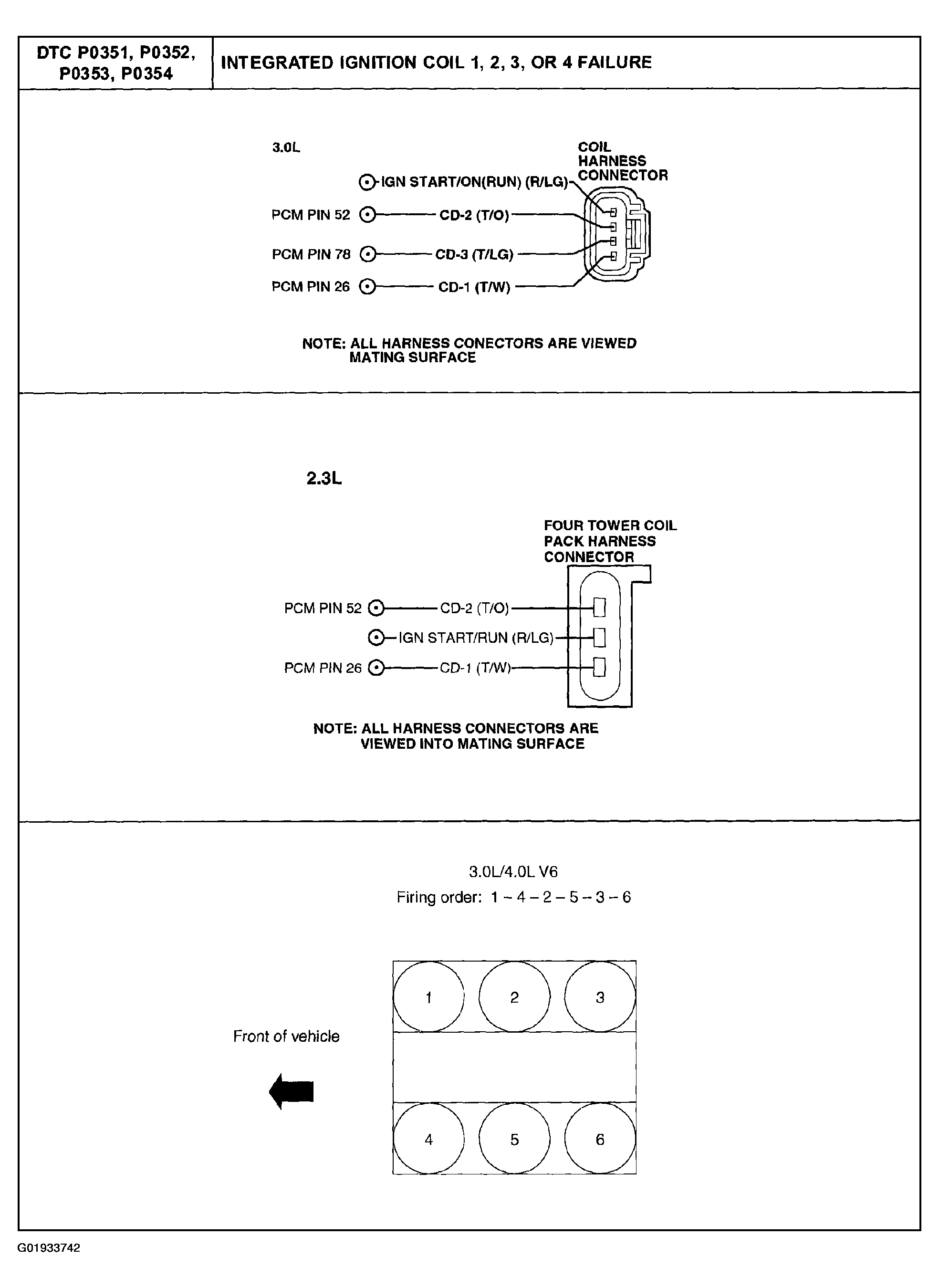

Fig 3: Identifying Integrated Ignition Coil Harness Connector 3.0L And 2.3L

Courtesy of MAZDA MOTORS CORP.

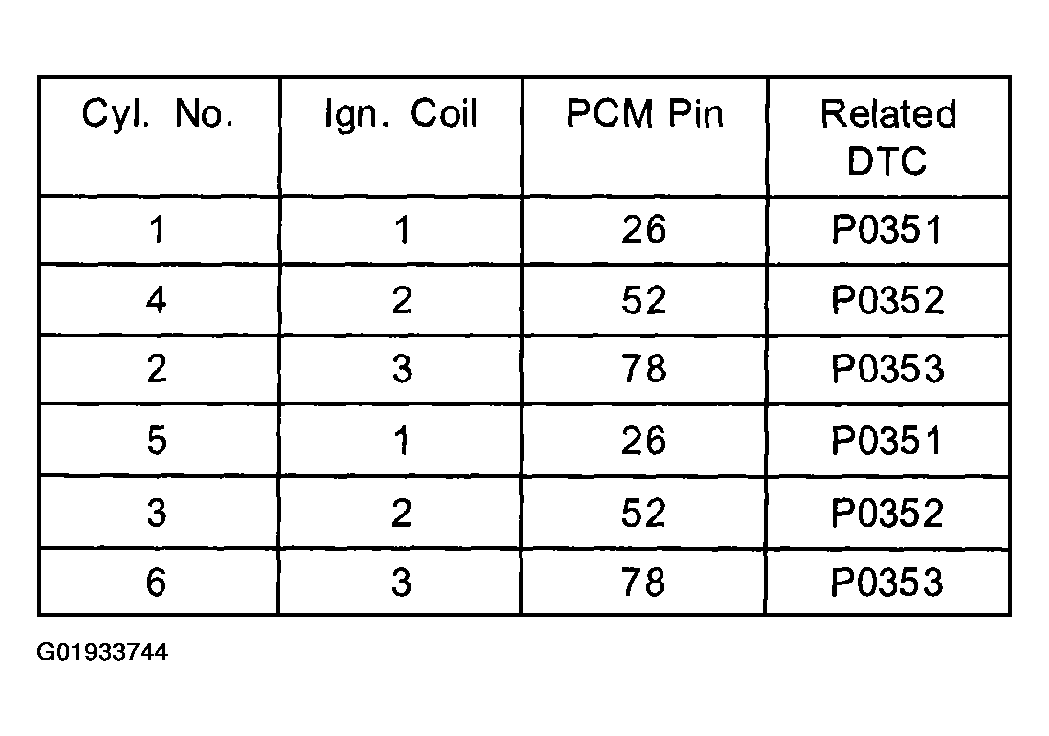

Fig 4: Integrated Ignition Coil 1, 2, 3, Or 4 Failure Related DTC Chart - 2.3L

Courtesy of MAZDA MOTORS CORP.

Fig 5: Integrated Ignition Coil 1, 2, 3, Or 4 Failure Related DTC Chart - 3.0L/4.0L

Courtesy of MAZDA MOTORS CORP.

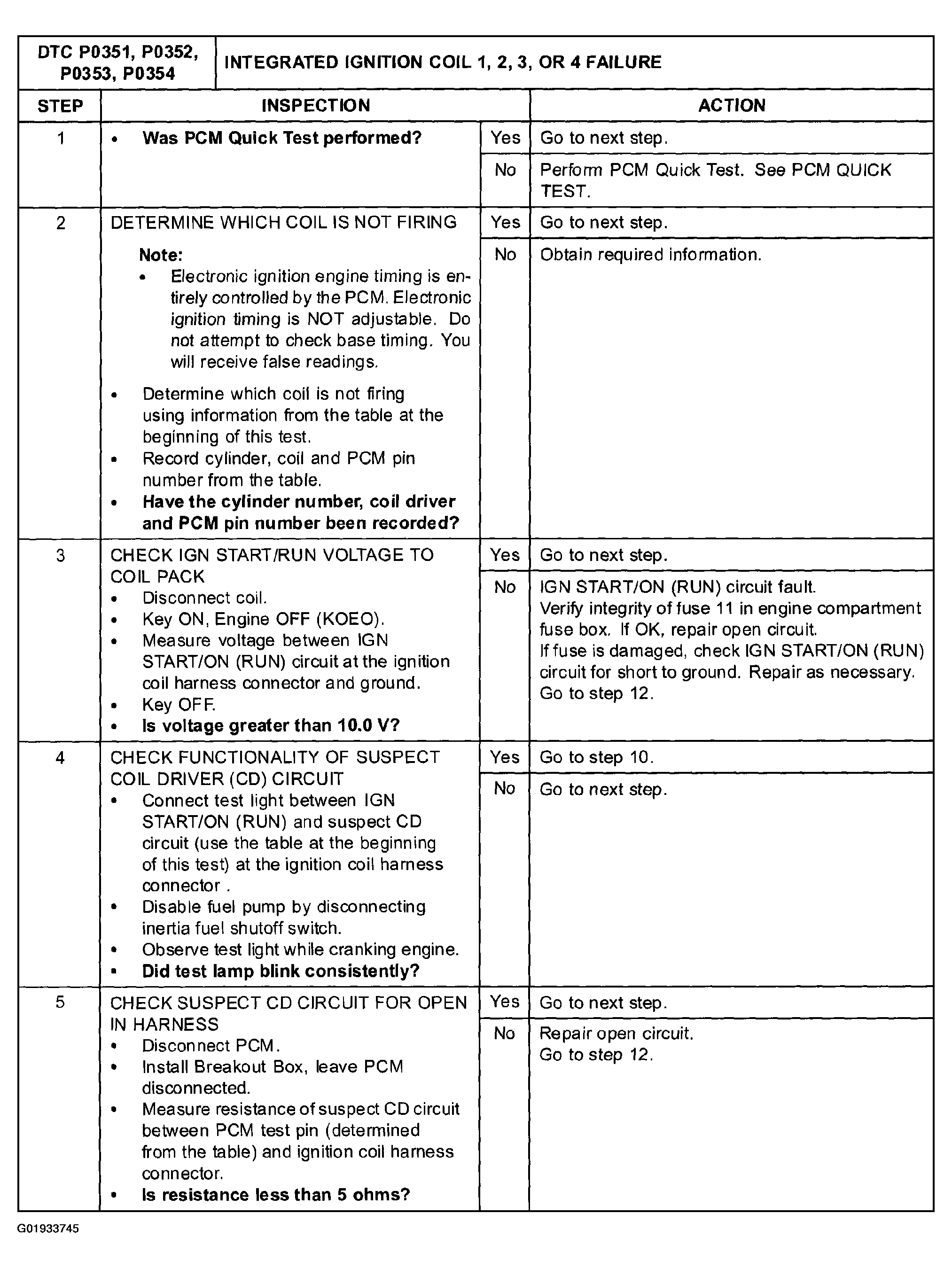

Fig 6: Diagnostic Procedure (DTC P0351, P0352, P0353 & P0354) (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

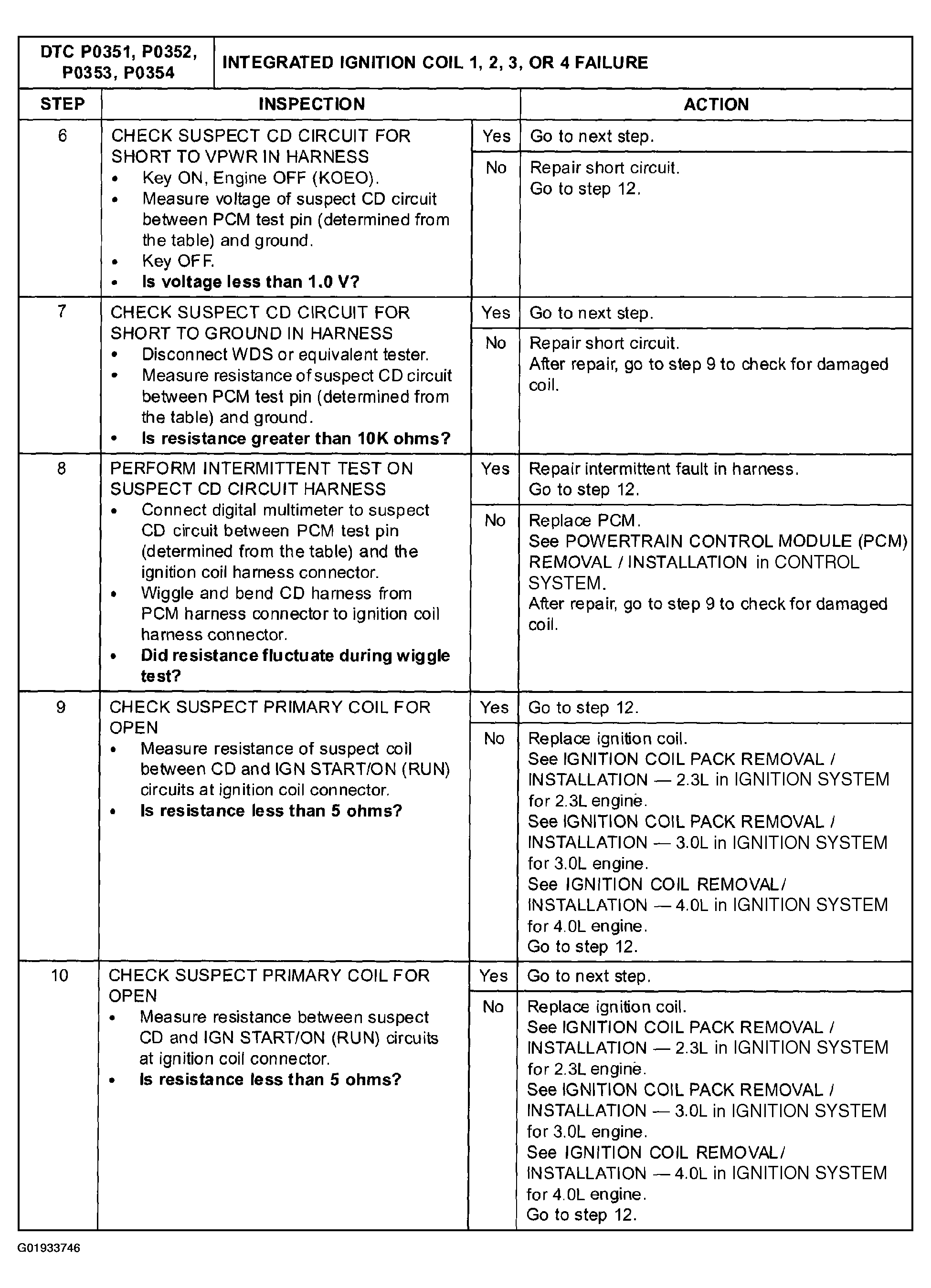

Fig 7: Diagnostic Procedure (DTC P0351, P0352, P0353 & P0354) (Steps 6-10)

Courtesy of MAZDA MOTORS CORP.

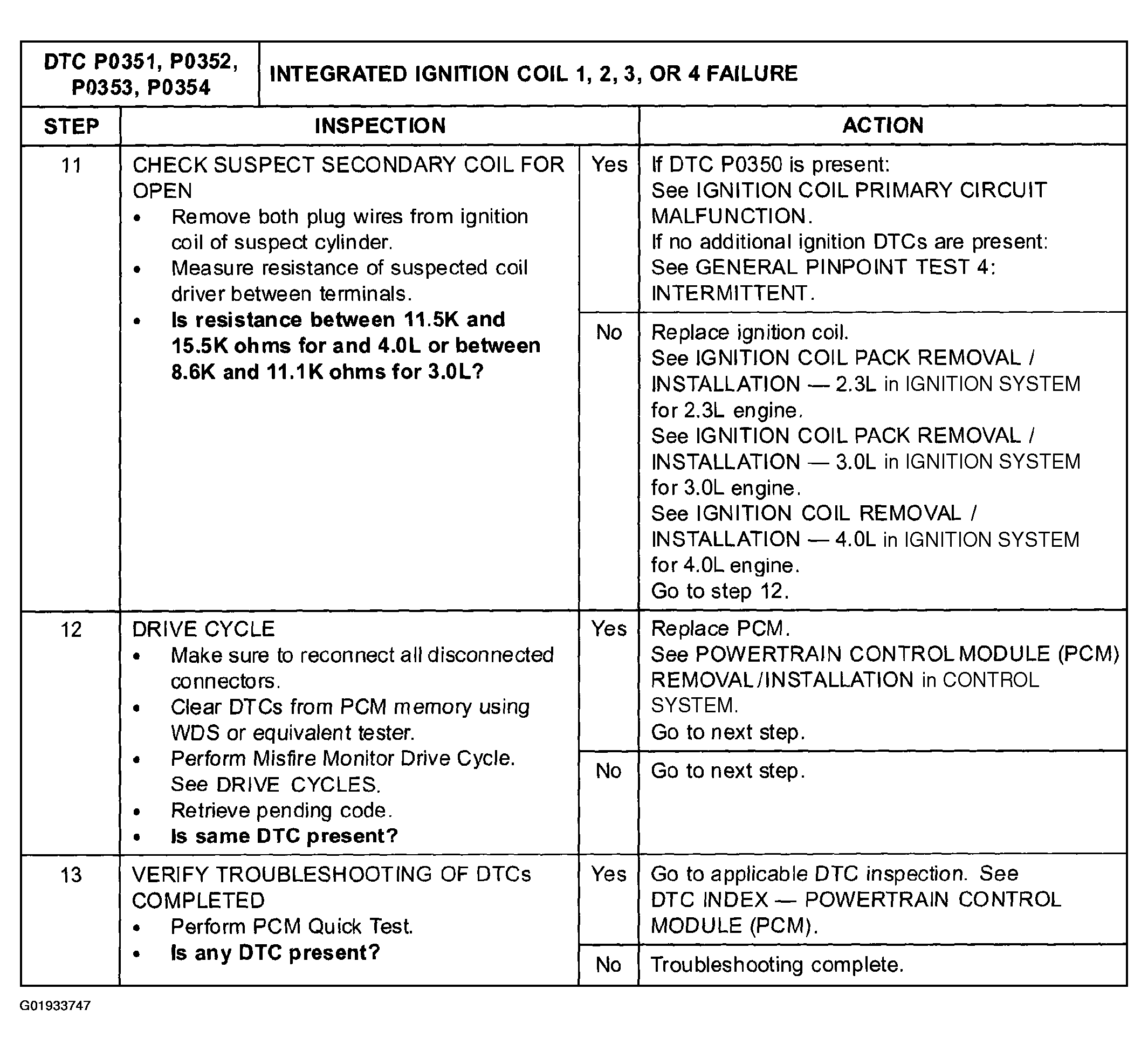

Fig 8: Diagnostic Procedure (DTC P0351, P0352, P0353 & P0354) (Steps 11-13)

Courtesy of MAZDA MOTORS CORP.
