Symptom Troubleshooting Chart - Instrument Cluster
>>
Instrument Cluster Pinpoint Test 4: Inaccurate Speedometer Reading
Instrument Cluster Pinpoint Test 4: Inaccurate Speedometer Reading

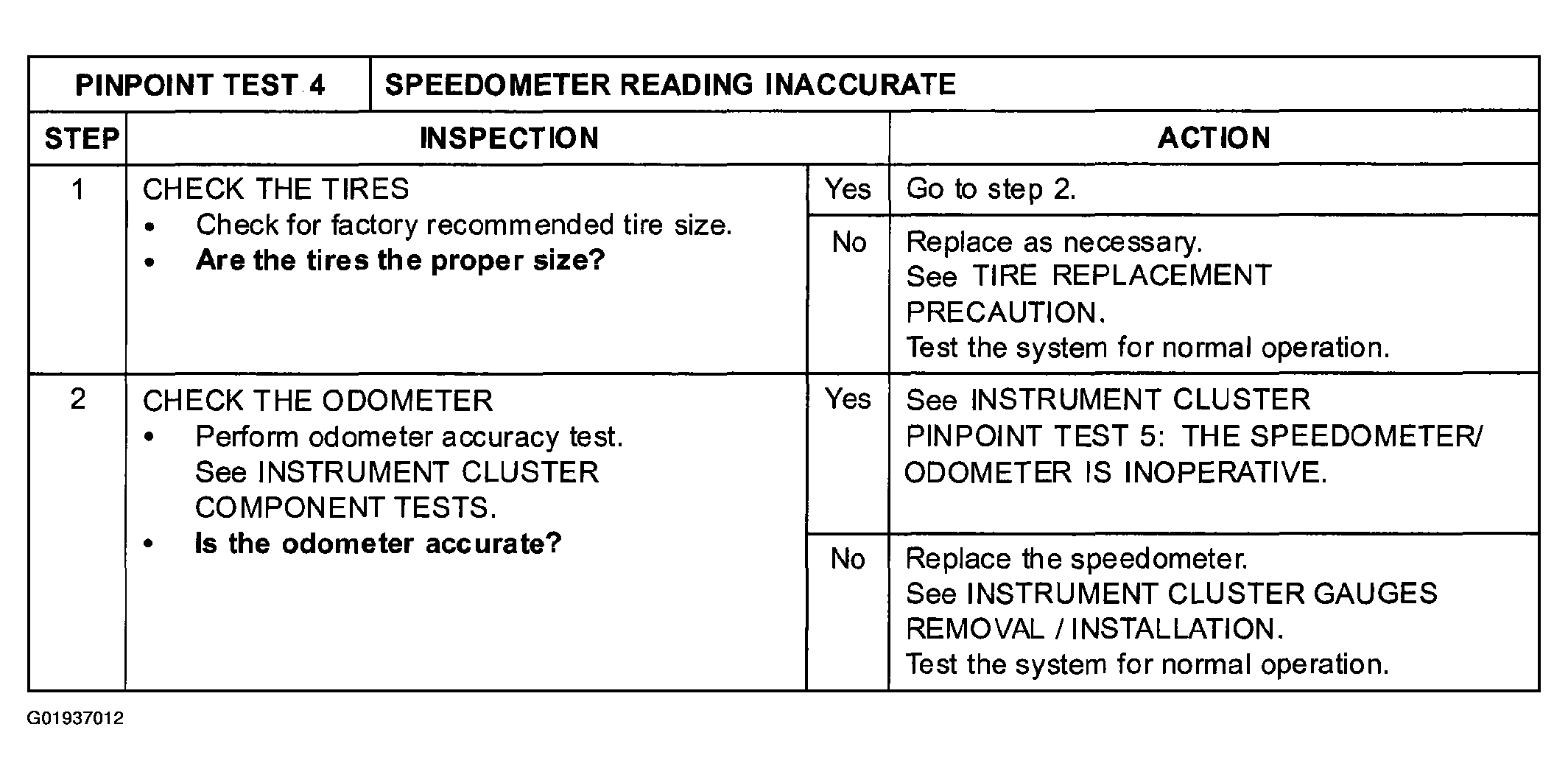

Fig 1: Instrument Cluster Pinpoint Test 4: Inaccurate Speedometer Reading
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
