Instrument Cluster Pinpoint Test 15: Speed Control Indicator Is Never On

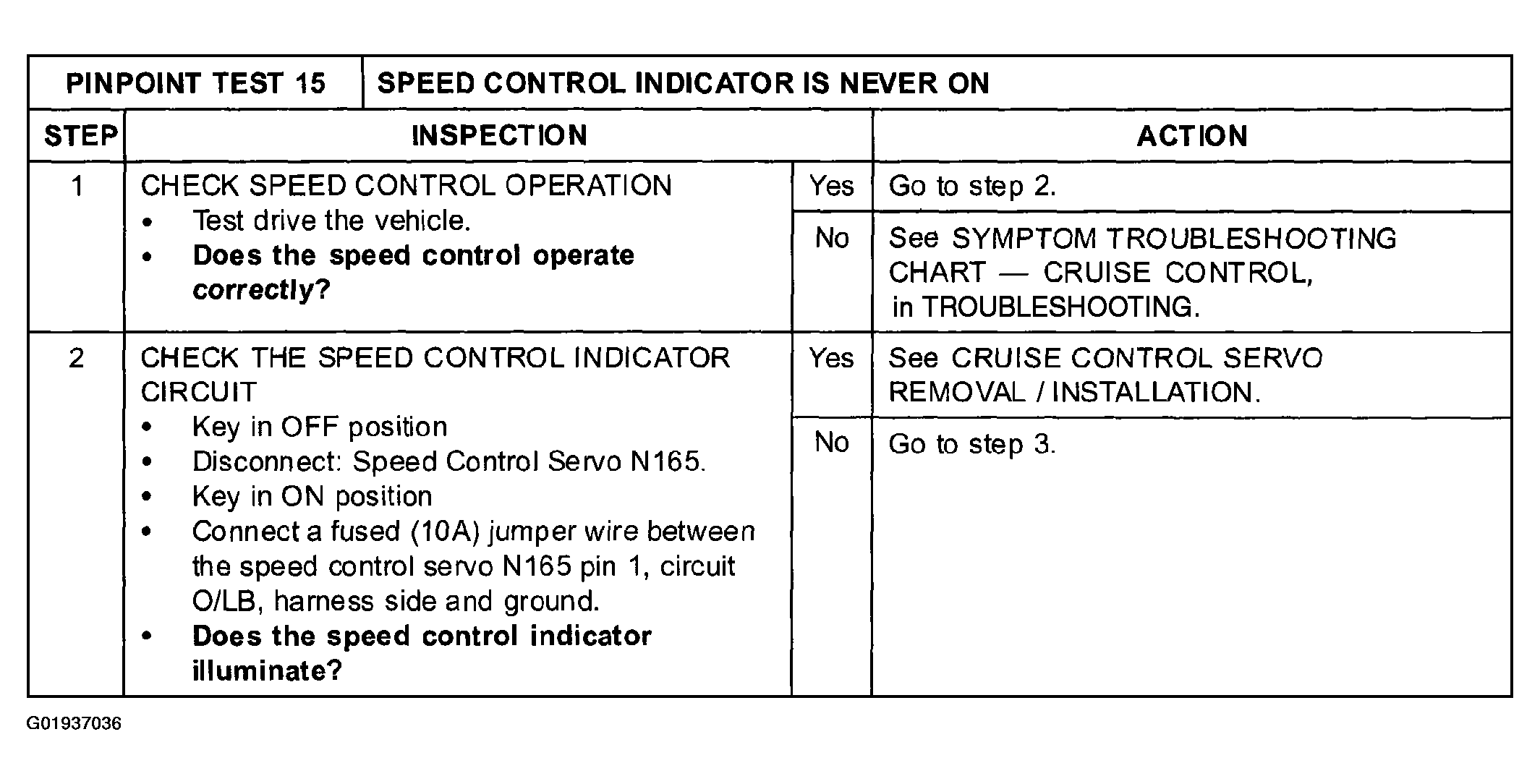

Fig 1: Instrument Cluster Pinpoint Test 15: Speed Control Indicator Is Never On (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

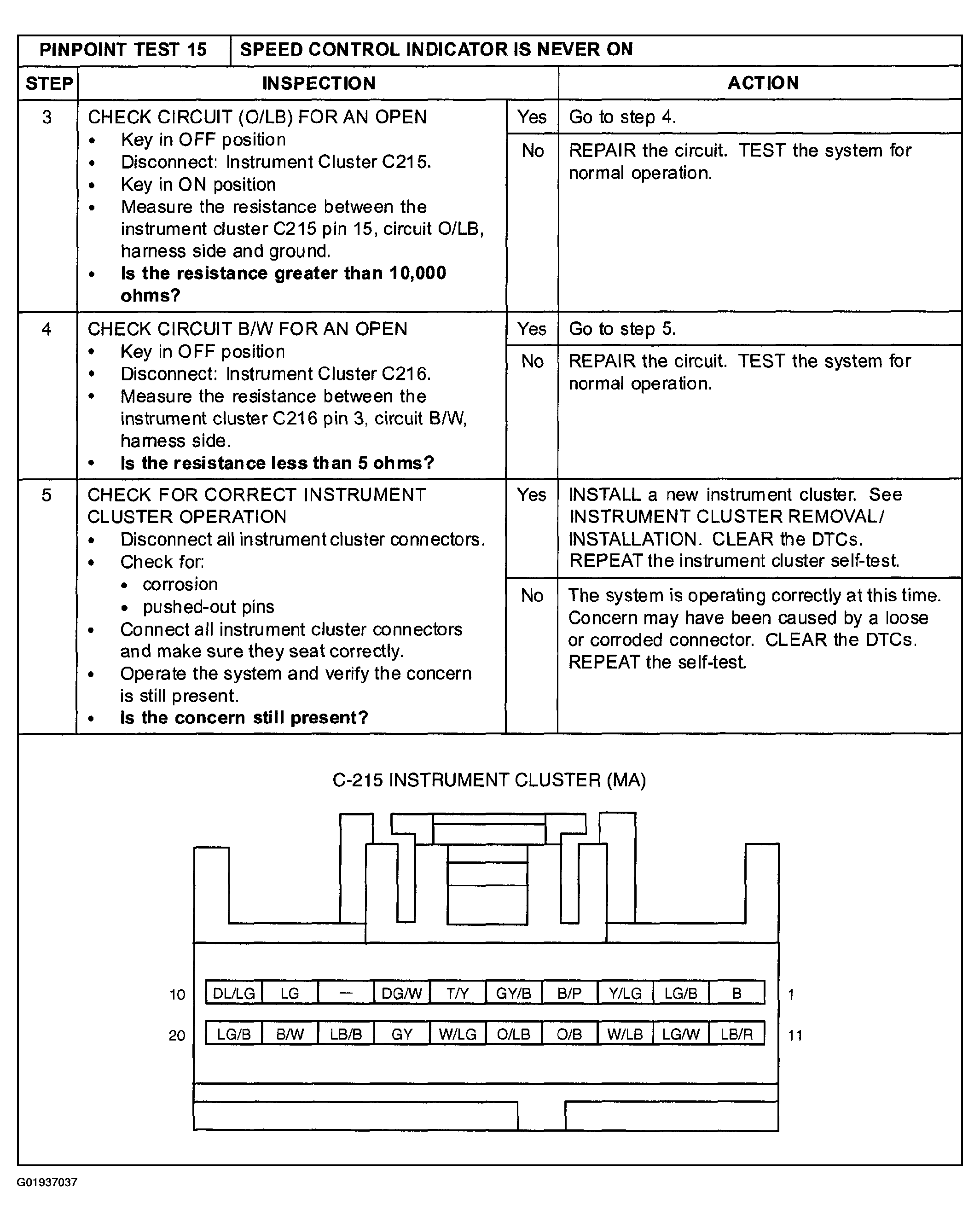

Fig 2: Instrument Cluster Pinpoint Test 15: Speed Control Indicator Is Never On (Steps 3-4 & C-215 Instrument Cluster Connector Terminals Wire Color)

Courtesy of MAZDA MOTORS CORP.

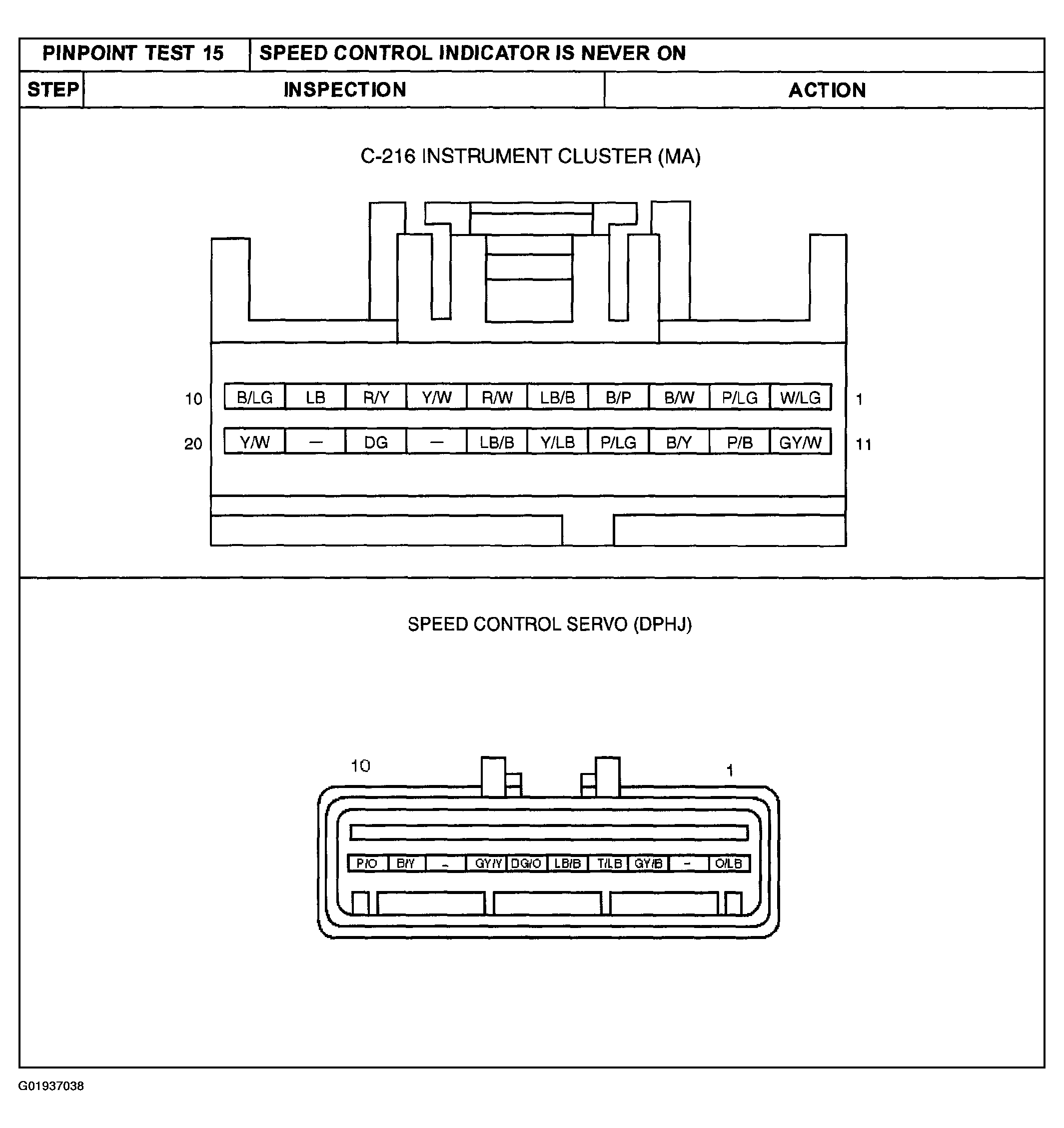

Fig 3: Identifying Speed Control Servo (DPHJ) & C-216 Instrument Cluster Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
