Instrument Cluster Pinpoint Test 14: O/D Off Indicator Is Inoperative

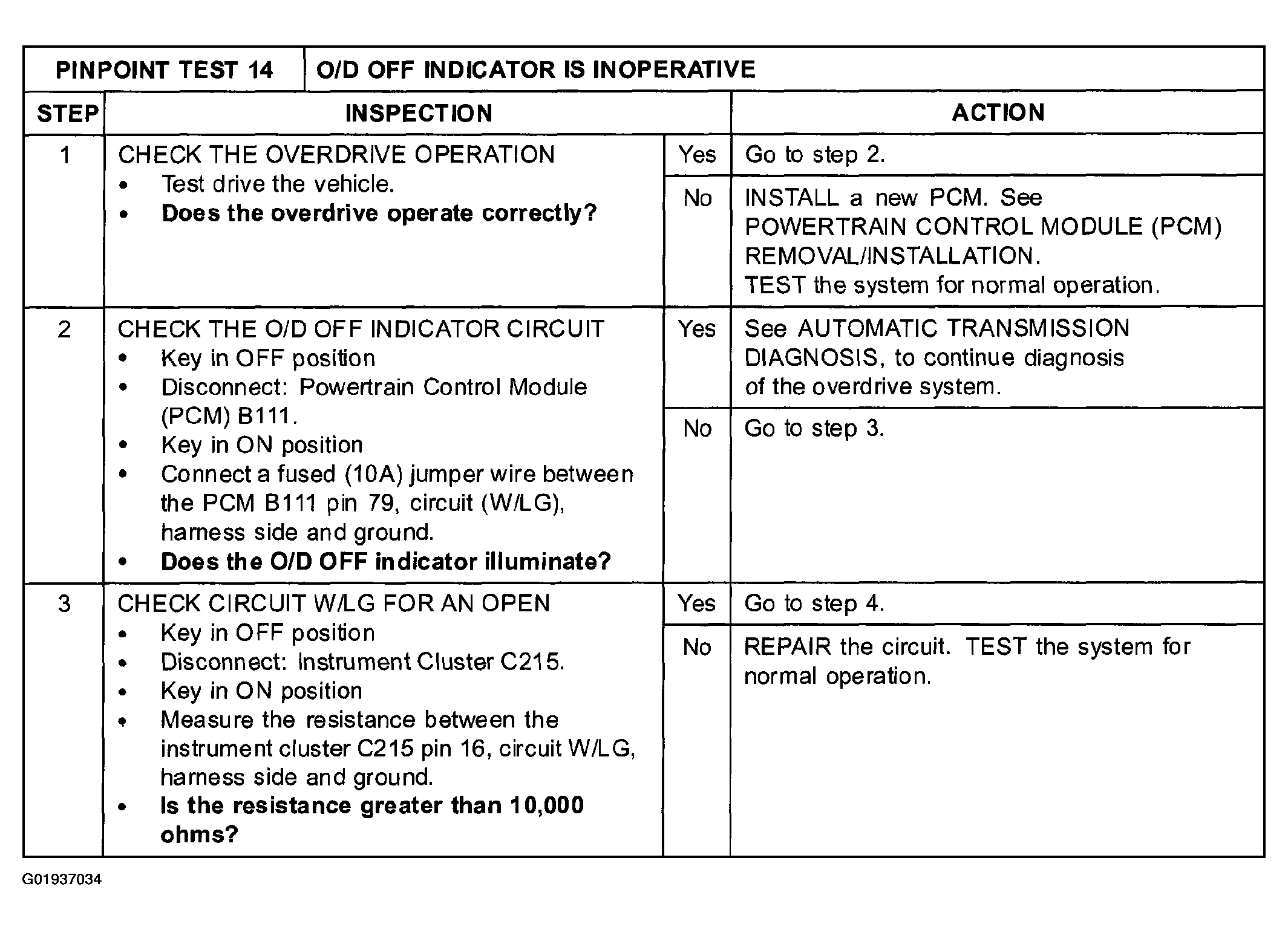

Fig 1: Instrument Cluster Pinpoint Test 14: O/D Off Indicator Is Inoperative (Steps 1-3)
G01937034Courtesy of MAZDA MOTORS CORP.

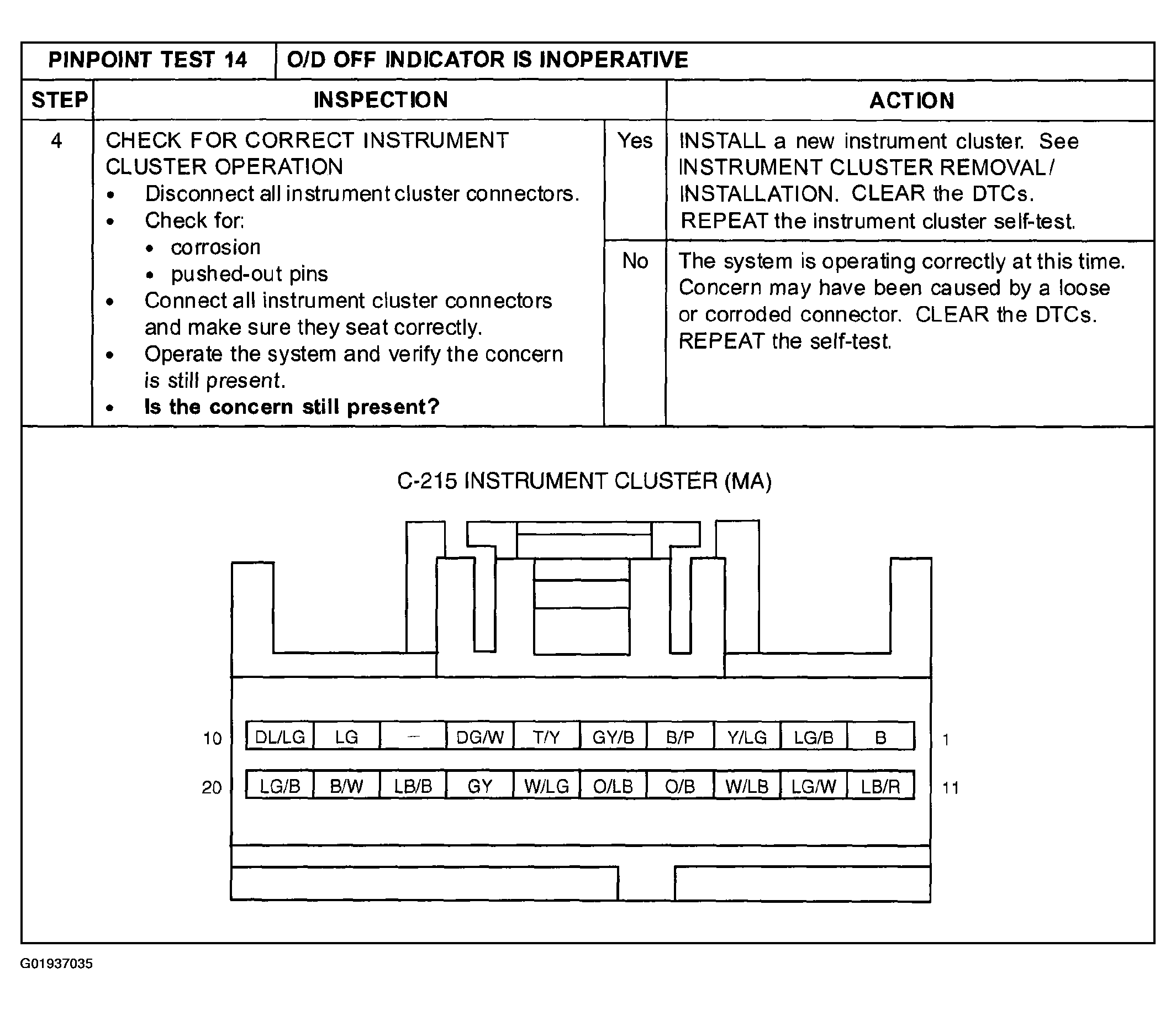

Fig 2: Instrument Cluster Pinpoint Test 14: O/D Off Indicator Is Inoperative (Step 4 & C-215 Instrument Cluster Connector Terminals Wire Color)
G01937035Courtesy of MAZDA MOTORS CORP.
