Instrument Cluster Pinpoint Test 13: RH Turn Signal Indicator Is Never On

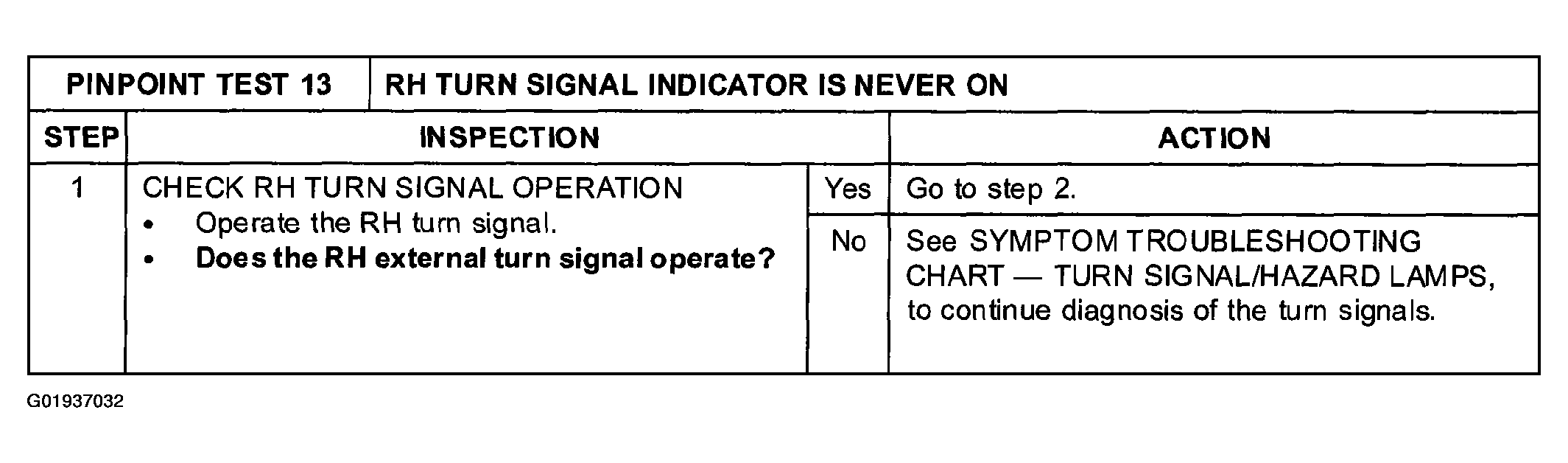

Fig 1: Instrument Cluster Pinpoint Test 13: RH Turn Signal Indicator Is Never On (Step 1)
G01937032Courtesy of MAZDA MOTORS CORP.

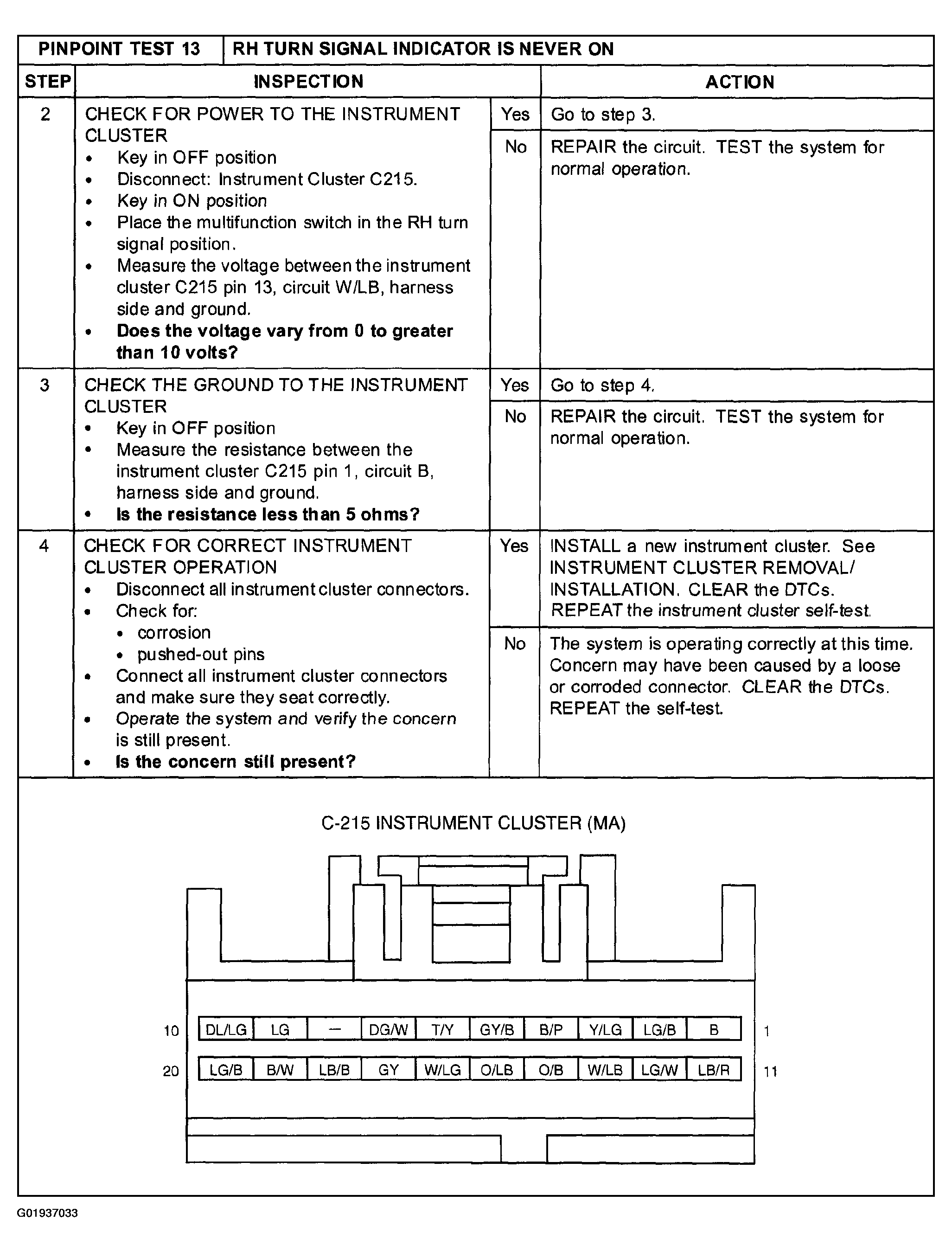

Fig 2: Instrument Cluster Pinpoint Test 13: RH Turn Signal Indicator Is Never On (Steps 2-4 & C-215 Instrument Cluster Connector Terminals Wire Color)
G01937033Courtesy of MAZDA MOTORS CORP.
