Instrument Cluster Pinpoint Test 11: Check Engine/Malfunction Indicator Lamp (Mil) Indicator Is Inoperative

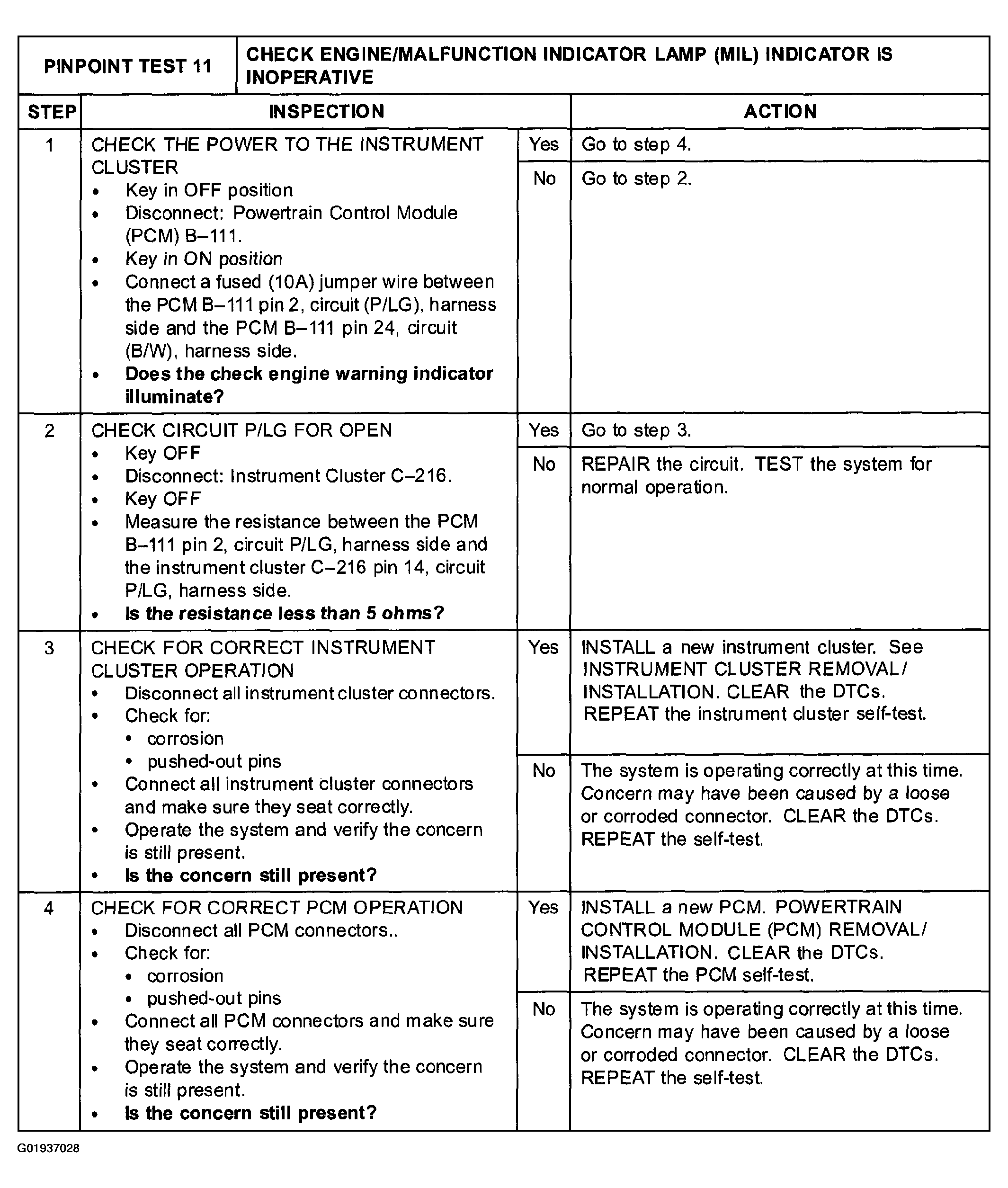

Fig 1: Instrument Cluster Pinpoint Test 11: Check Engine/Malfunction Indicator Lamp (Mil) Indicator Is Inoperative
G01937028Courtesy of MAZDA MOTORS CORP.

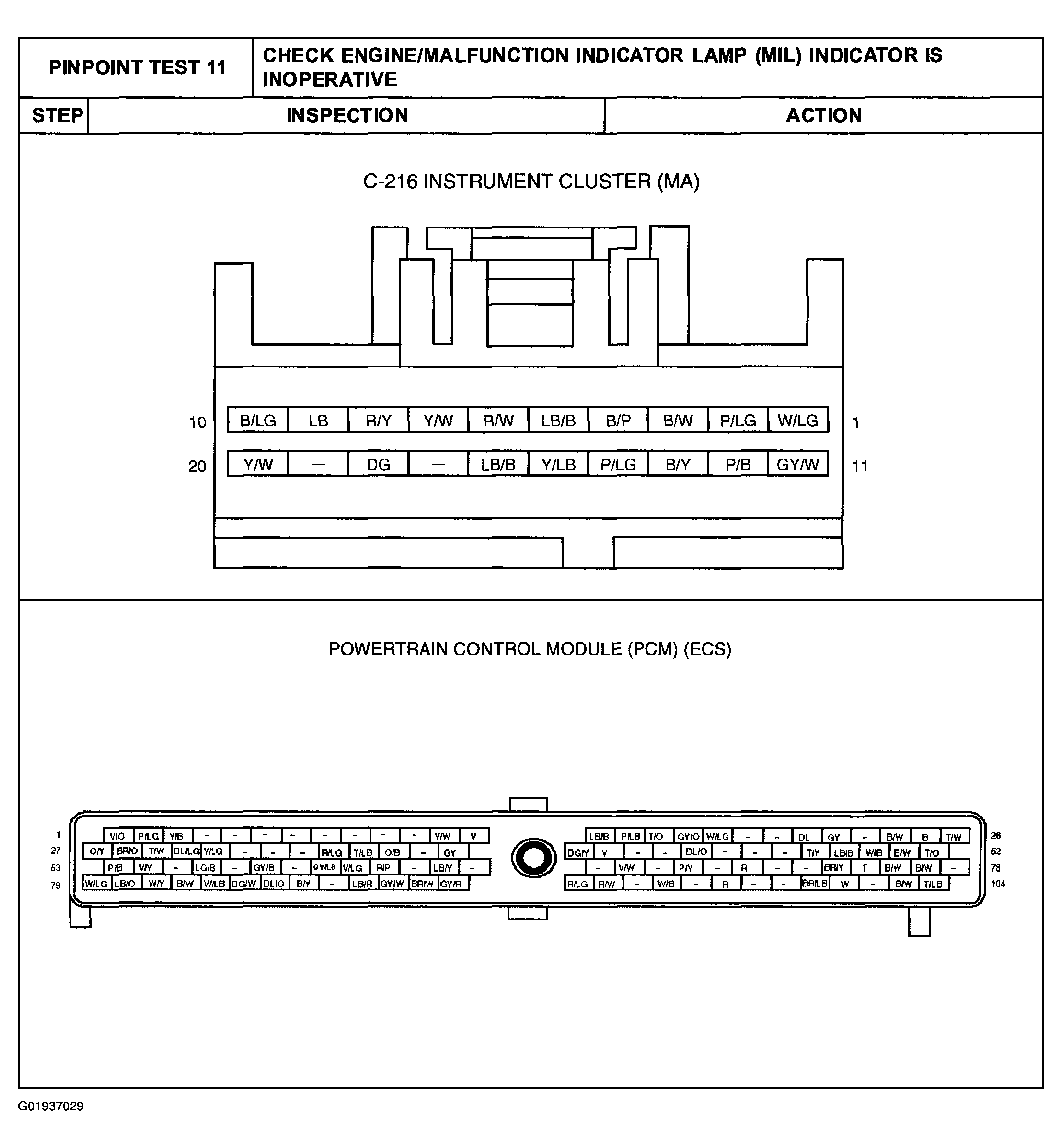

Fig 2: Identifying Powertrain Control Module & C-216 Instrument Cluster Connector Terminals Wire Color
G01937029Courtesy of MAZDA MOTORS CORP.
