Instrument Cluster Pinpoint Test 10: High Beam Indicator Is Never On

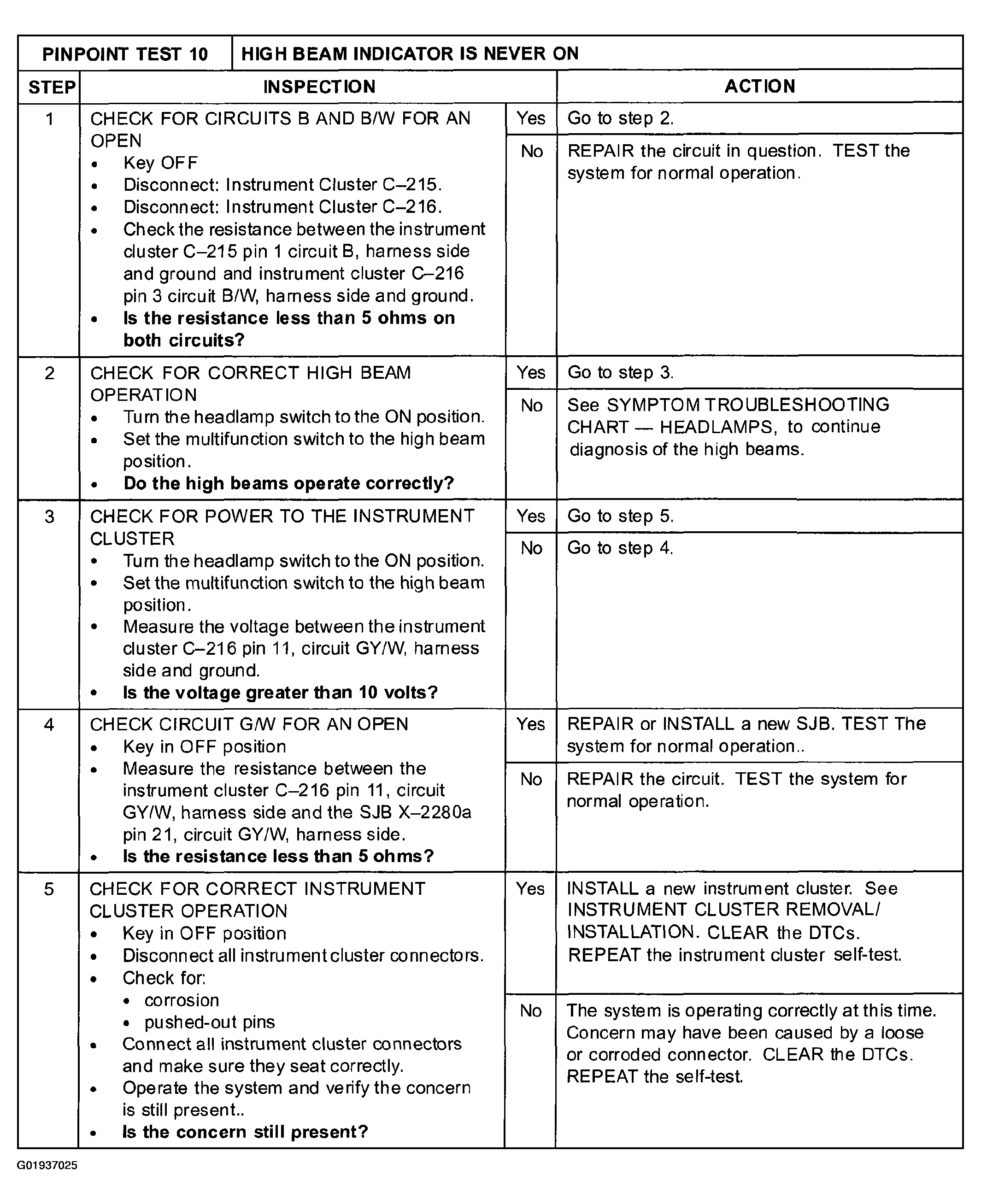

Fig 1: Instrument Cluster Pinpoint Test 10: High Beam Indicator Is Never On

Courtesy of MAZDA MOTORS CORP.

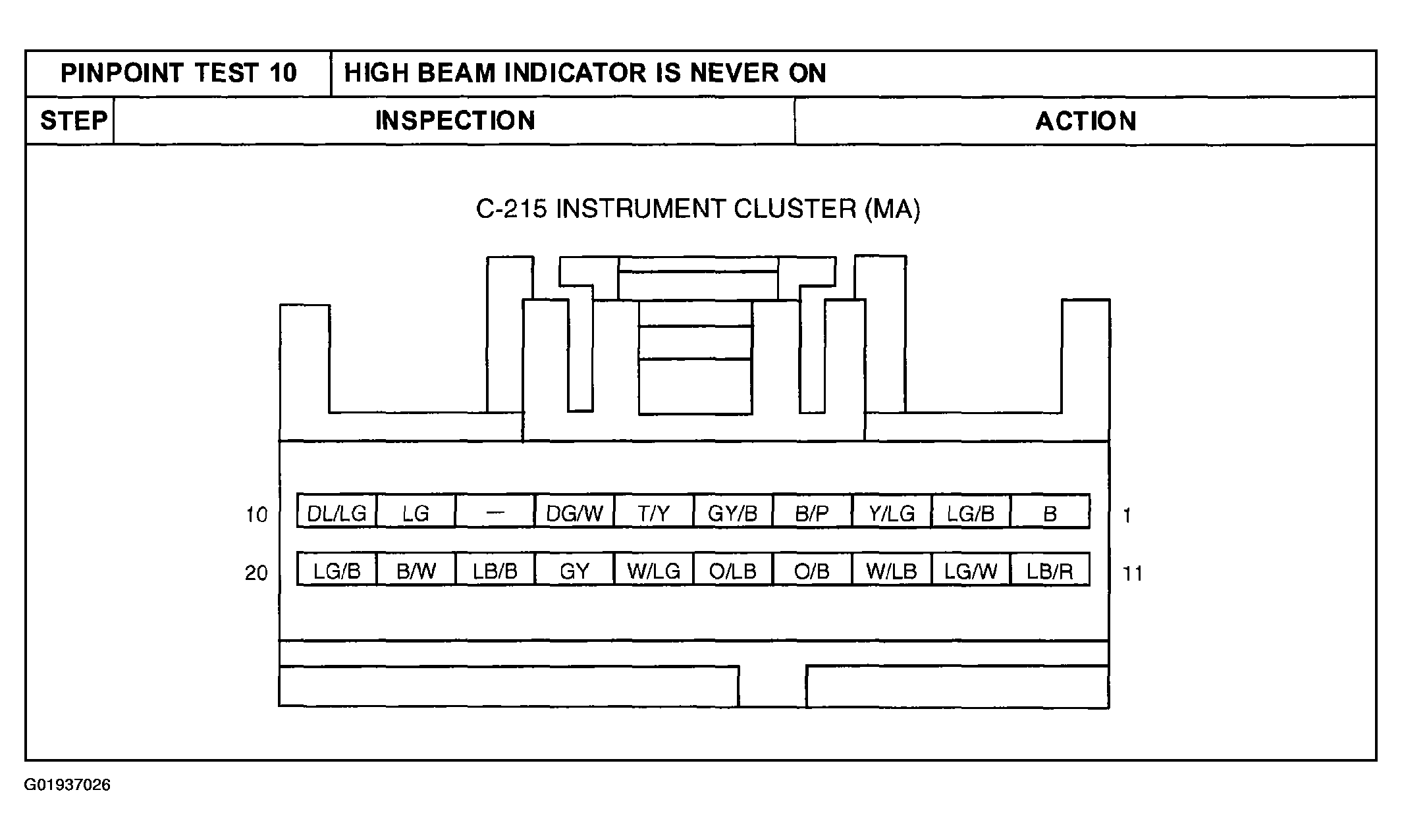

Fig 2: Identifying C-215 Instrument Cluster Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.

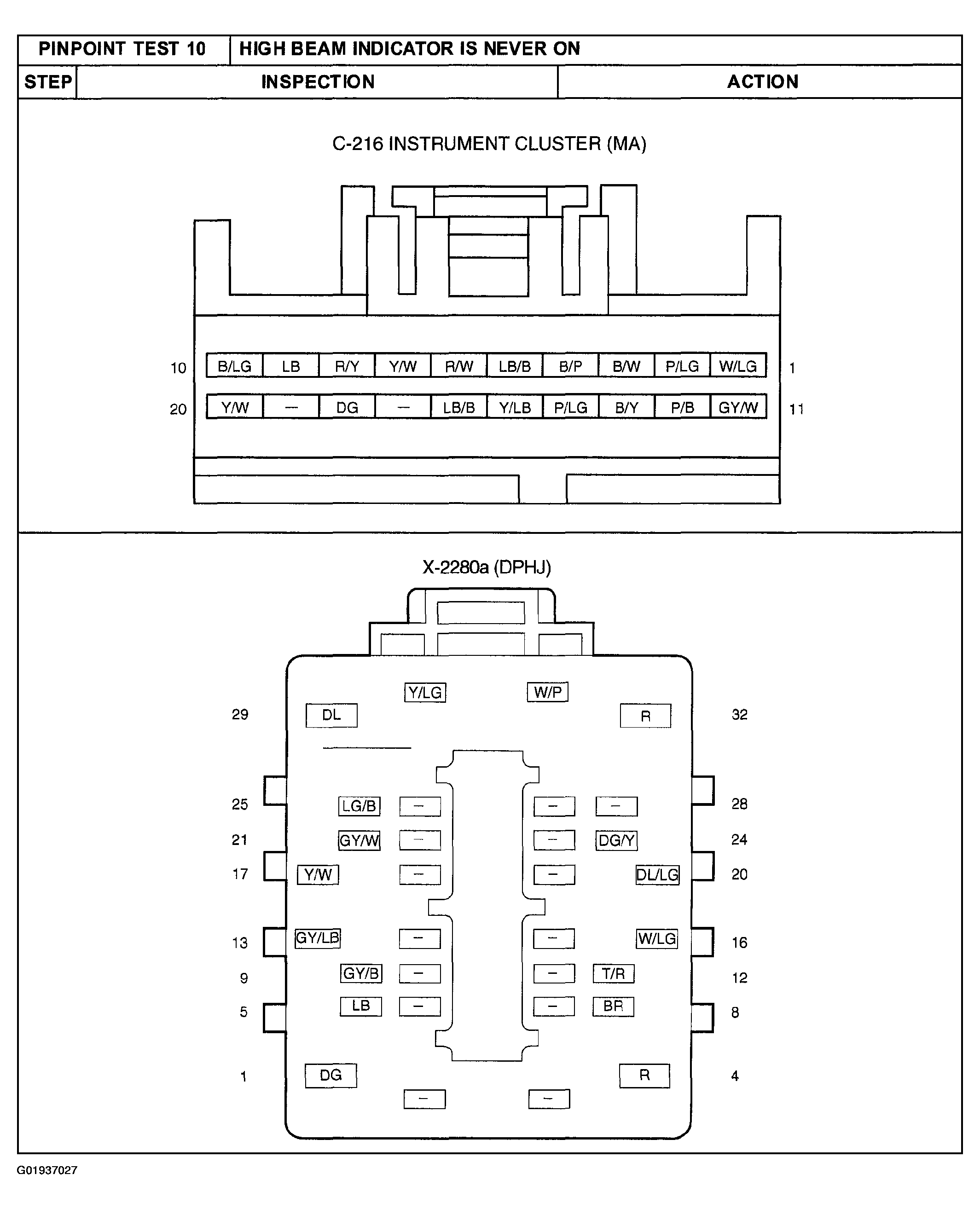

Fig 3: Identifying X2280a(DPHJ) & C-216 Instrument Cluster Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
