Instrument Cluster Pinpoint Test 1: No Communication With The Instrument Cluster

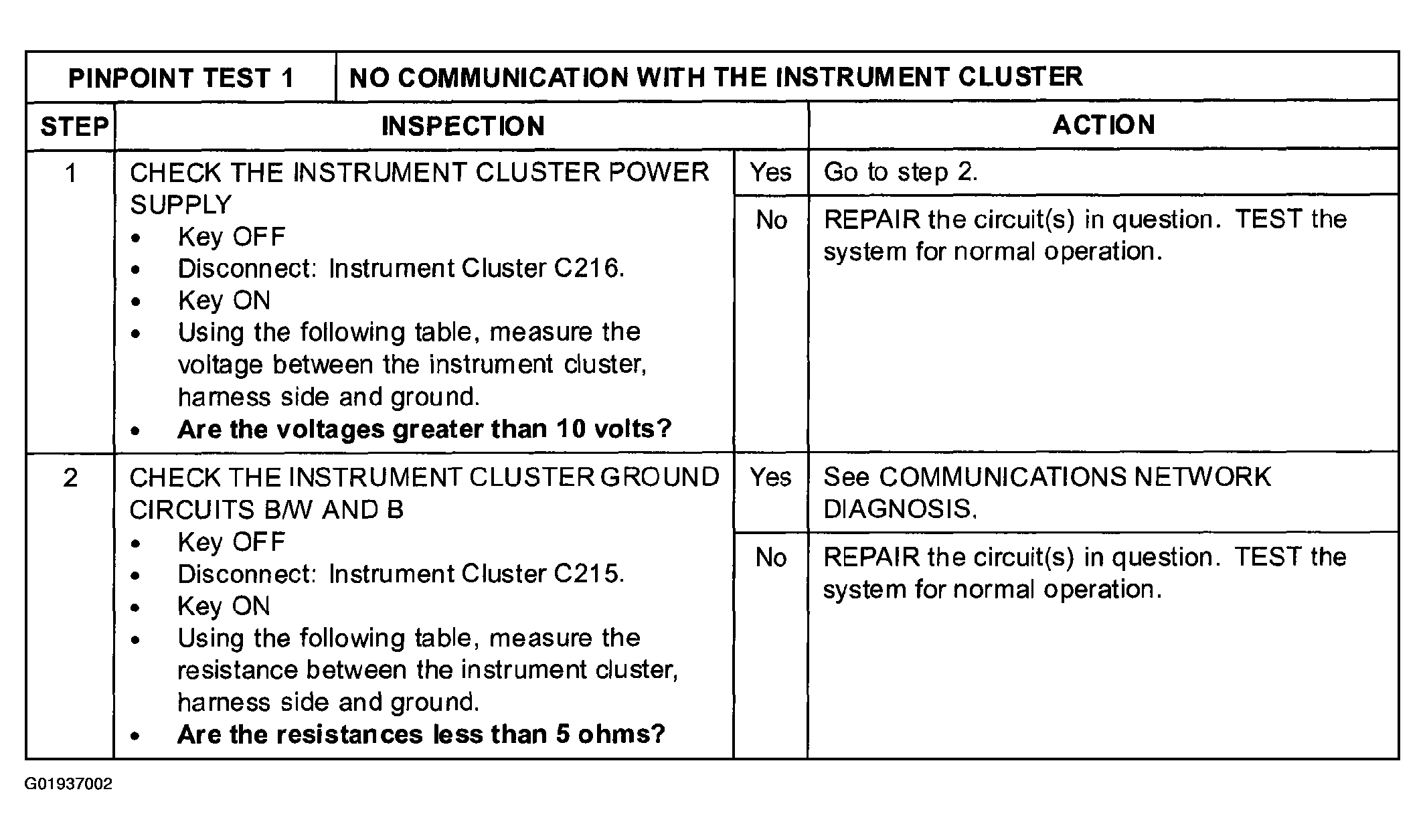

Fig 1: Instrument Cluster Pinpoint Test 1: No Communication With The Instrument Cluster

Courtesy of MAZDA MOTORS CORP.

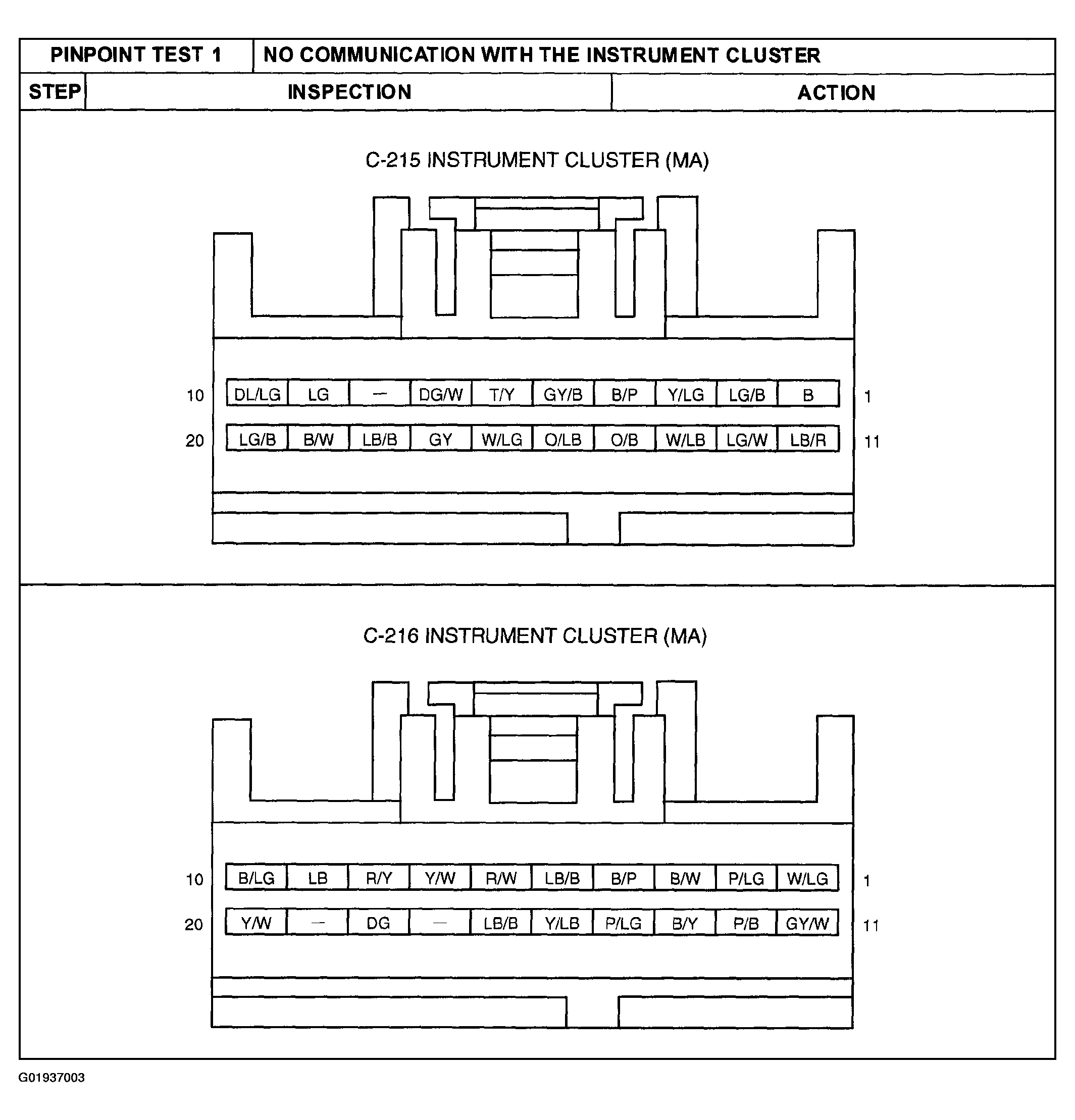

Fig 2: Identifying C-215 & C-216 Instrument Cluster (MA) Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.

Fig 3: Connector Pin & Circuit Wire Color Table (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Connector Pin & Circuit Wire Color Table (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
