Symptom Troubleshooting Chart - Horn

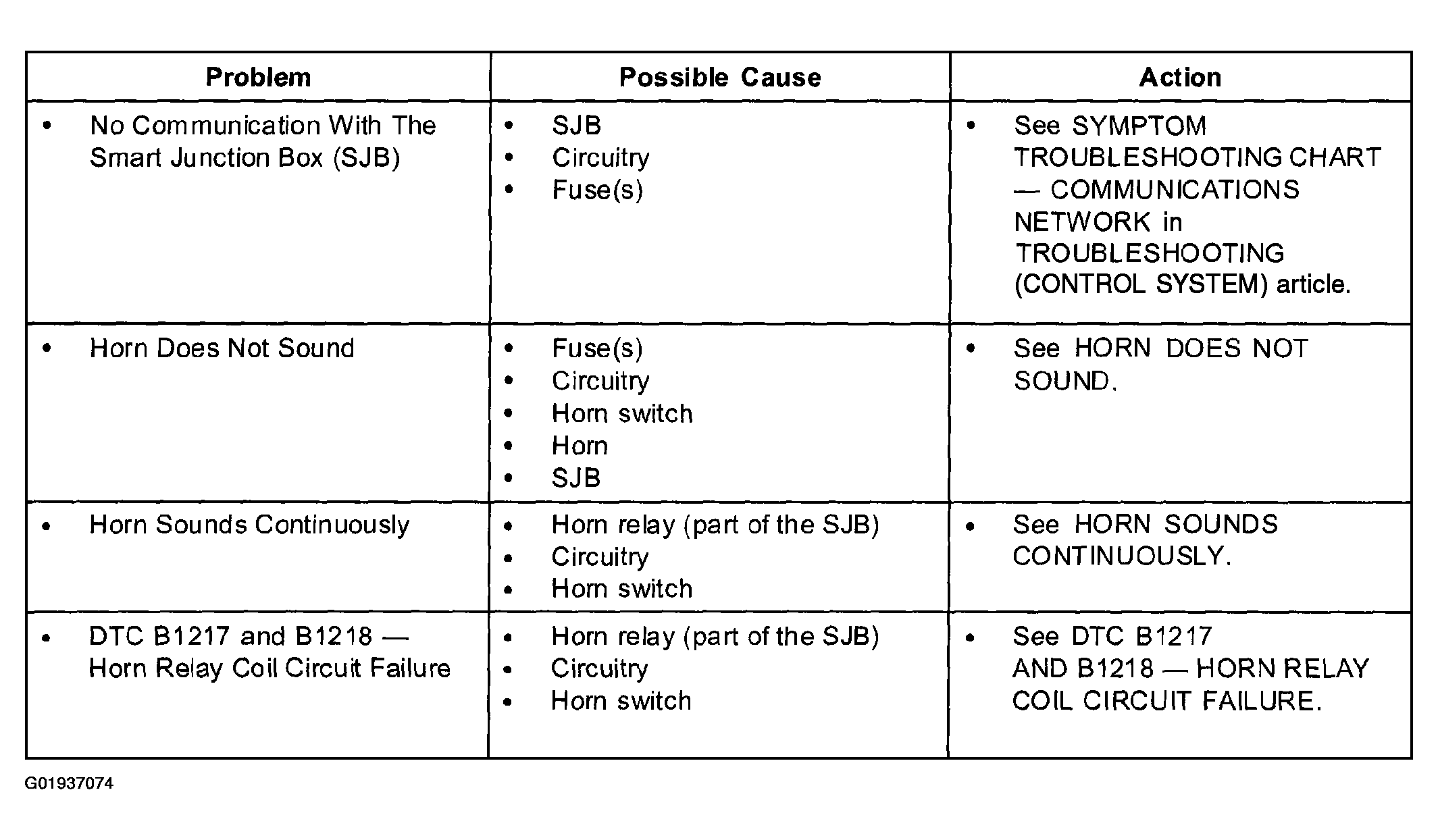

Fig 1: Symptom Troubleshooting Chart - Horn

G01937074

Courtesy of MAZDA MOTORS CORP.
