Symptom Troubleshooting Chart - Audible Warning Devices

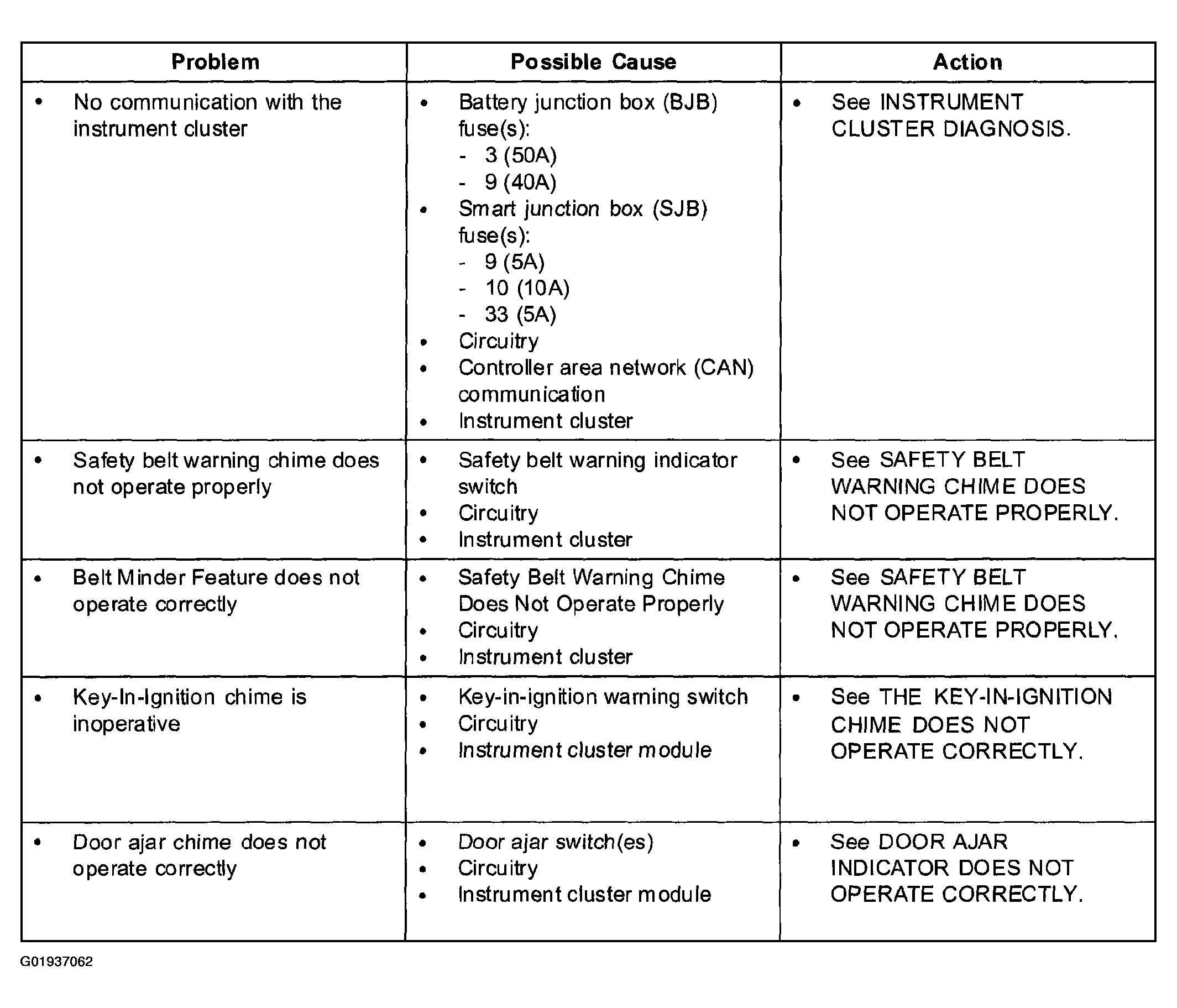

Fig 1: Symptom Troubleshooting Chart - Audible Warning Devices (1 Of 2)
G01937062Courtesy of MAZDA MOTORS CORP.

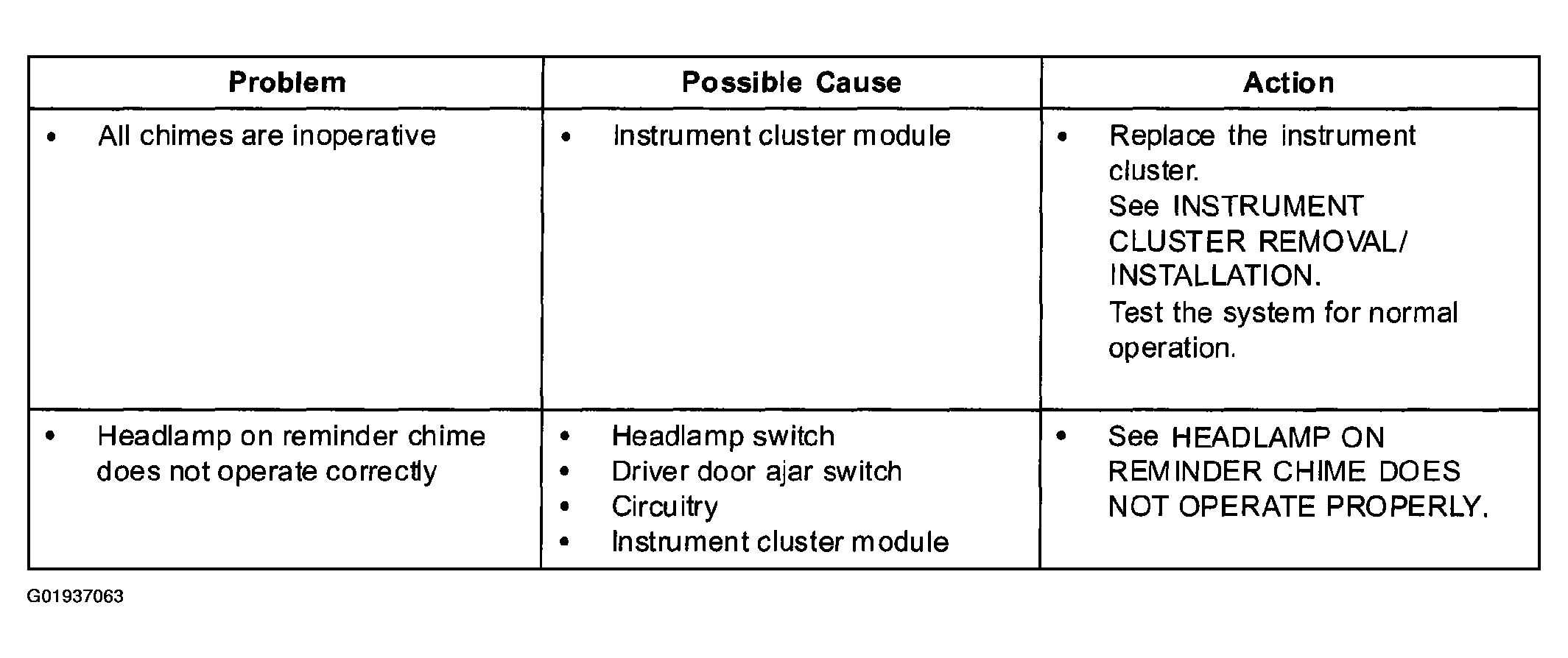

Fig 2: Symptom Troubleshooting Chart - Audible Warning Devices (2 Of 2)
G01937063Courtesy of MAZDA MOTORS CORP.
