Safety Belt Warning Chime Does Not Operate Properly

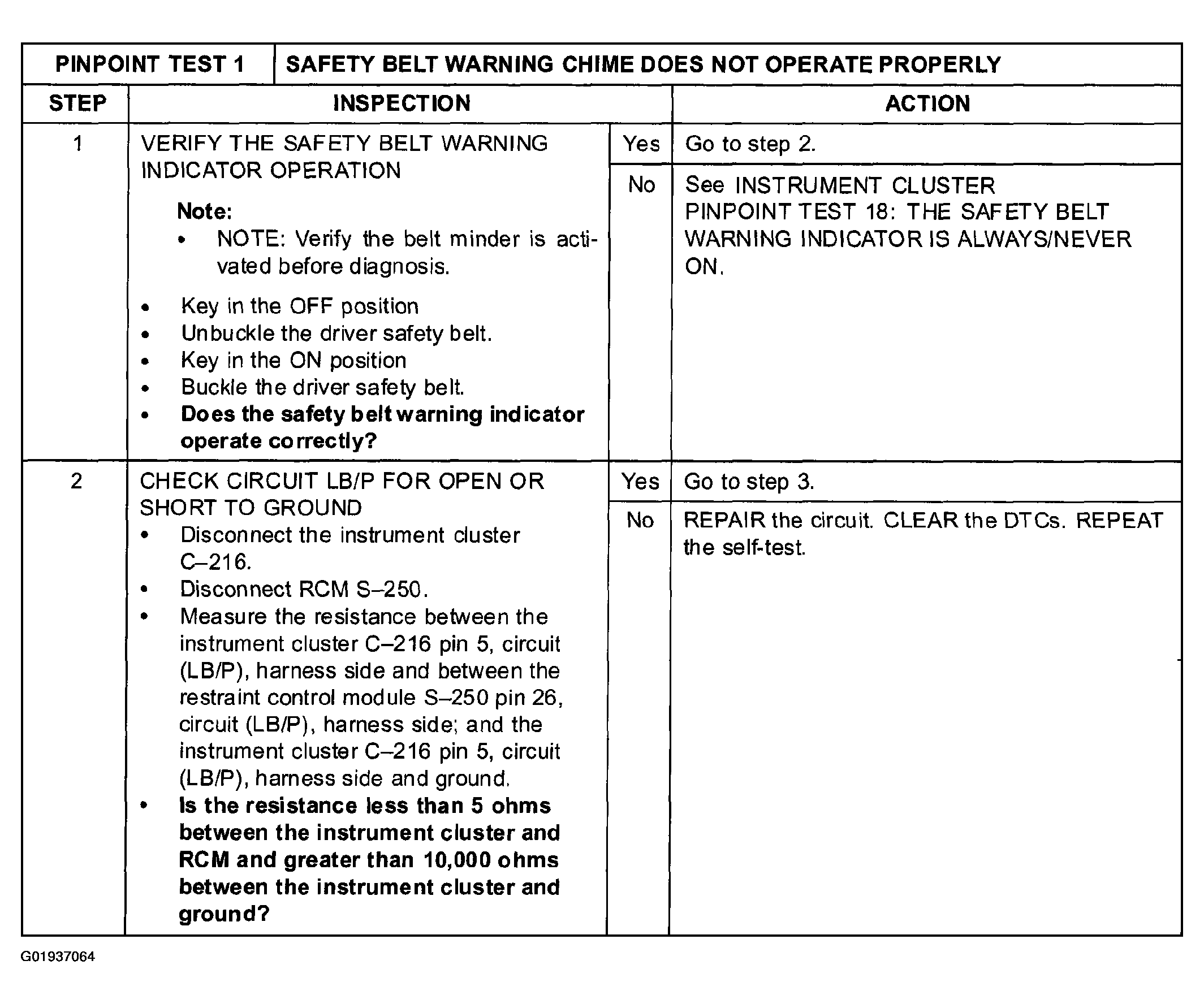

Fig 1: Pinpoint Test 1 - Safety Belt Warning Chime Does Not Operate Properly (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

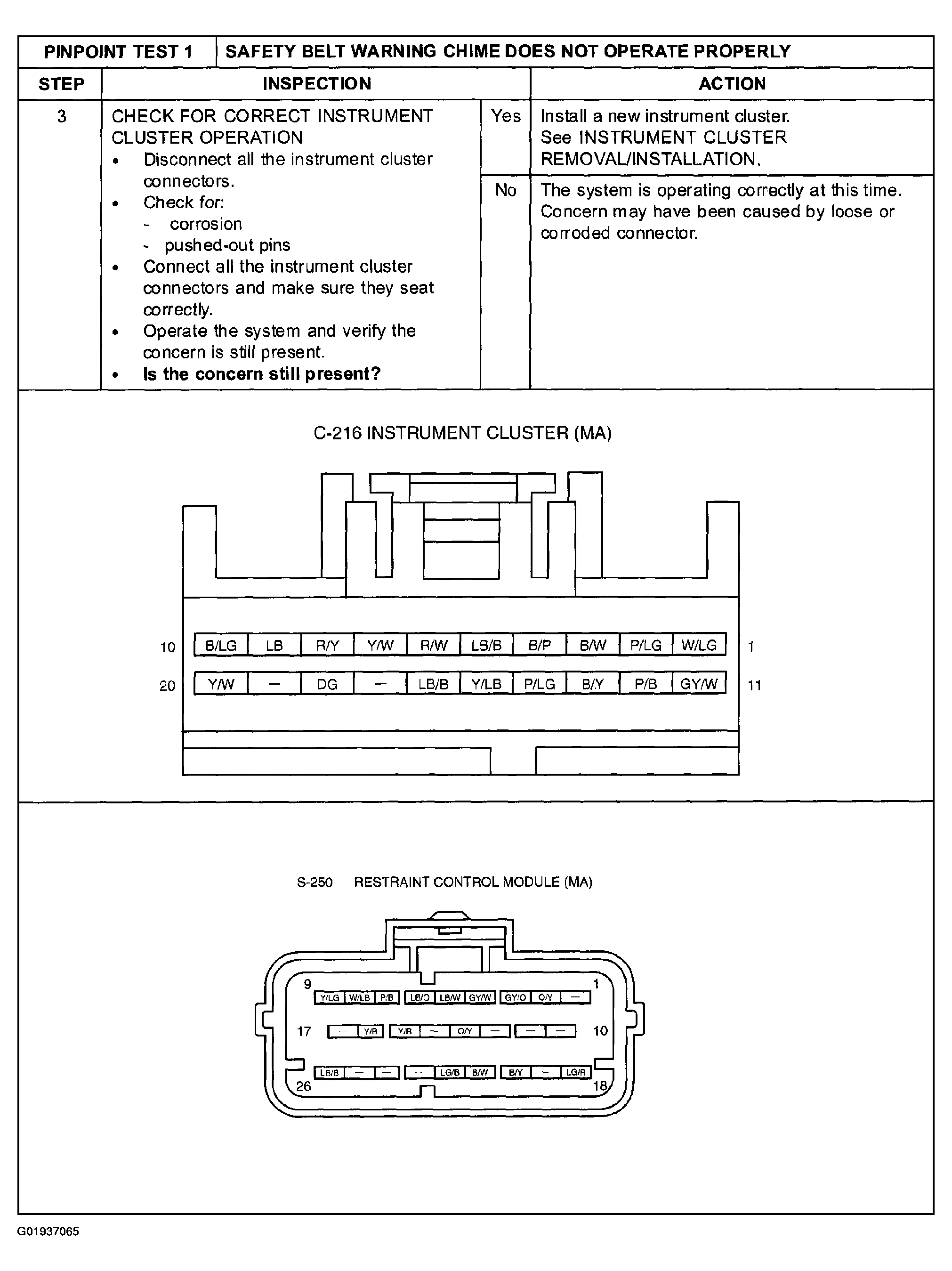

Fig 2: Pinpoint Test 1 - Safety Belt Warning Chime Does Not Operate Properly (Step 3 & C-216 Instrument Cluster & S-250 Restraint Control Module Connector Terminals Wire Color)

Courtesy of MAZDA MOTORS CORP.
