Horn Sounds Continuously

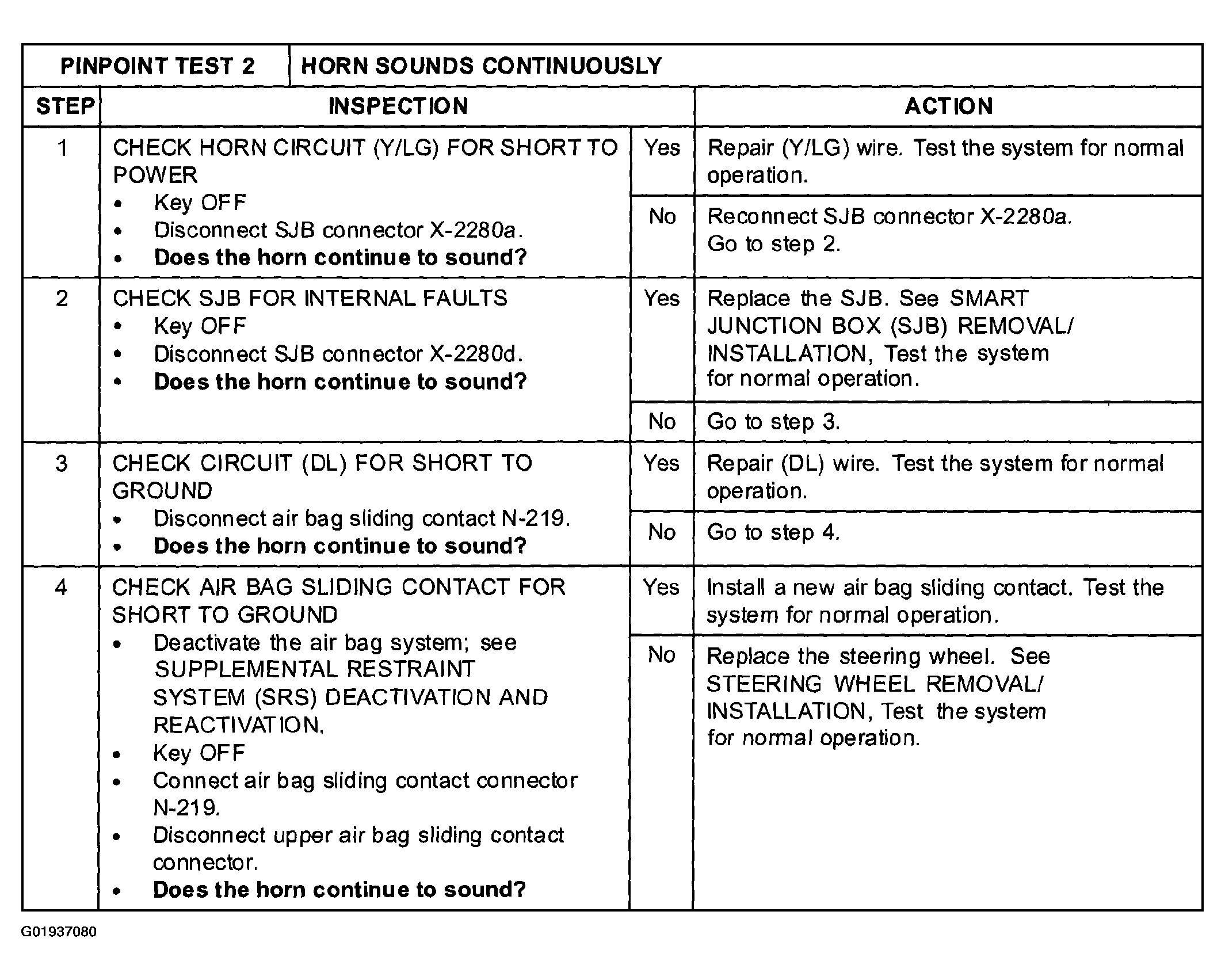

Fig 1: Pinpoint Test 2 - Horn Sounds Continuously

Courtesy of MAZDA MOTORS CORP.

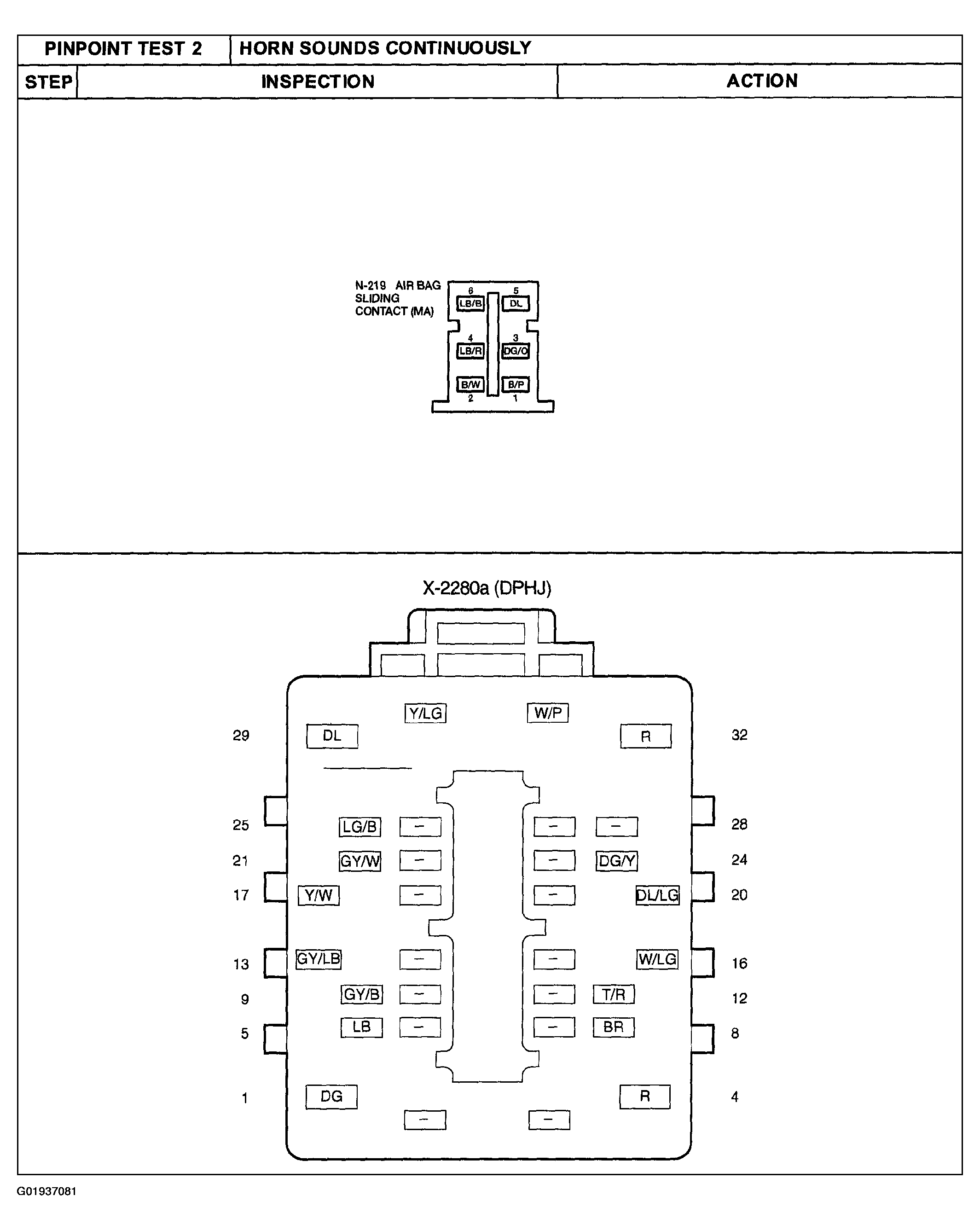

Fig 2: Identifying N-219 Airbag Sliding Contact & X-2280a (DPHJ) Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.

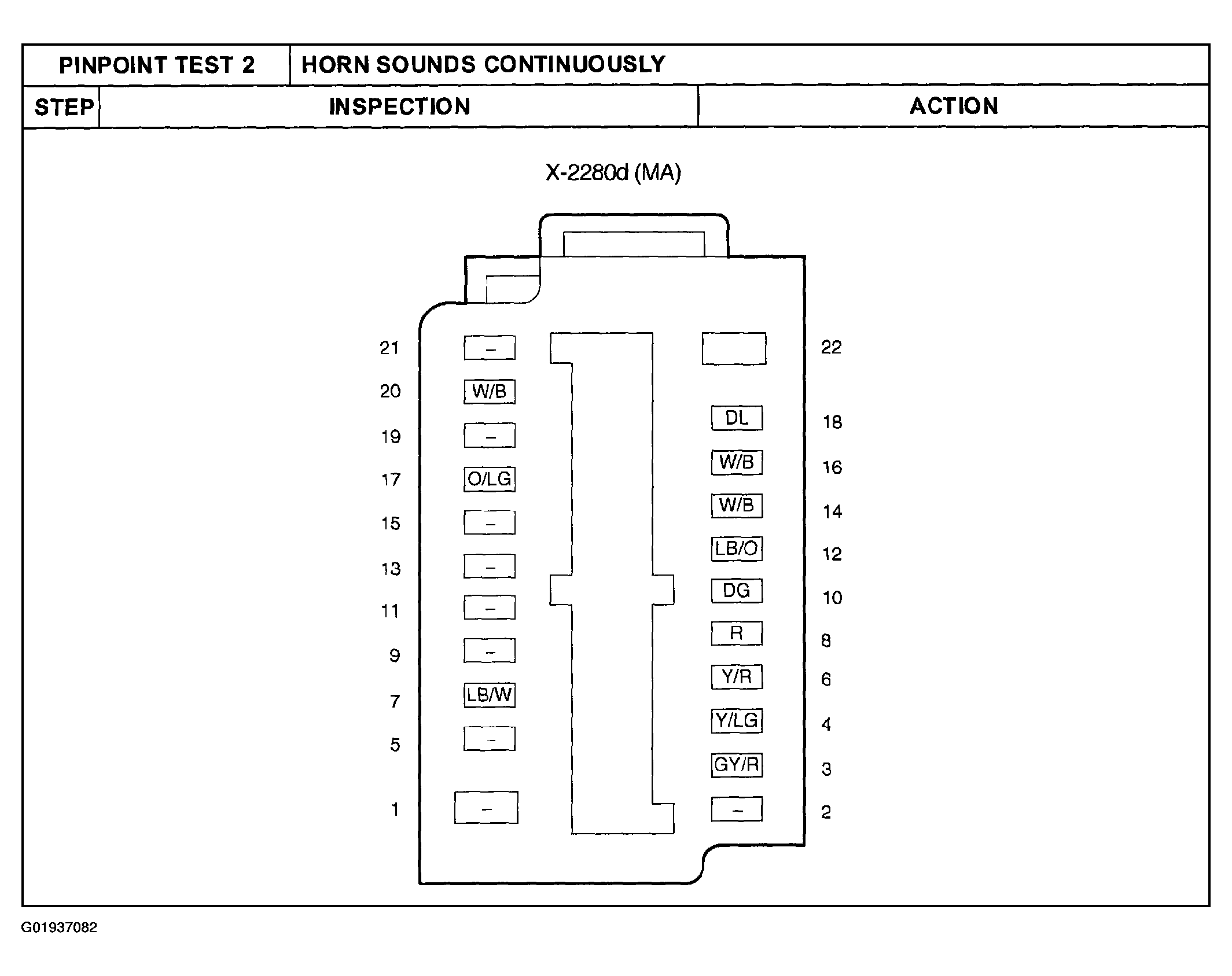

Fig 3: Identifying X-2280d (MA) Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
