Horn Does Not Sound

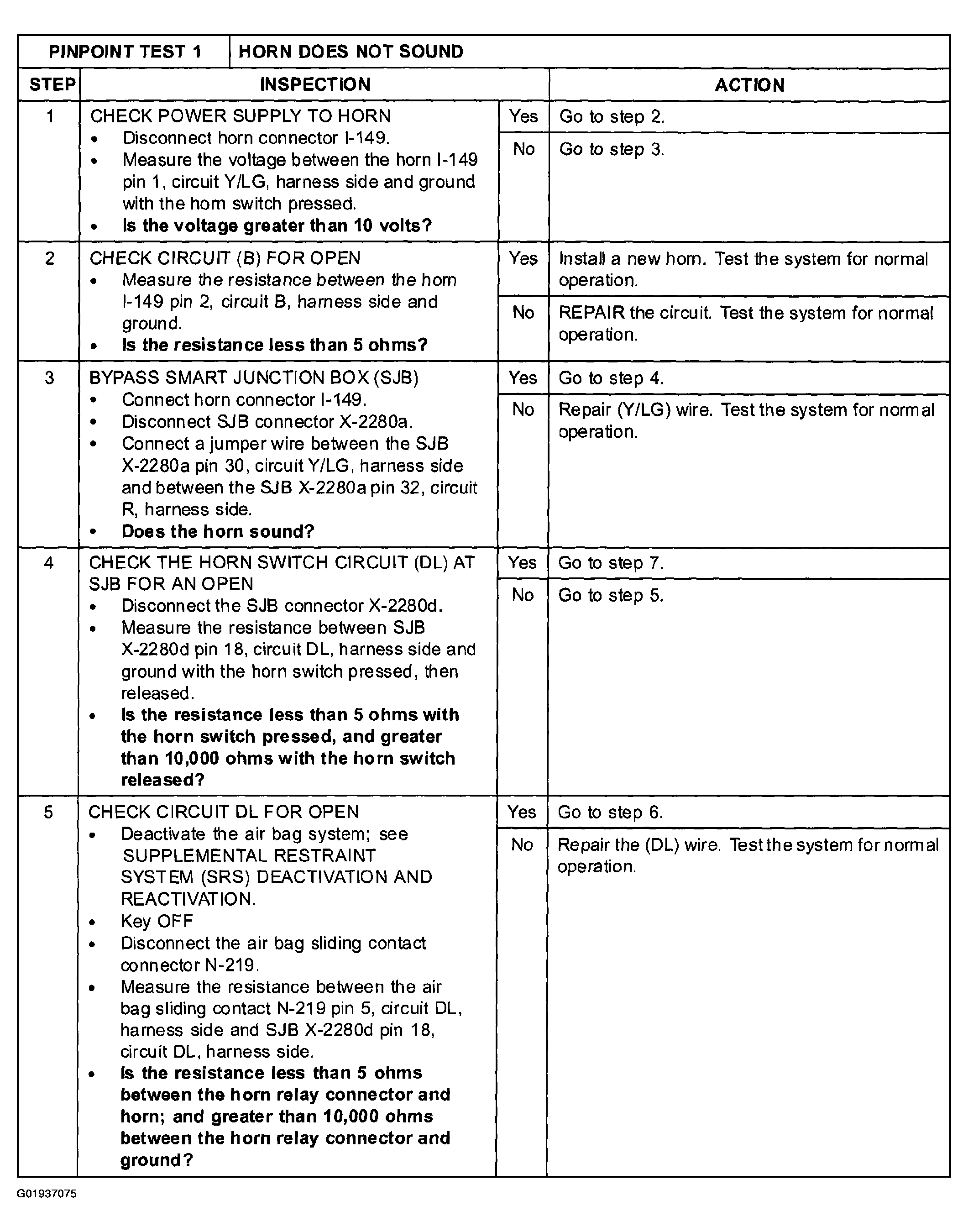

Fig 1: Pinpoint Test 1 - Horn Does Not Sound (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

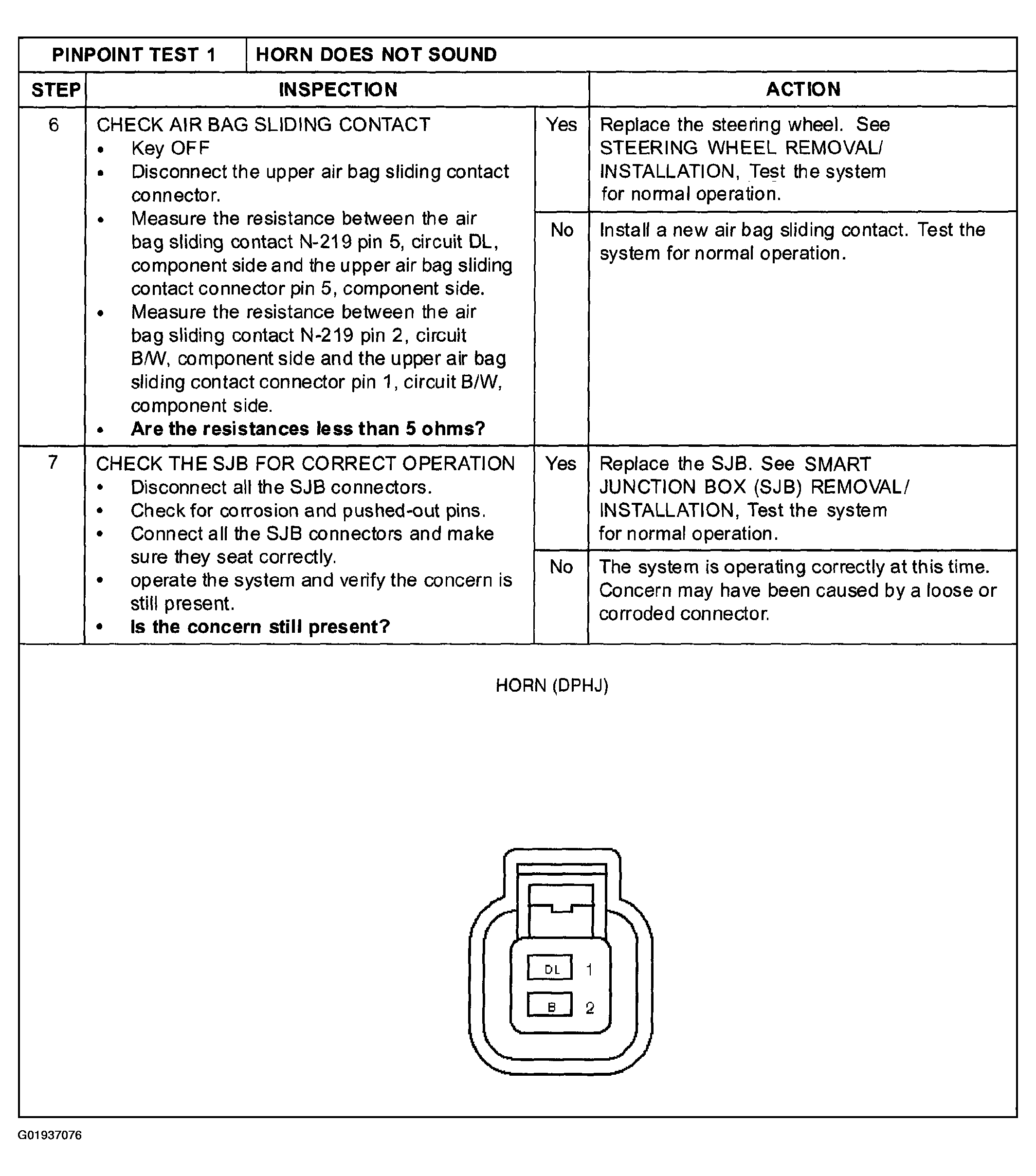

Fig 2: Pinpoint Test 1 - Horn Does Not Sound (Steps 6-7 & Horn Connector Terminals Wire Color)

Courtesy of MAZDA MOTORS CORP.

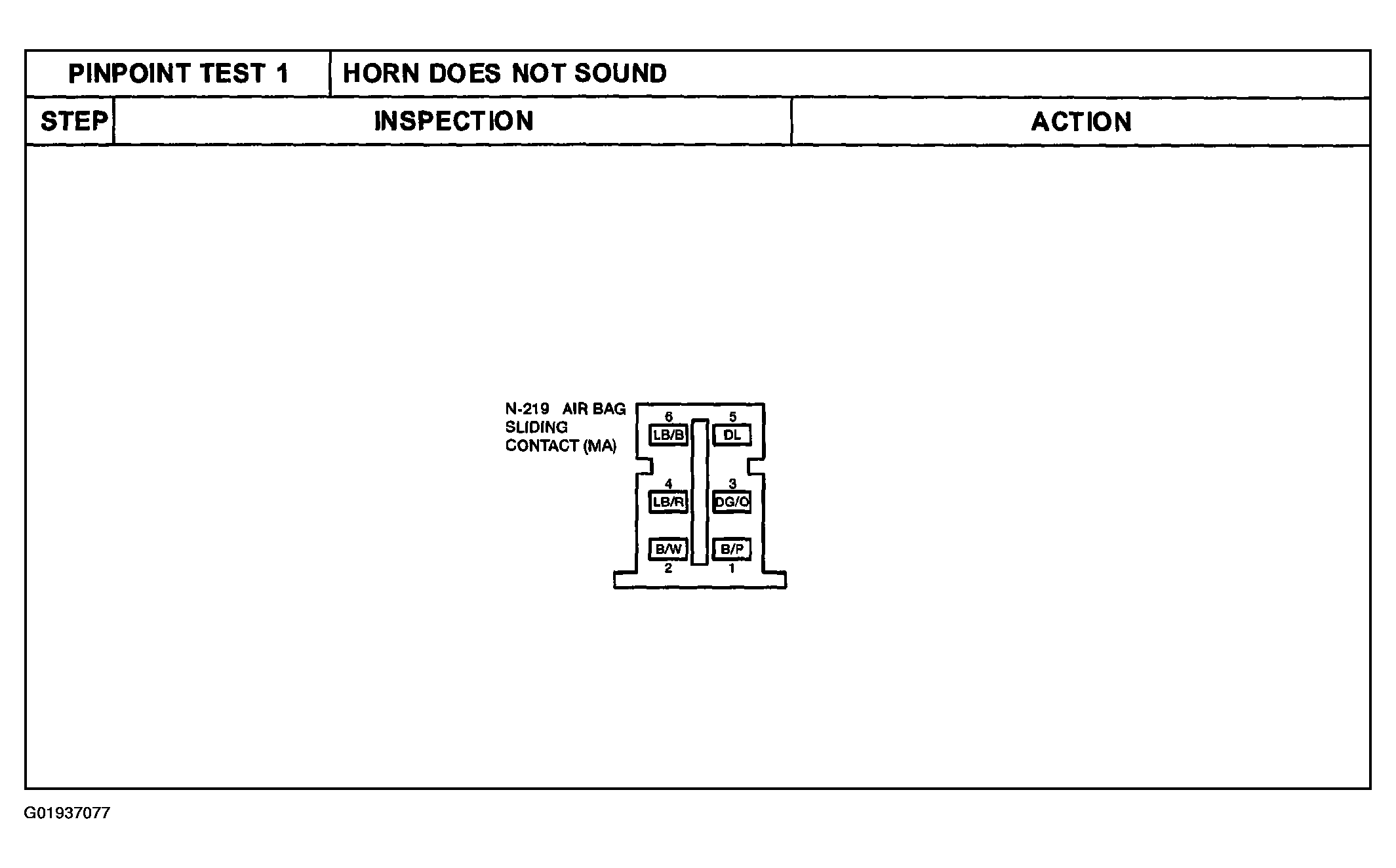

Fig 3: Identifying N-219 Airbag Sliding Contact Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.

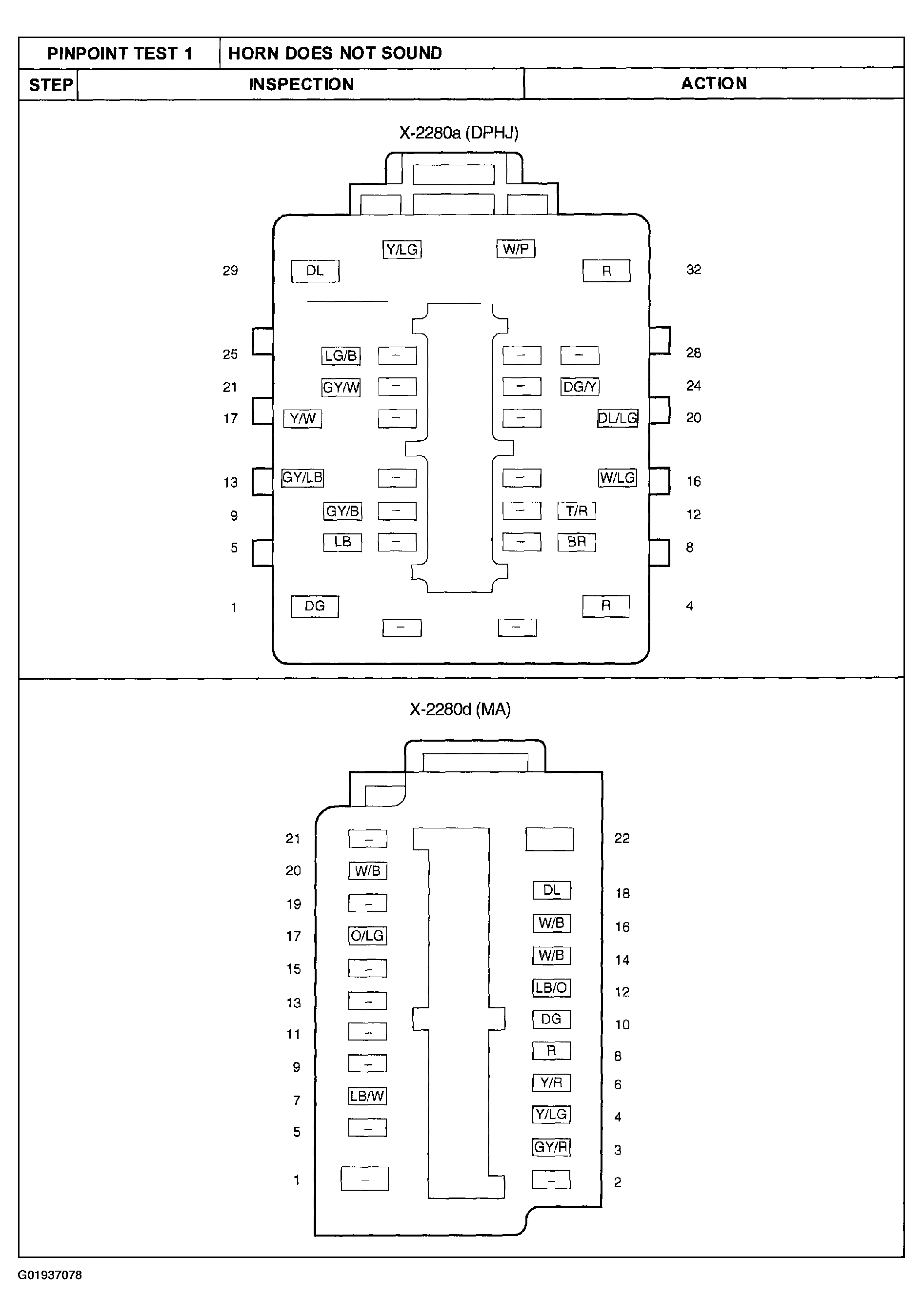

Fig 4: Identifying X-2280a (DPHJ) & X-2280d Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.

Fig 5: Horn Resistance Specification Table

Courtesy of MAZDA MOTORS CORP.
