Headlamp On Reminder Chime Does Not Operate Properly

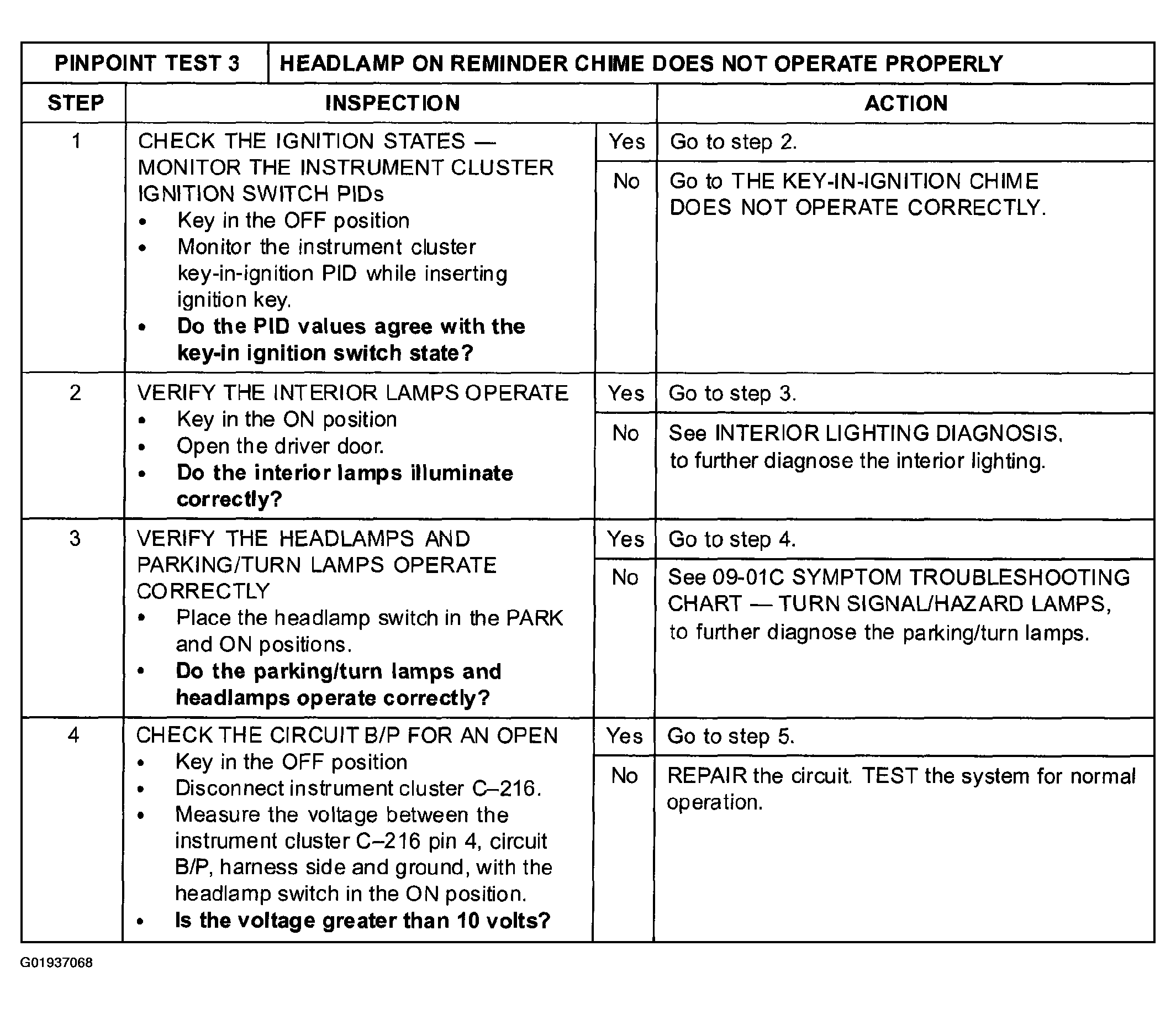

Fig 1: Pinpoint Test 3 - Headlamp On Reminder Chime Does Not Operate Properly (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

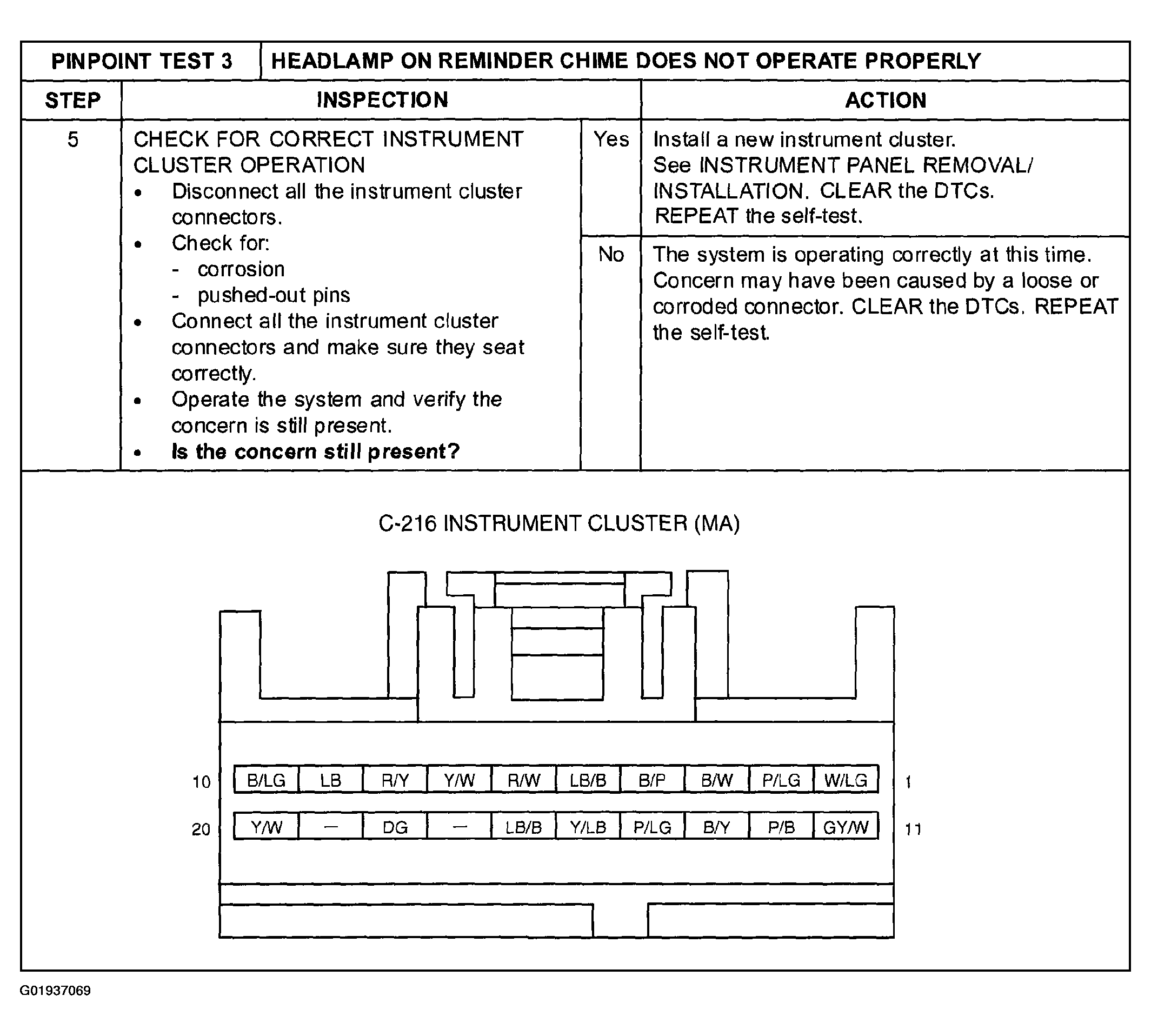

Fig 2: Pinpoint Test 3 - Headlamp On Reminder Chime Does Not Operate Properly (Step 5 & C-216 Instrument Cluster Connector Terminals Wire Color)
