DTC Index - Instrument Cluster

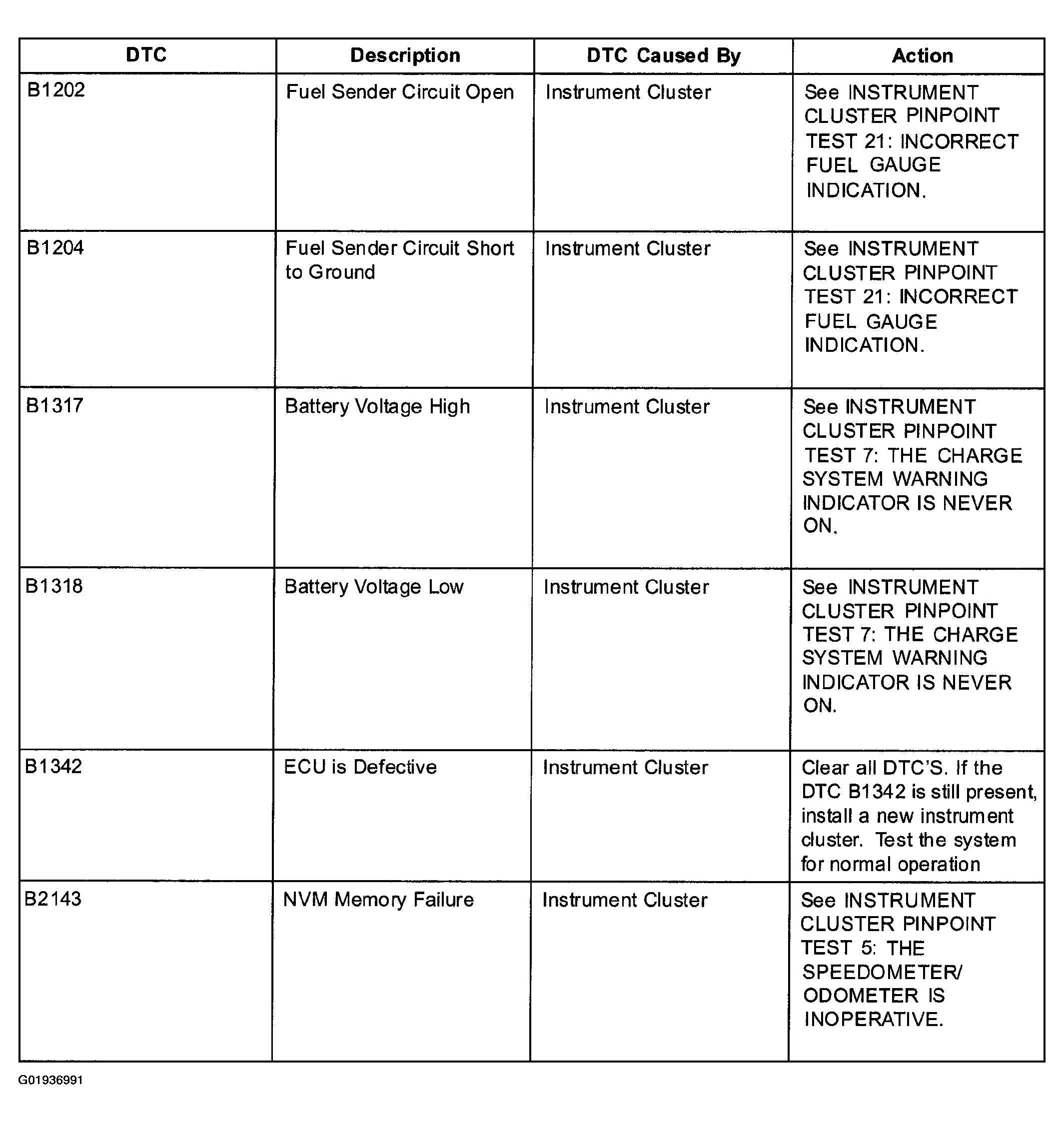

Fig 1: Instrument Cluster Diagnostic Trouble Code Index - (B1202-B2143)

Courtesy of MAZDA MOTORS CORP.

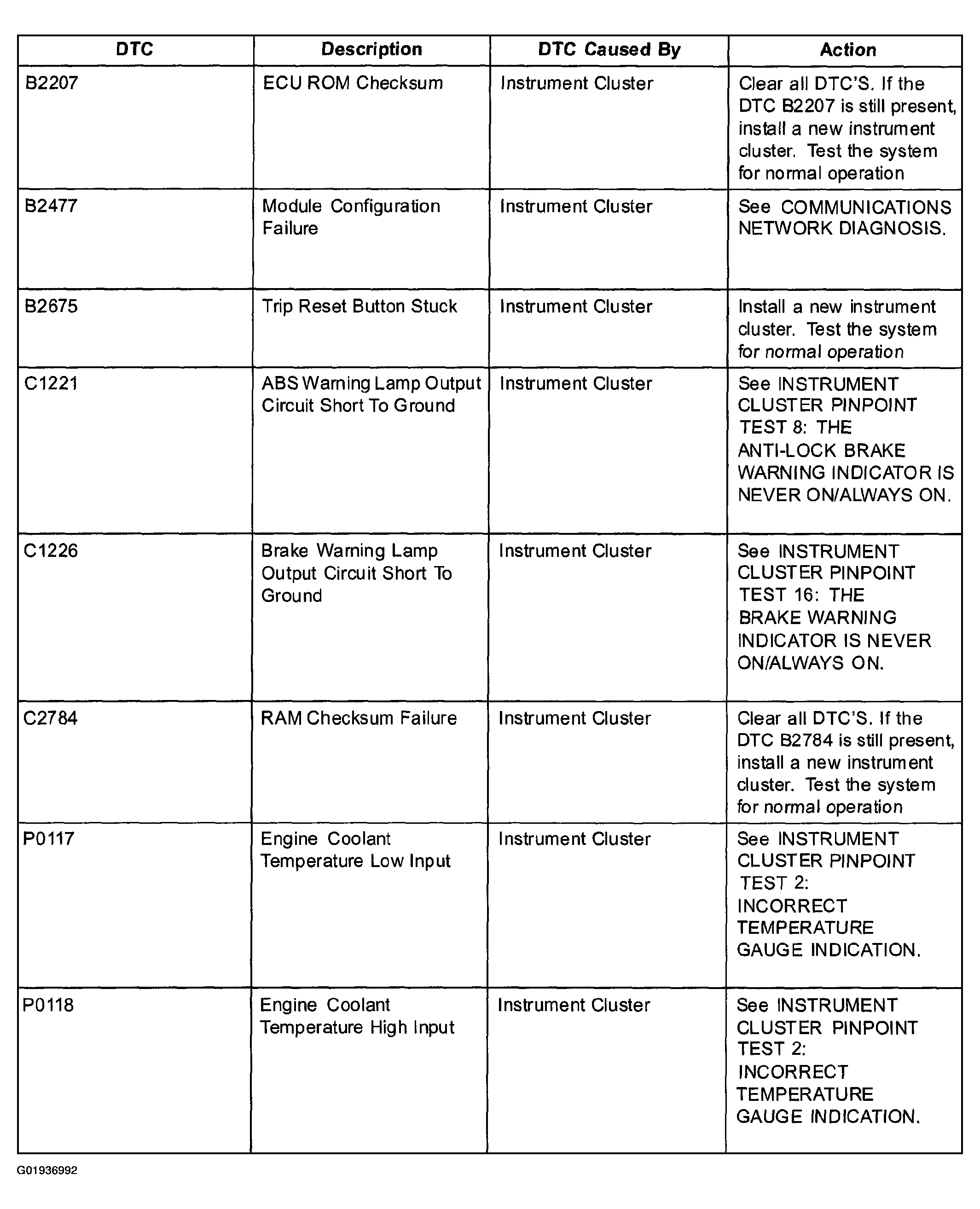

Fig 2: Instrument Cluster Diagnostic Trouble Code Index - (B2207-B2675, C1221-C2784 & P0117-P0118)

Courtesy of MAZDA MOTORS CORP.

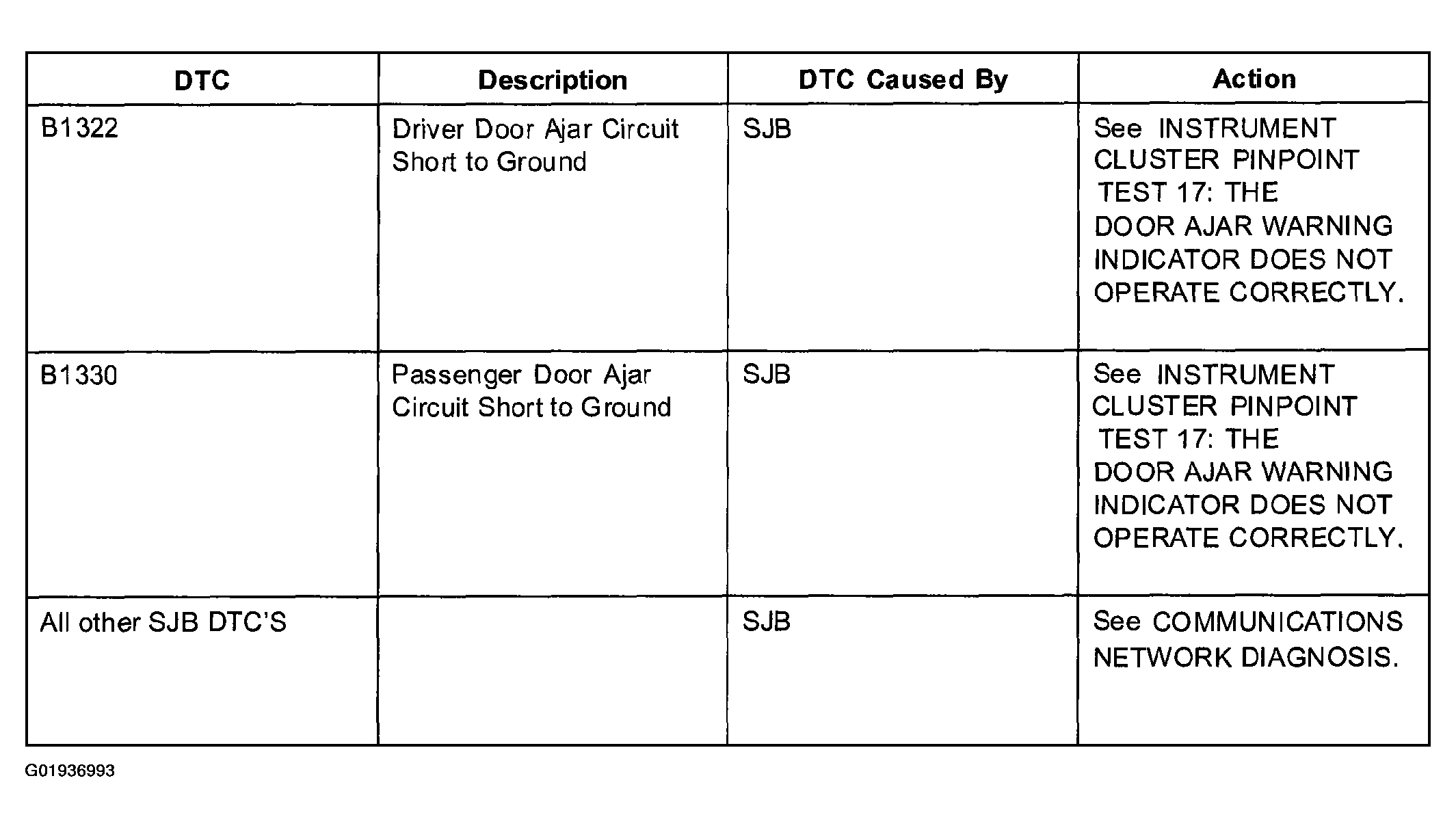

Fig 3: Smart Junction Box (SJB) Diagnostic Trouble Code Index

Courtesy of MAZDA MOTORS CORP.

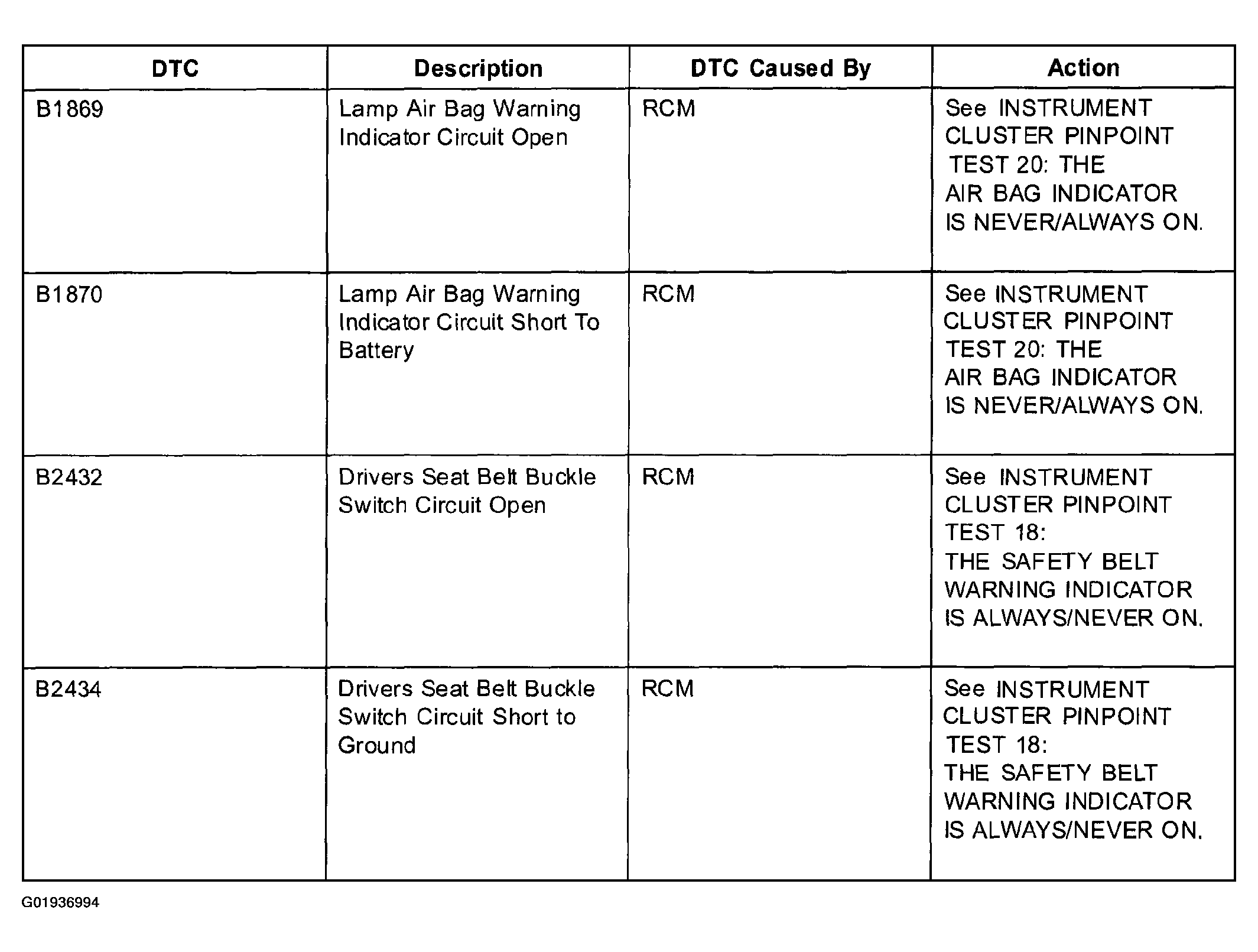

Fig 4: Restraint Control Module (RCM) Diagnostic Trouble Code Index (B1869-B2434)

Courtesy of MAZDA MOTORS CORP.

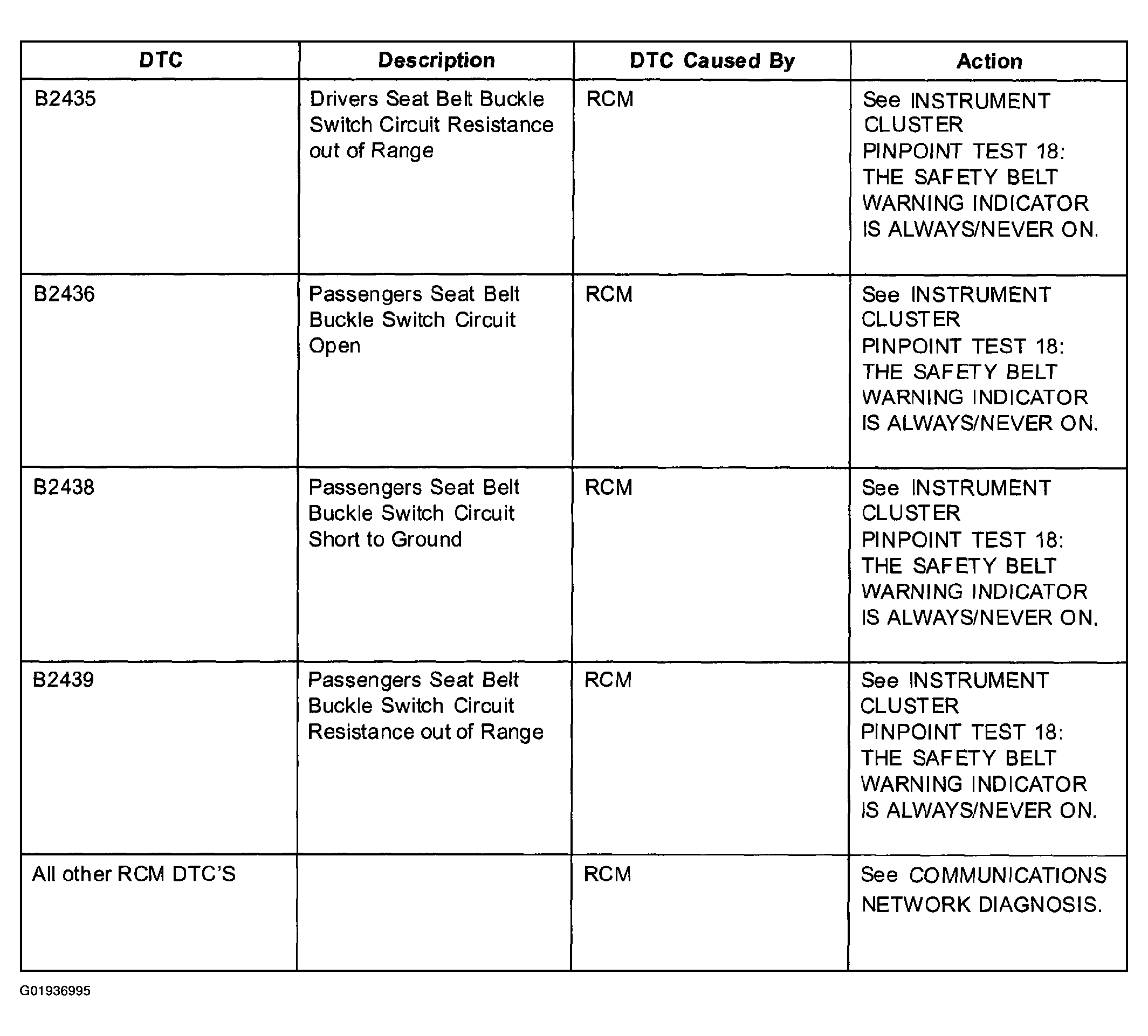

Fig 5: Restraint Control Module (RCM) Diagnostic Trouble Code Index (B2435-B2439)

Courtesy of MAZDA MOTORS CORP.

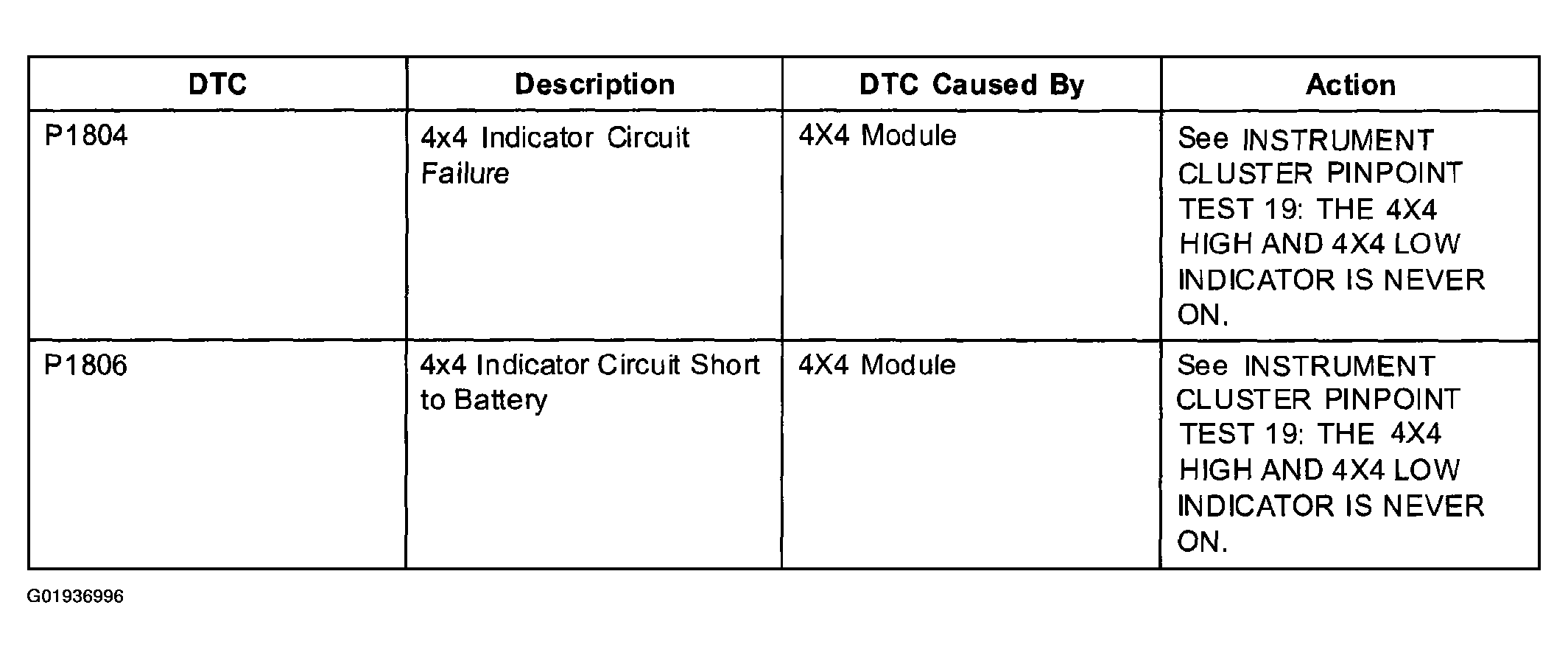

Fig 6: Four Wheel Drive (4X4) Module Diagnostic Trouble Code Index (P1804-P1806)

Courtesy of MAZDA MOTORS CORP.

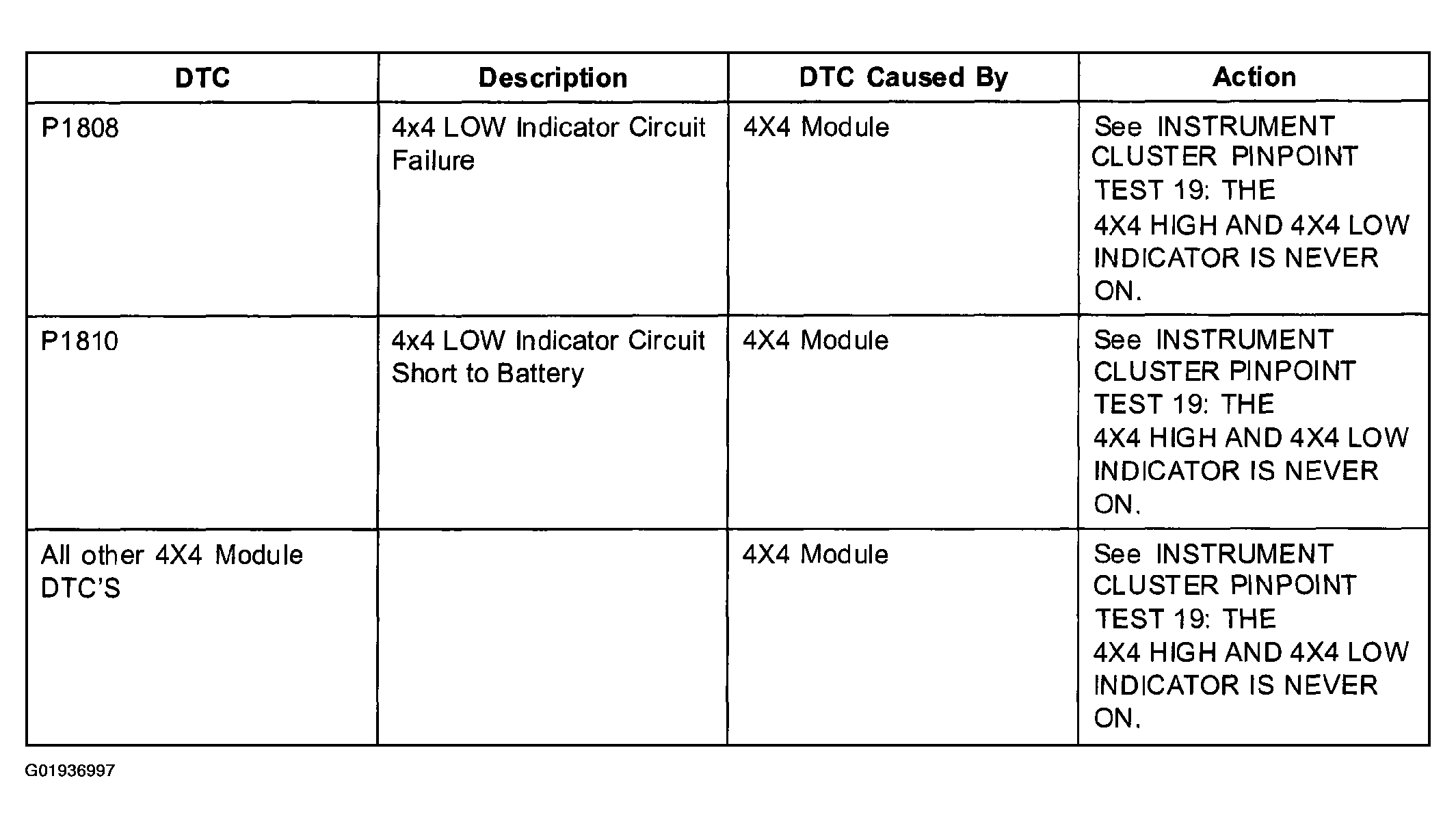

Fig 7: Four Wheel Drive (4X4) Module Diagnostic Trouble Code Index (P1808-P1810)

Courtesy of MAZDA MOTORS CORP.
