Module Does Not Respond To The WDS Tester - Diagnostic Monitor

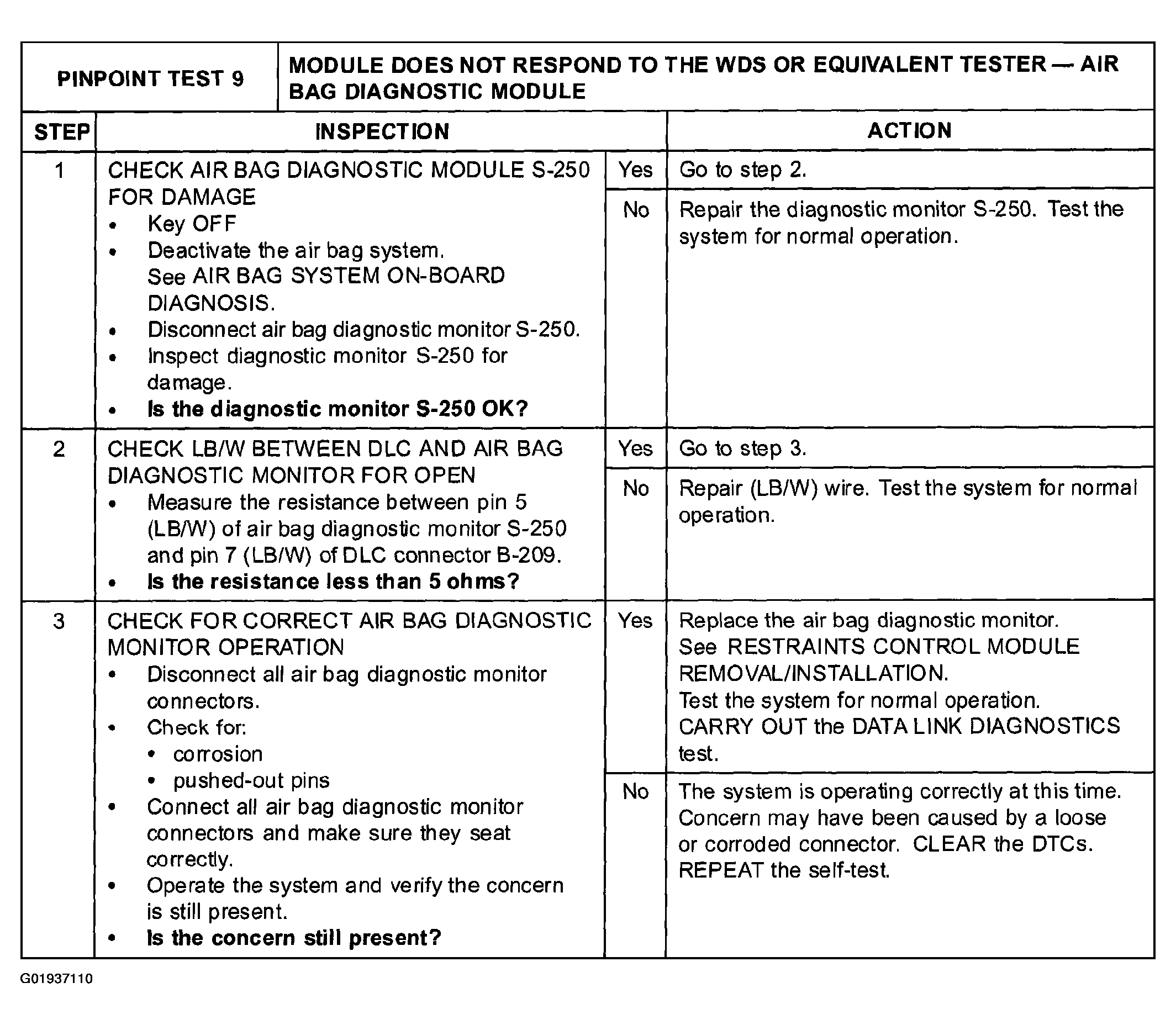

Fig 1: Pinpoint Test 9: Air Bag Diagnostic Module Does Not Respond To WDS Tester Inspection Table (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

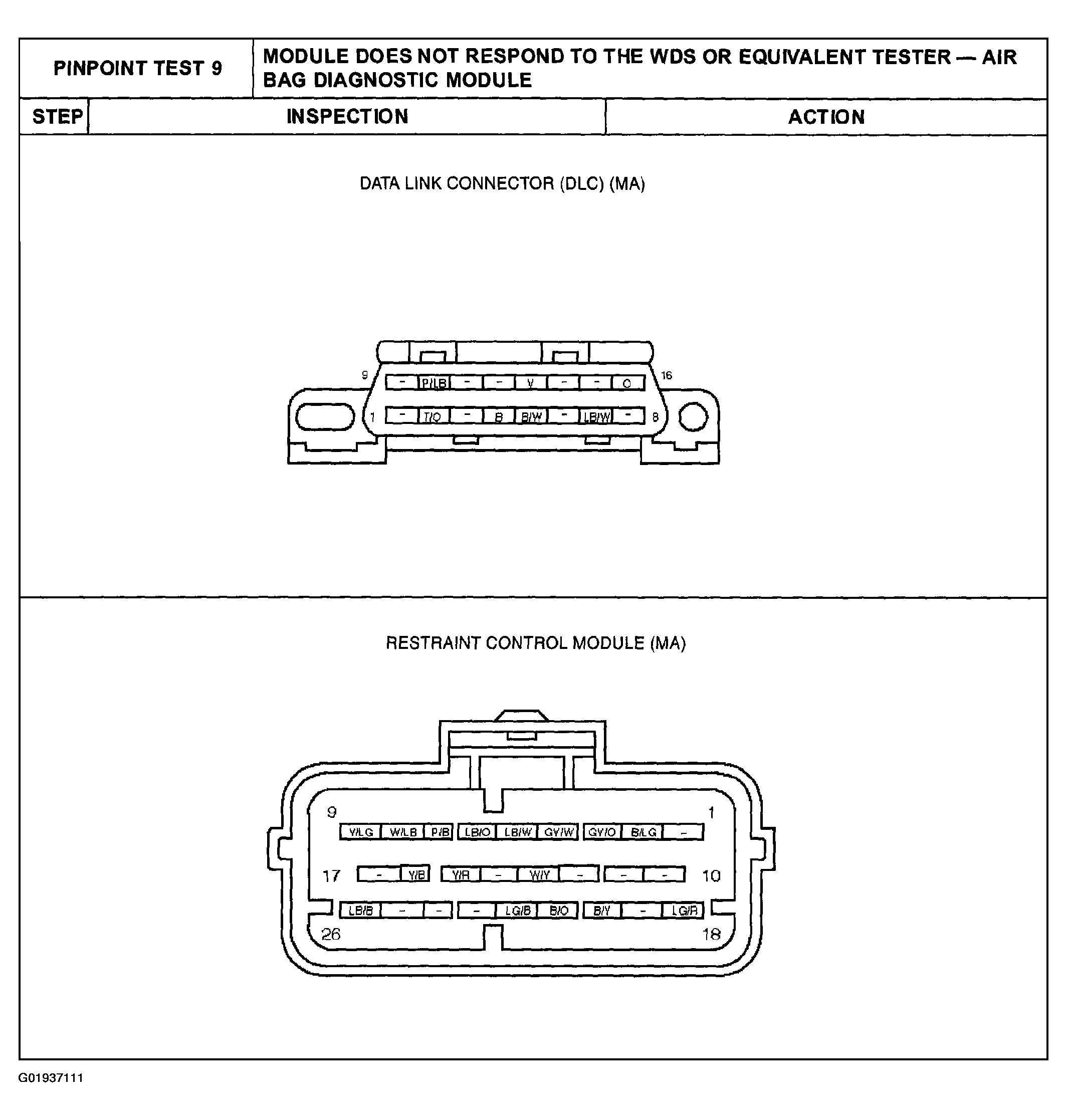

Fig 2: Identifying Data Link Connector (MA) And Restraint Control Module (MA) Connector Terminal Wire Color

Courtesy of MAZDA MOTORS CORP.
