Symptom Troubleshooting Chart - Anti-Lock Brake System (Abs)

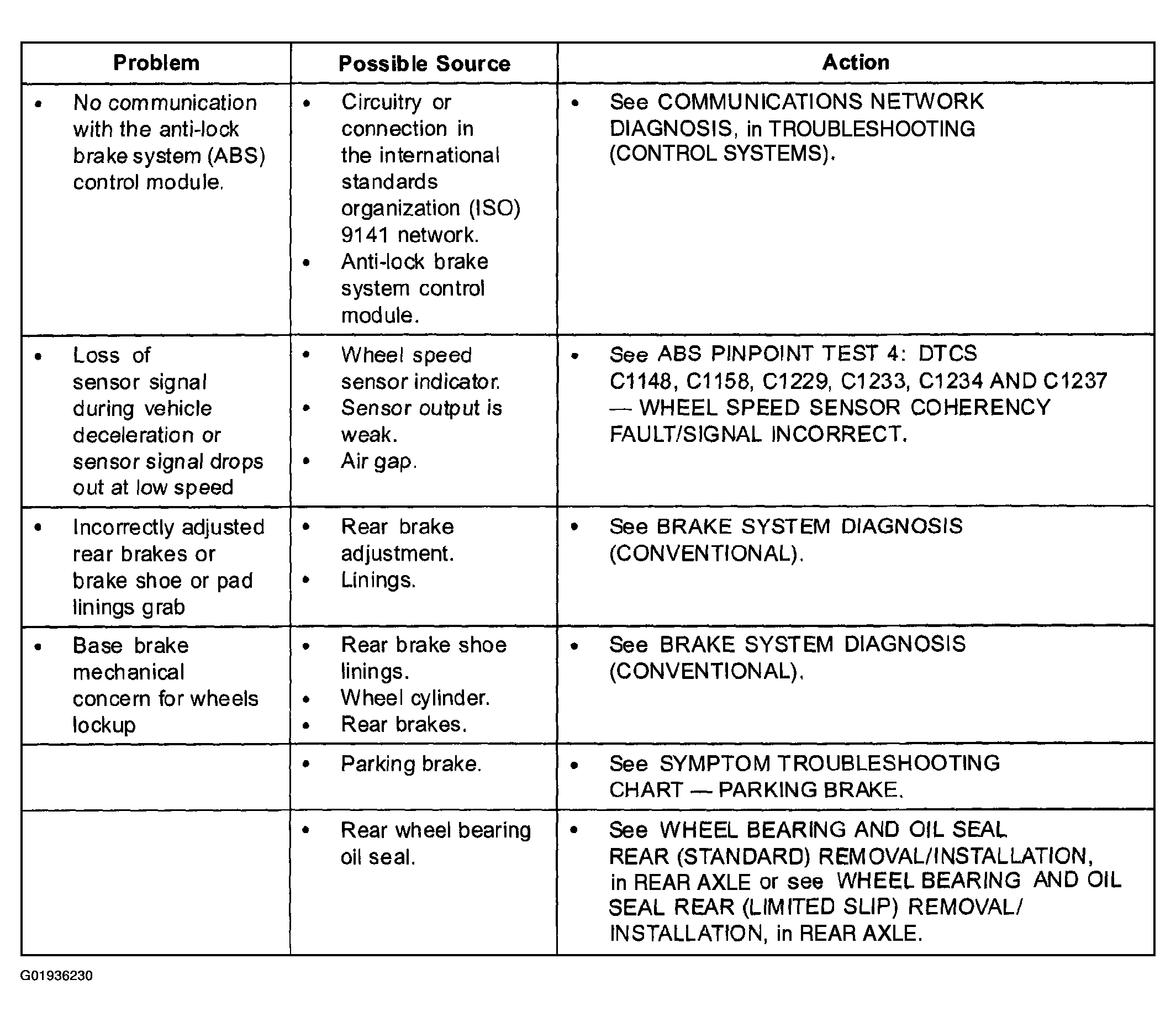

Fig 1: Symptom Troubleshooting Chart - Anti-Lock Brake System (1 Of 3)
G01936230Courtesy of MAZDA MOTORS CORP.

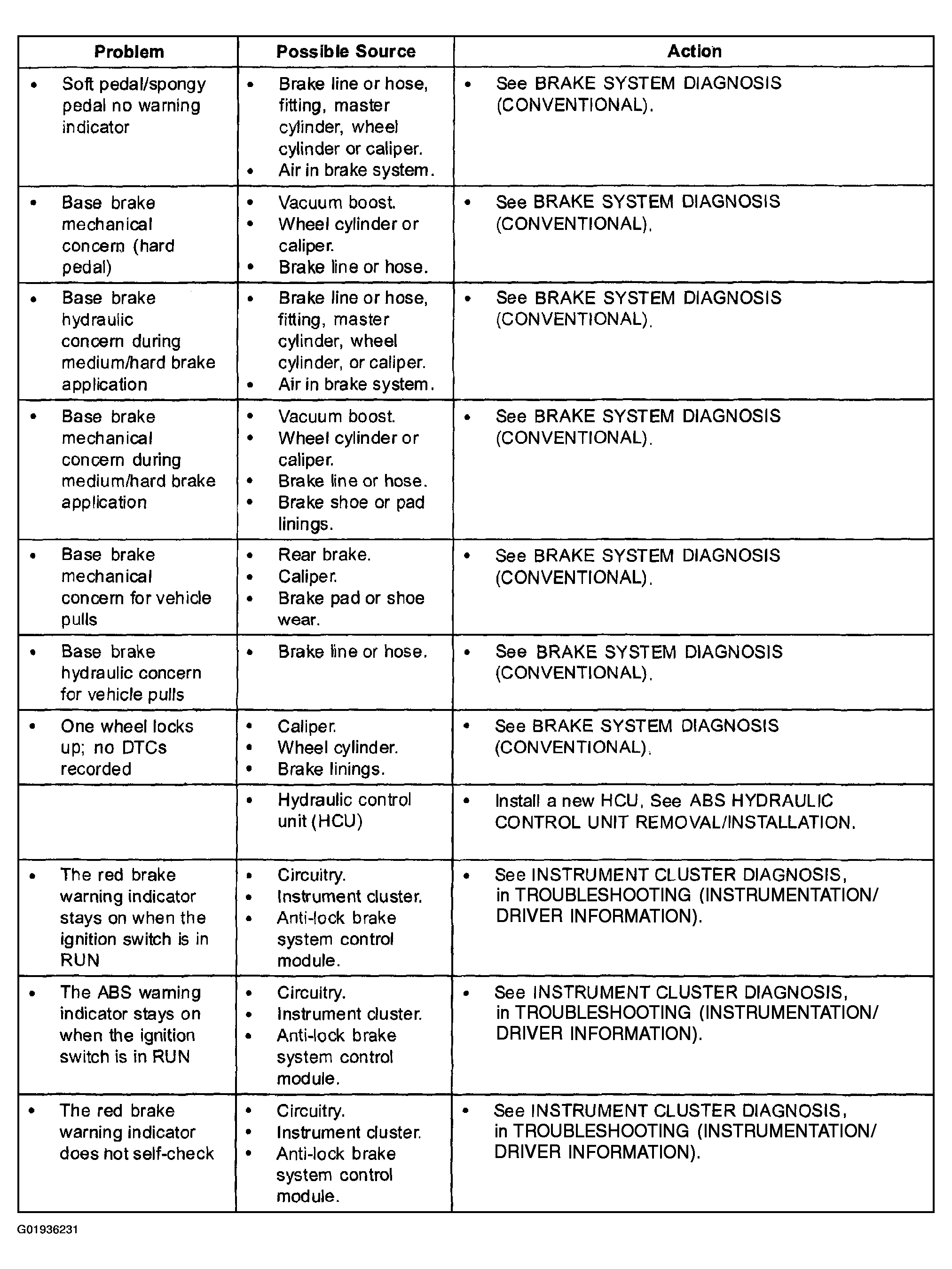

Fig 2: Symptom Troubleshooting Chart - Anti-Lock Brake System (2 Of 3)
G01936231Courtesy of MAZDA MOTORS CORP.

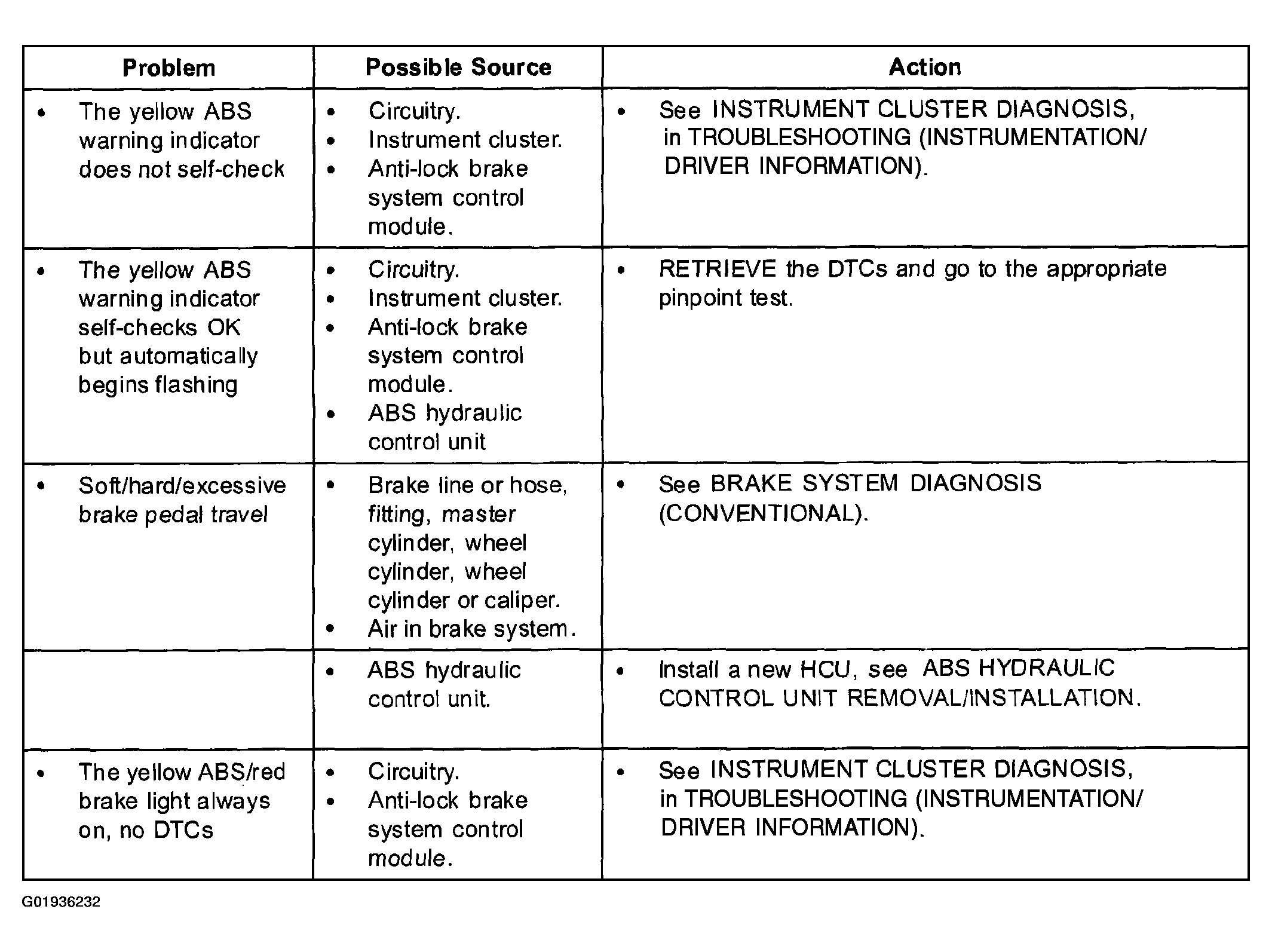

Fig 3: Symptom Troubleshooting Chart - Anti-Lock Brake System (3 Of 3)
G01936232Courtesy of MAZDA MOTORS CORP.
