Symptom Troubleshooting [Brakes)
>>
Parking Brake System Pinpoint Test 2: Parking Brake Will Not Release
Parking Brake System Pinpoint Test 2: Parking Brake Will Not Release

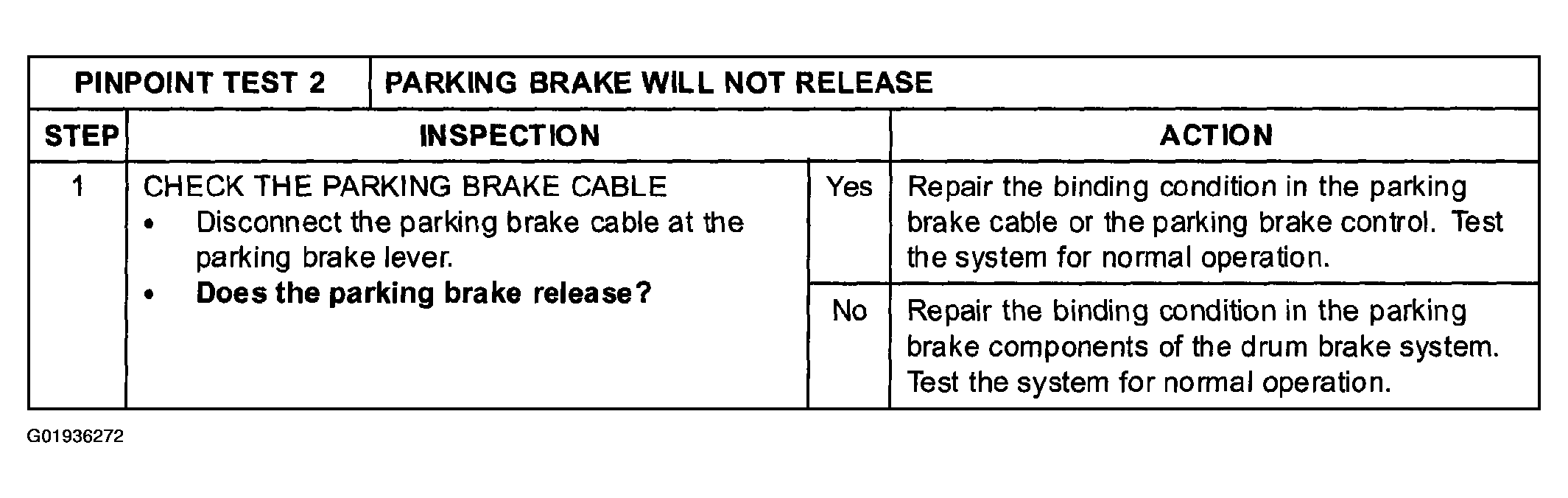

Fig 1: Parking Brake System Pinpoint Test 2: Parking Brake Will Not Release
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
