Symptom Troubleshooting [Brakes)
>>
Brake System Pinpoint Test 3: Excessive/Erratic Brake Pedal Travel
Brake System Pinpoint Test 3: Excessive/Erratic Brake Pedal Travel

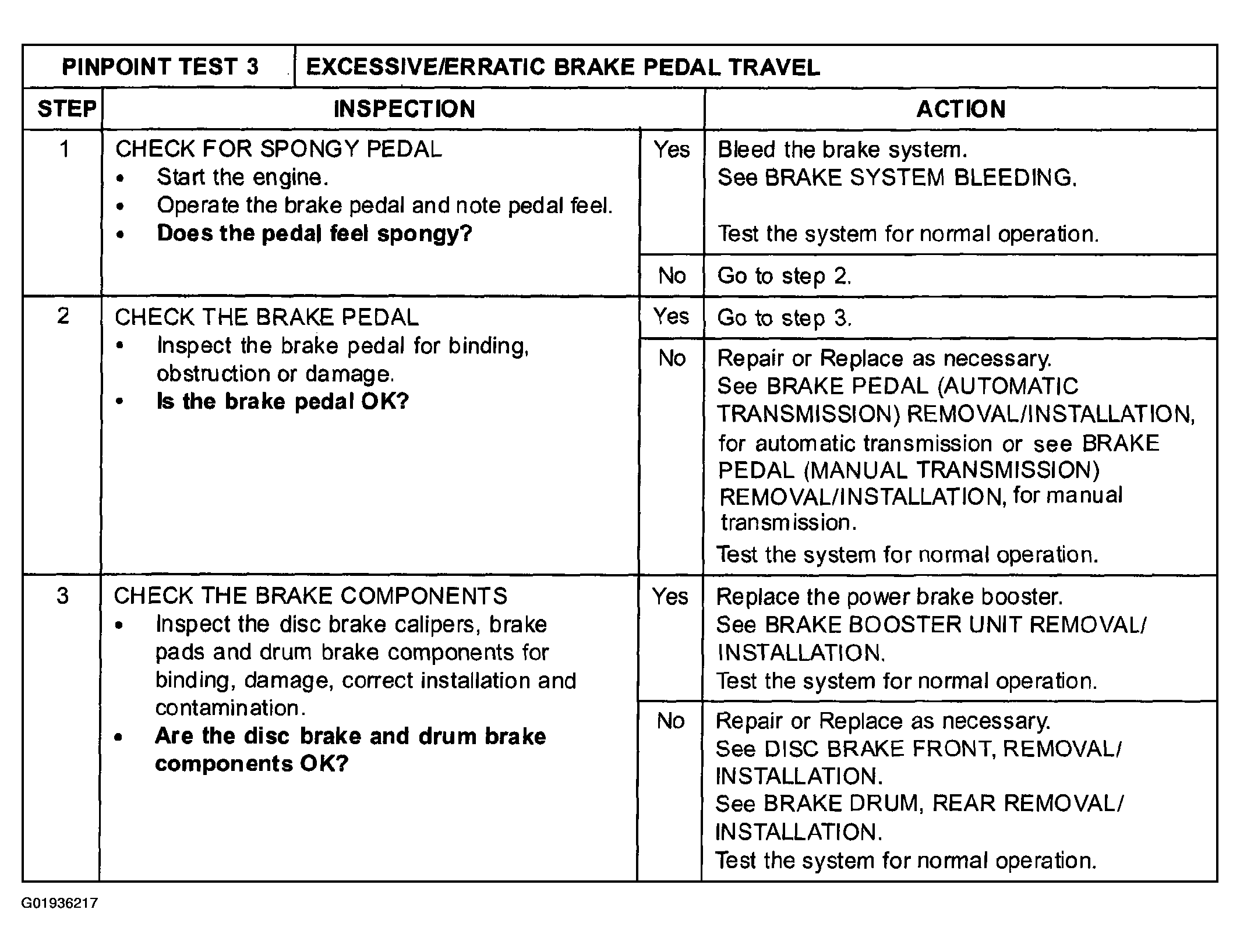

Fig 1: Brake System Pinpoint Test 3: Excessive/Erratic Brake Pedal Travel
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
