Brake System Pinpoint Test 2: Brakes Lock Up During Light Brake Pedal Force

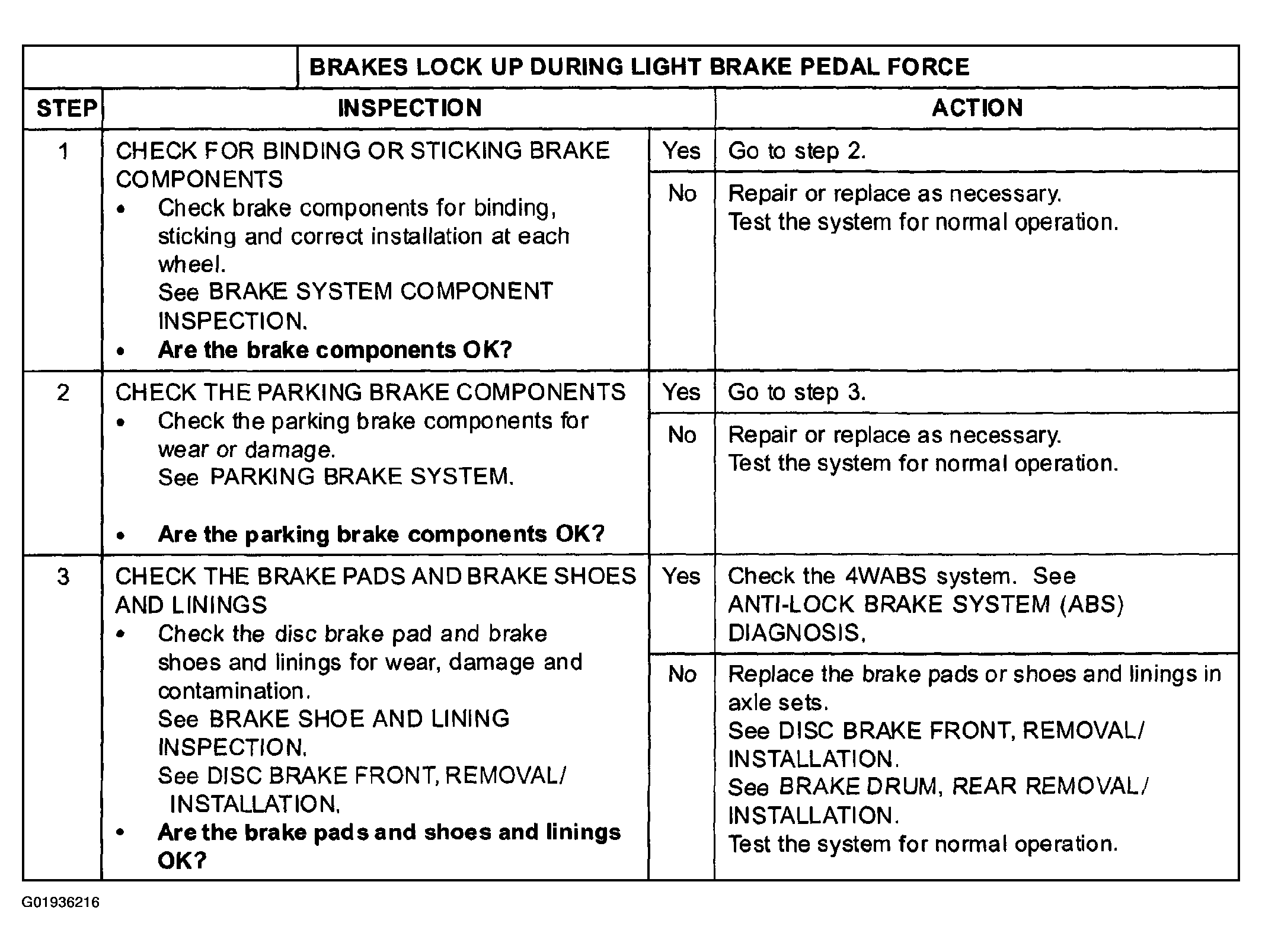

Fig 1: Brake System Pinpoint Test 2: Brakes Lock Up During Light Brake Pedal Force

G01936216

Courtesy of MAZDA MOTORS CORP.
