Brake System Pinpoint Test 1: Brakes Pull Or Drift

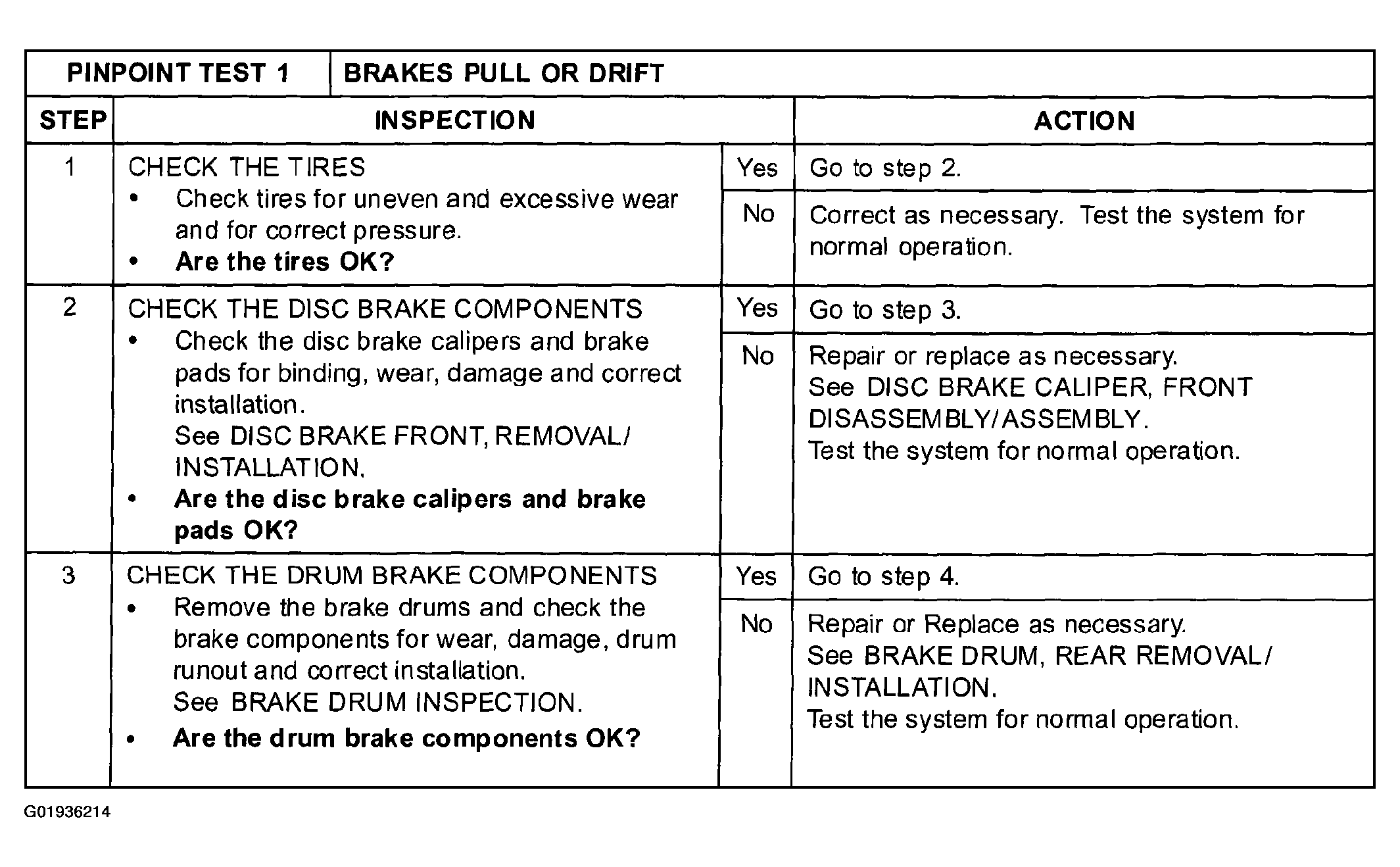

Fig 1: Brake System Pinpoint Test 1: Brakes Pull Or Drift (Steps 1-3)
G01936214Courtesy of MAZDA MOTORS CORP.

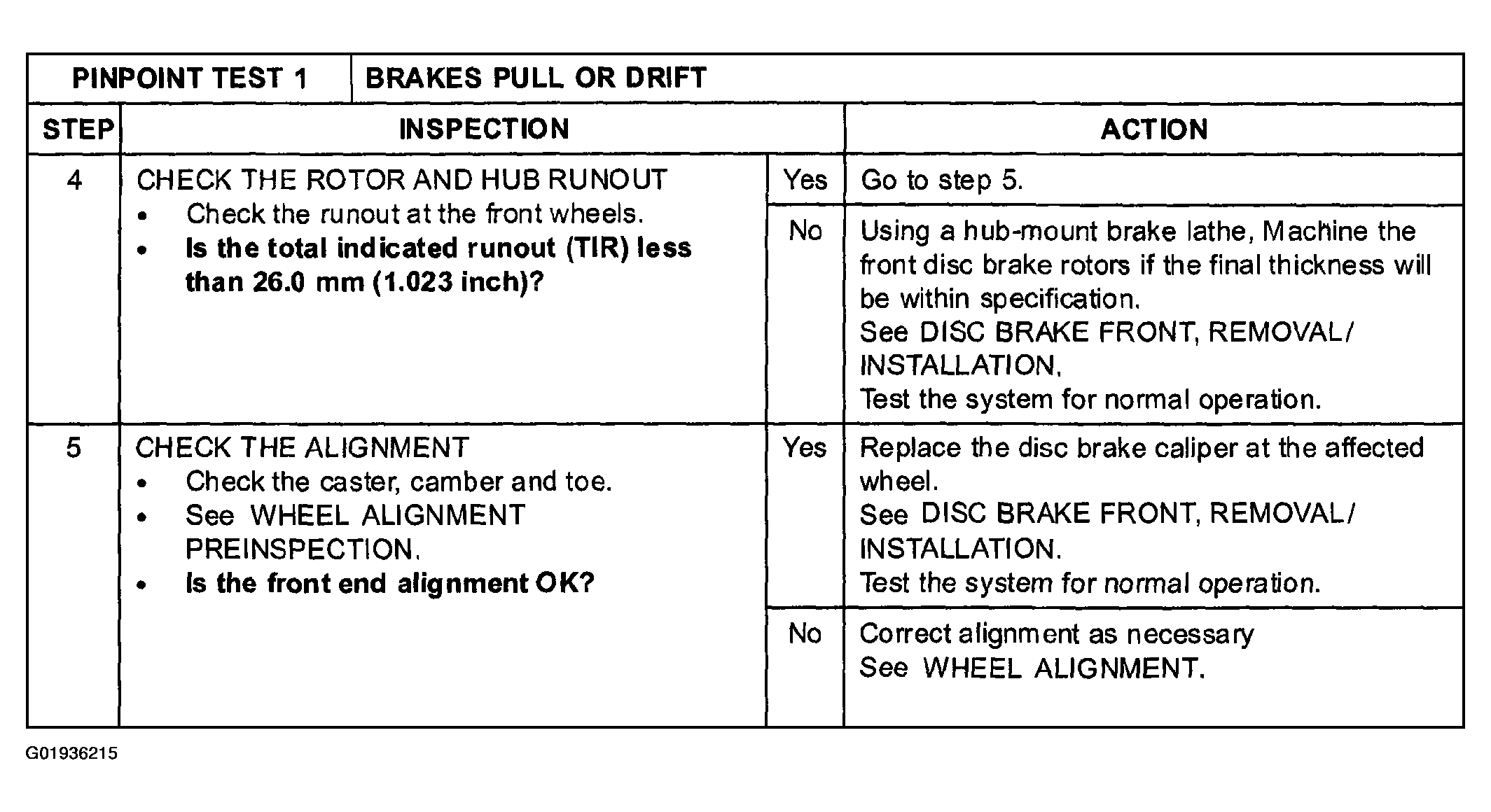

Fig 2: Brake System Pinpoint Test 1: Brakes Pull Or Drift (Steps 4-5)
G01936215Courtesy of MAZDA MOTORS CORP.
