PID Index

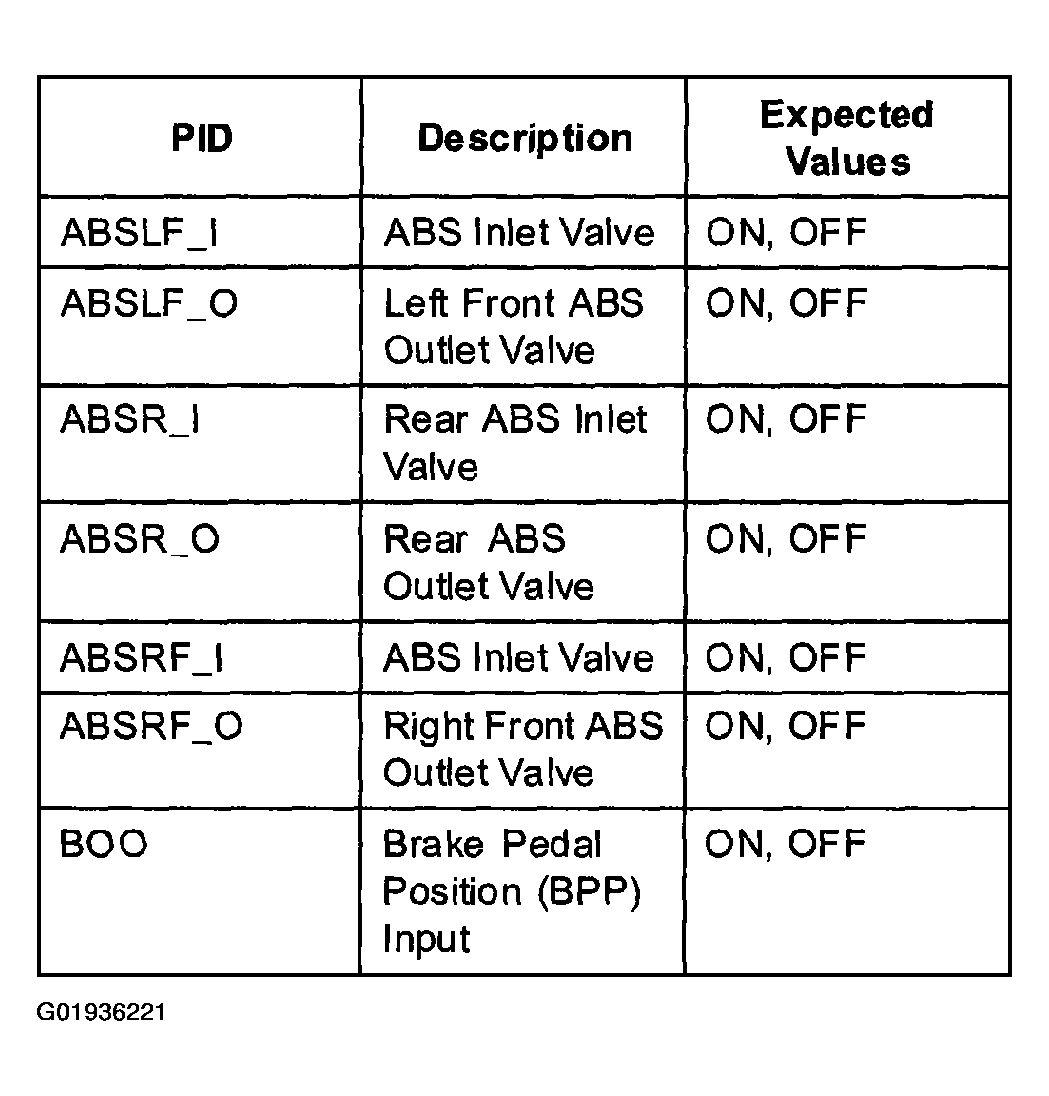

Fig 1: PID Index (1 Of 2)

G01936221

Courtesy of MAZDA MOTORS CORP.

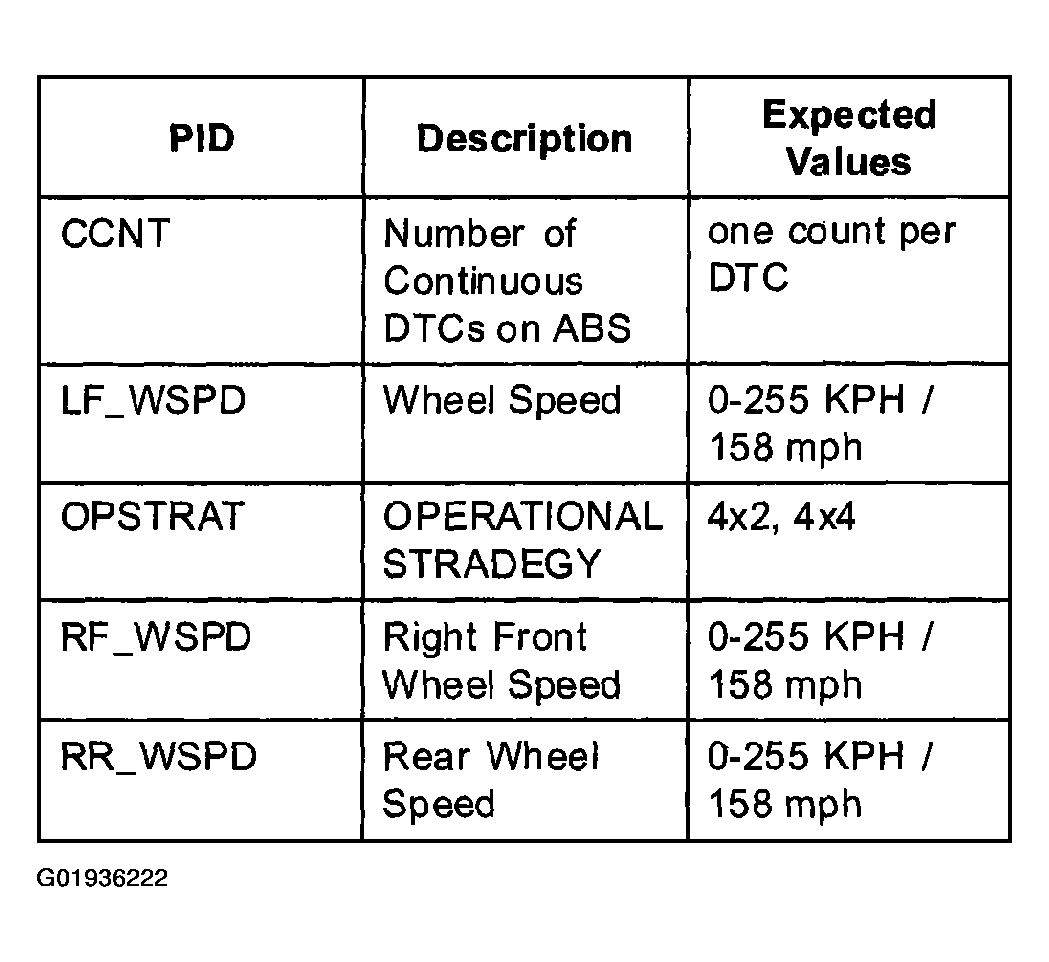

Fig 2: PID Index (2 Of 2)

G01936222

Courtesy of MAZDA MOTORS CORP.
