4WABS Quick Chart

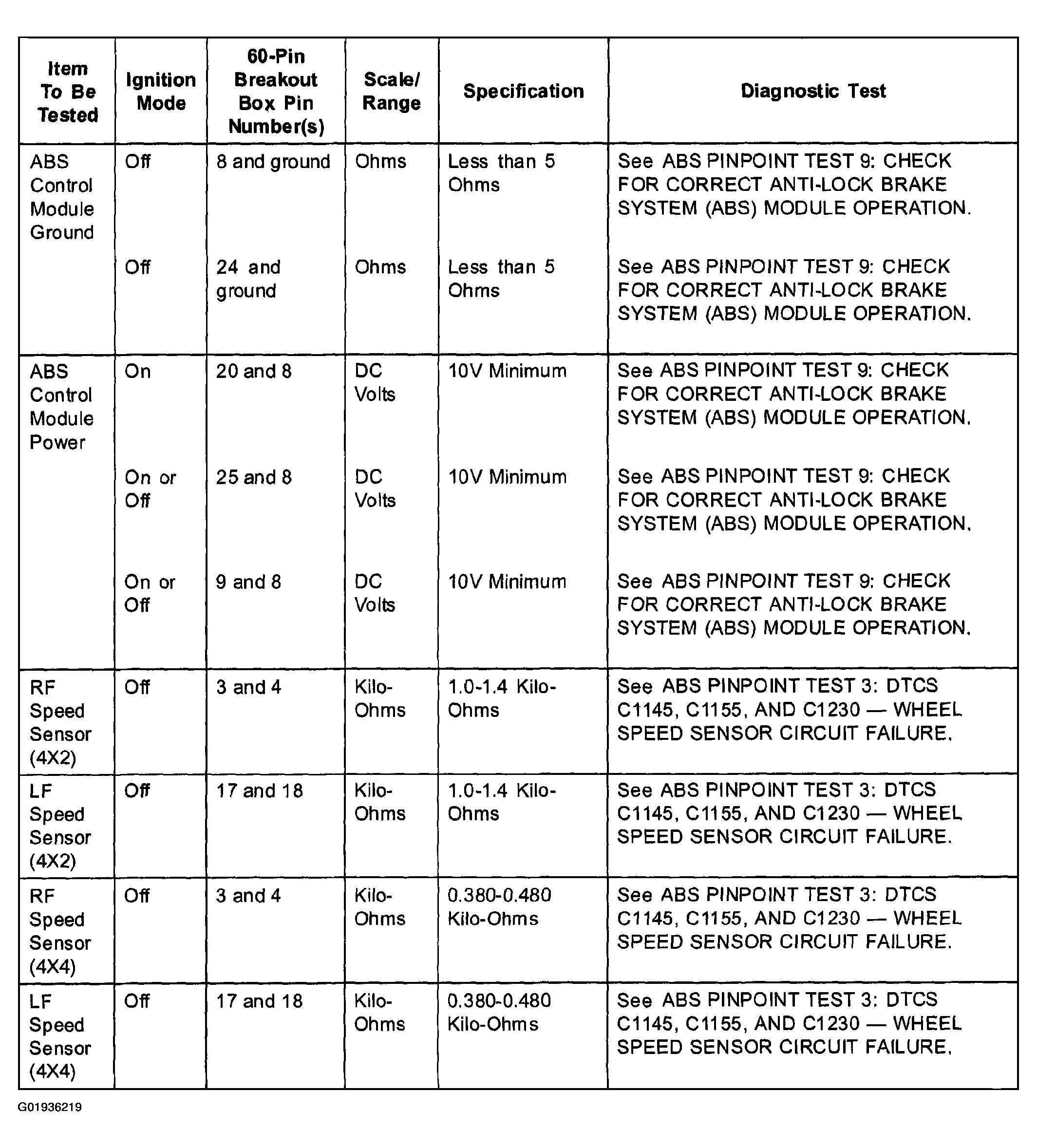

Fig 1: 4WABS Quick Chart (1 Of 2)

G01936219

Courtesy of MAZDA MOTORS CORP.

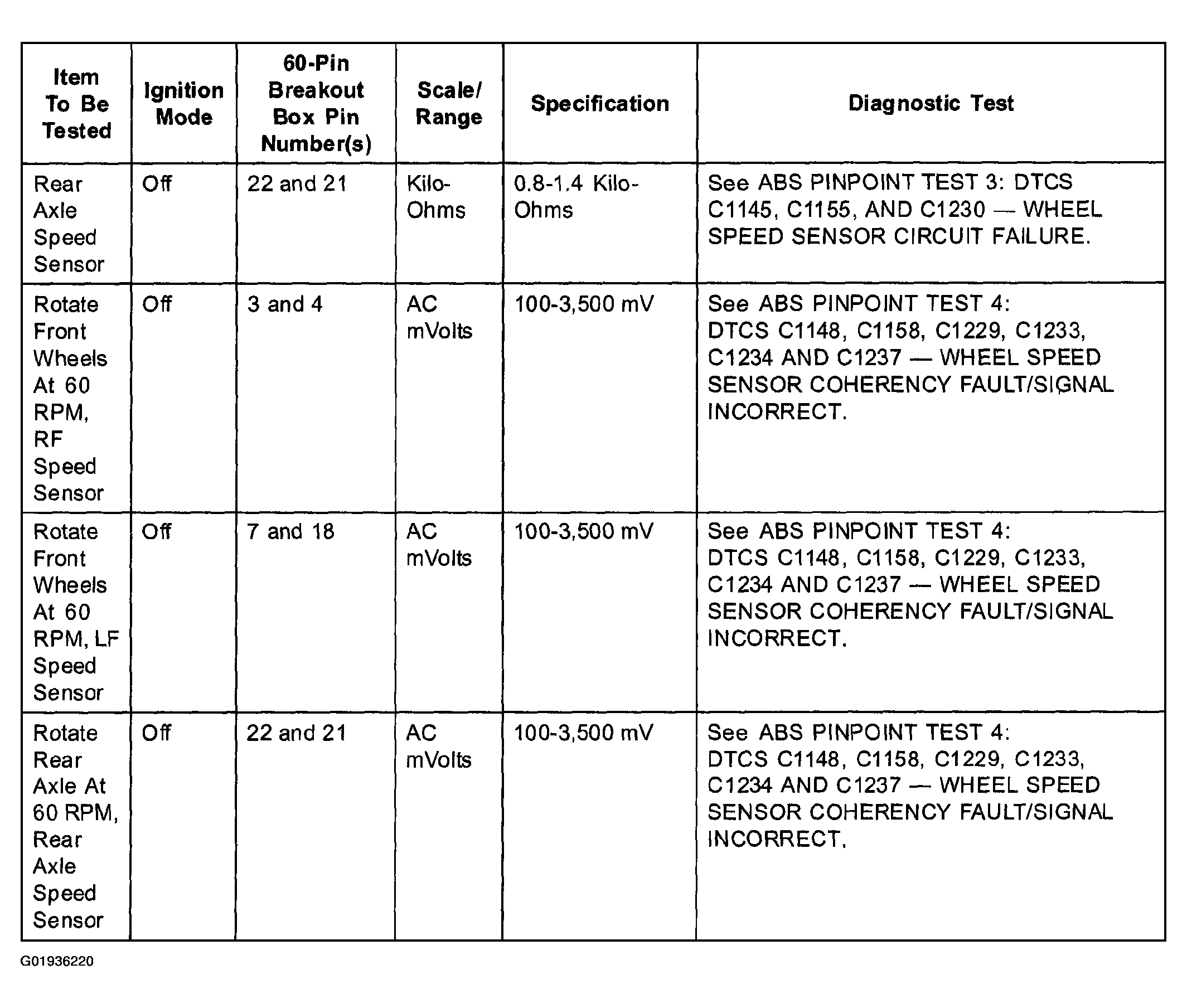

Fig 2: 4WABS Quick Chart (2 Of 2)

G01936220

Courtesy of MAZDA MOTORS CORP.
