Abs Pinpoint Test 1: No Communication With The Anti-Lock Brake System (Abs) Module

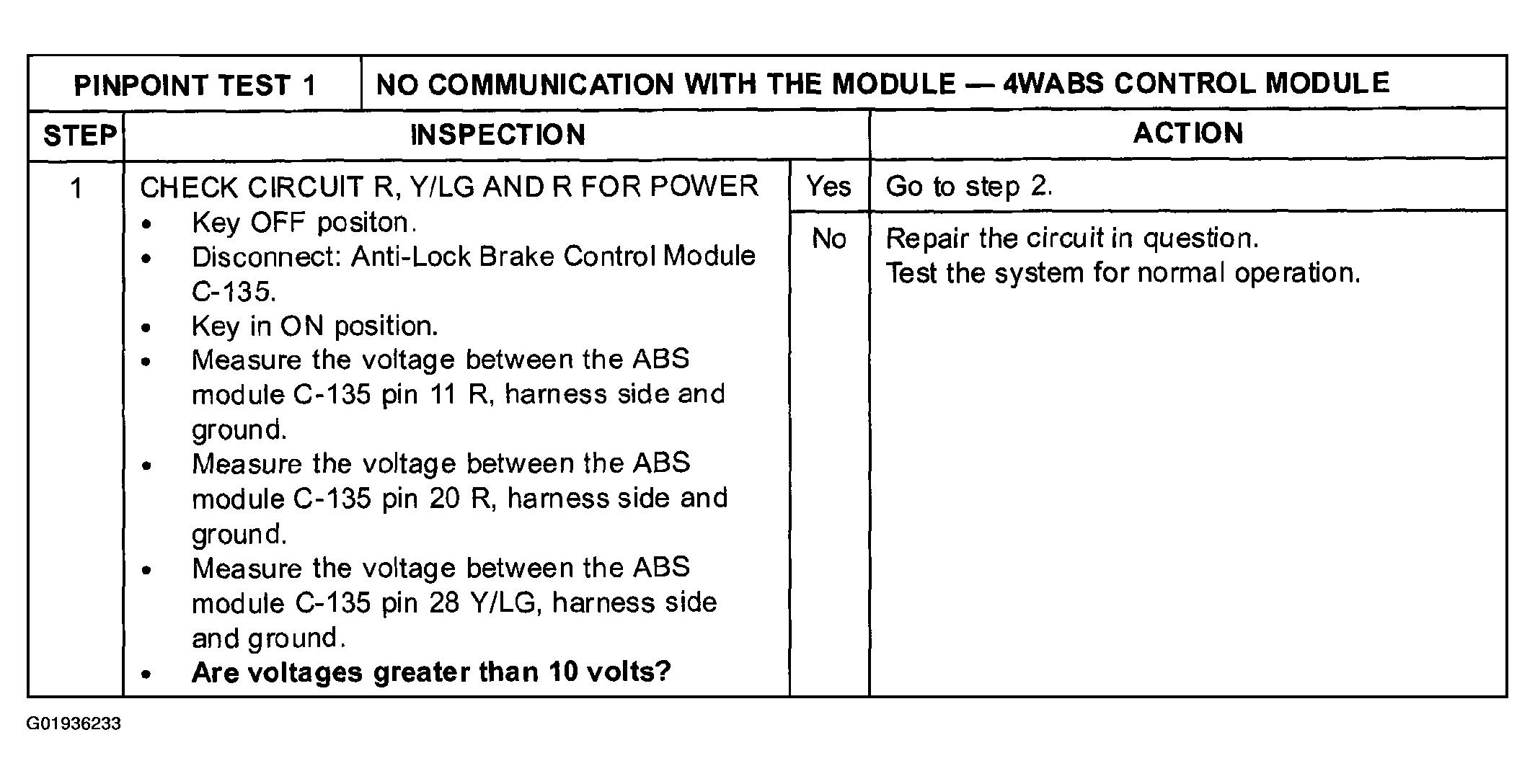

Fig 1: ABS Pinpoint Test 1: No Communication With The Anti-Lock Brake System (ABS) Module (Step 1)

Courtesy of MAZDA MOTORS CORP.

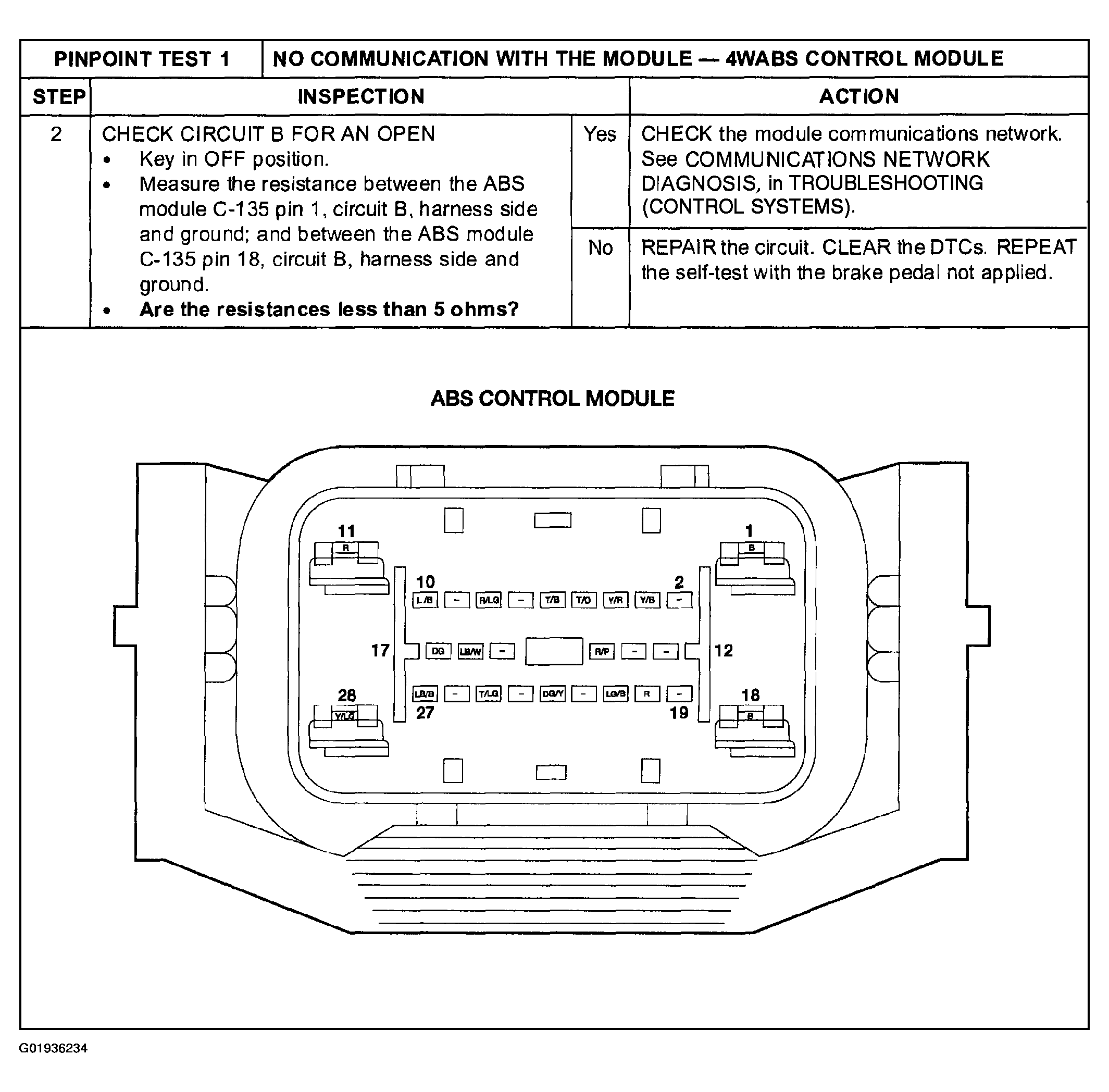

Fig 2: ABS Pinpoint Test 1: No Communication With The Anti-Lock Brake System (ABS) Module (Step 2 & Identifying ABS Control Module Connector Terminals)

Courtesy of MAZDA MOTORS CORP.

Fig 3: ABS Module Pin & Circuit Wire Color Table

Courtesy of MAZDA MOTORS CORP.
