Instrument Cluster Pinpoint Test 3: Incorrect Oil Pressure Warning Lamp Indication

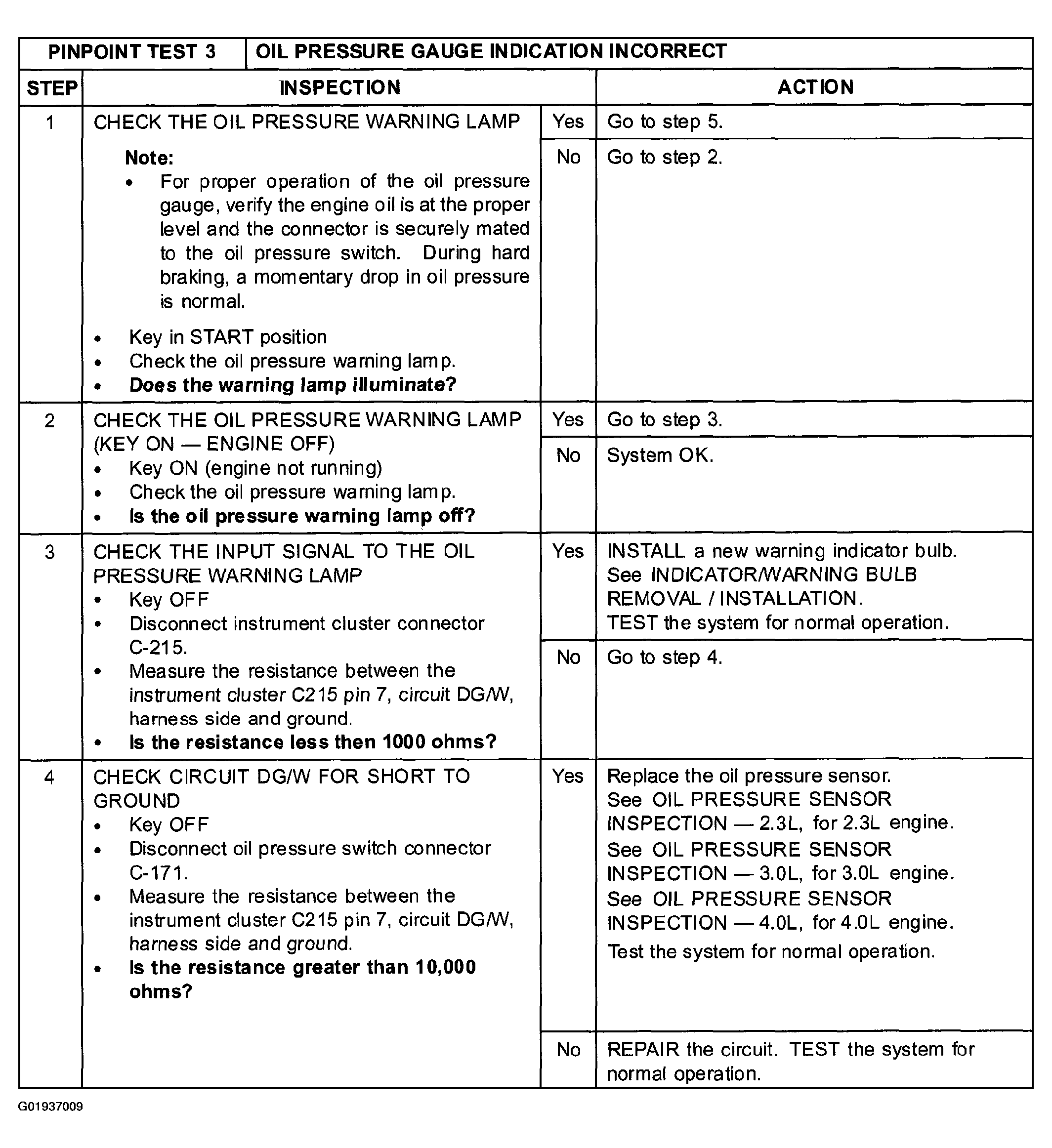

Fig 1: Instrument Cluster Pinpoint Test 3: Incorrect Oil Pressure Warning Lamp Indication (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

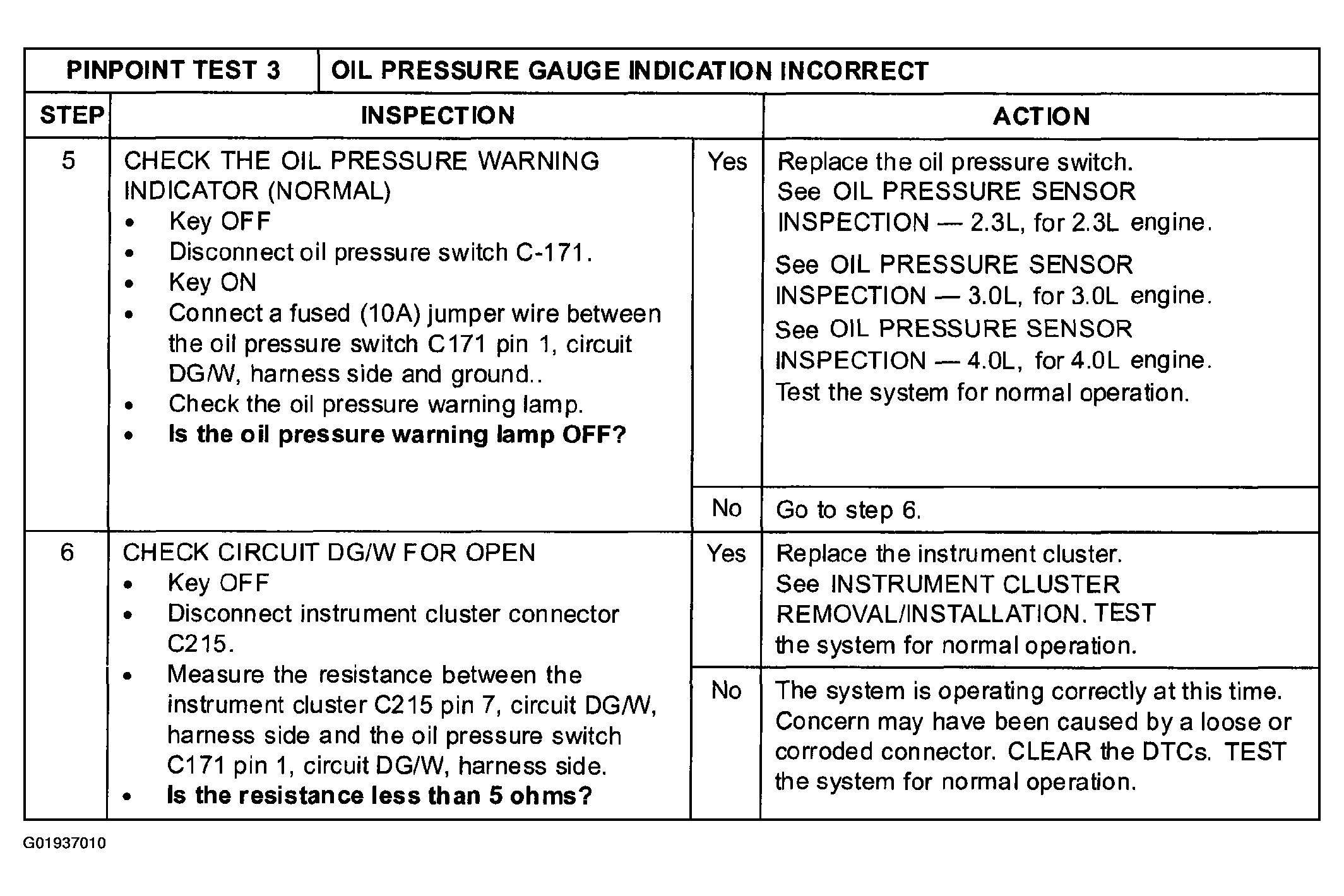

Fig 2: Instrument Cluster Pinpoint Test 3: Incorrect Oil Pressure Warning Lamp Indication (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.

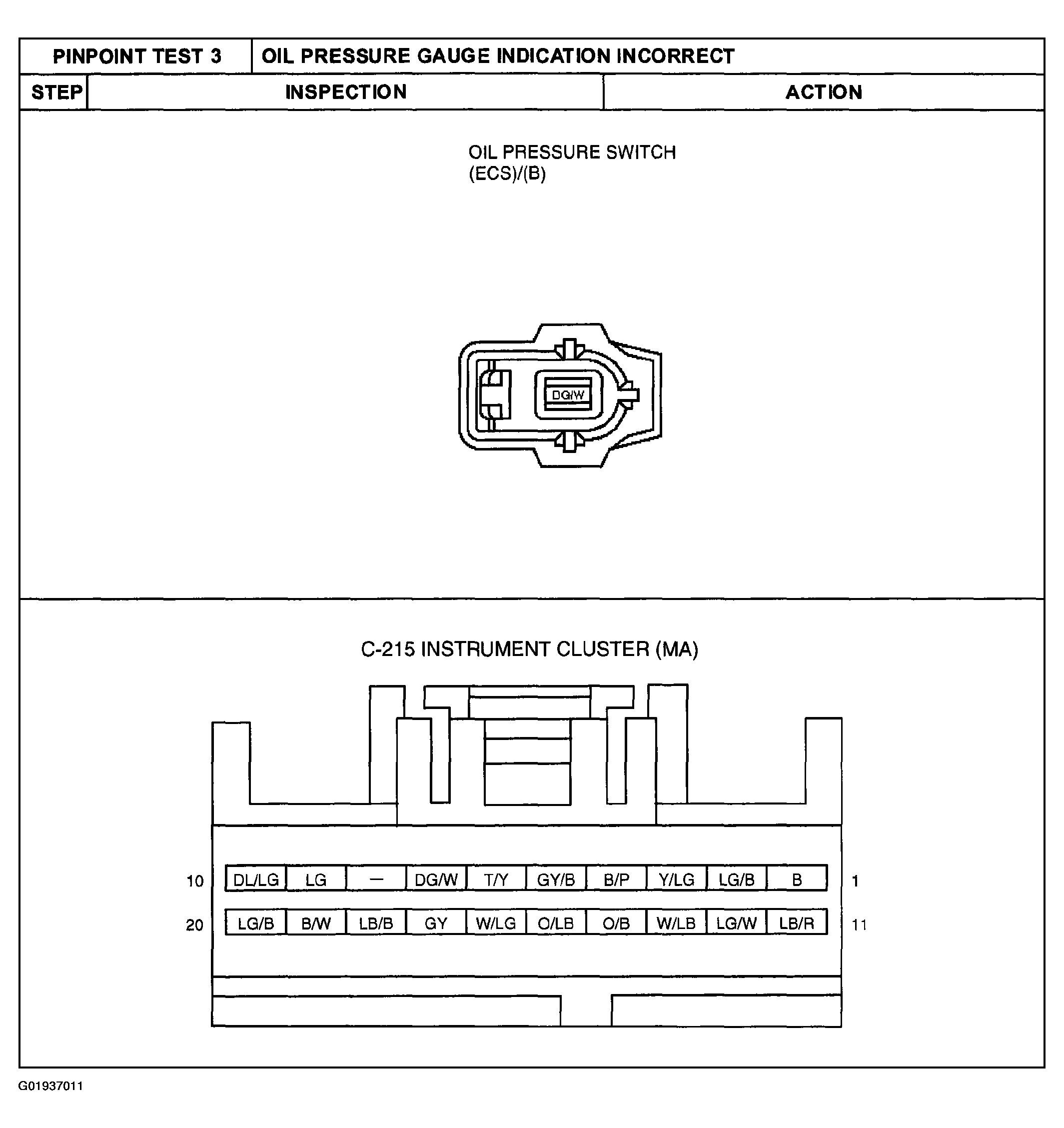

Fig 3: Identifying Oil Pressure Switch & C-215 Instrument Cluster Connector Terminals Wire Color

Courtesy of MAZDA MOTORS CORP.
