Instrument Cluster Instrument Cluster Pinpoint Test 6: Tachometer Is Inoperative

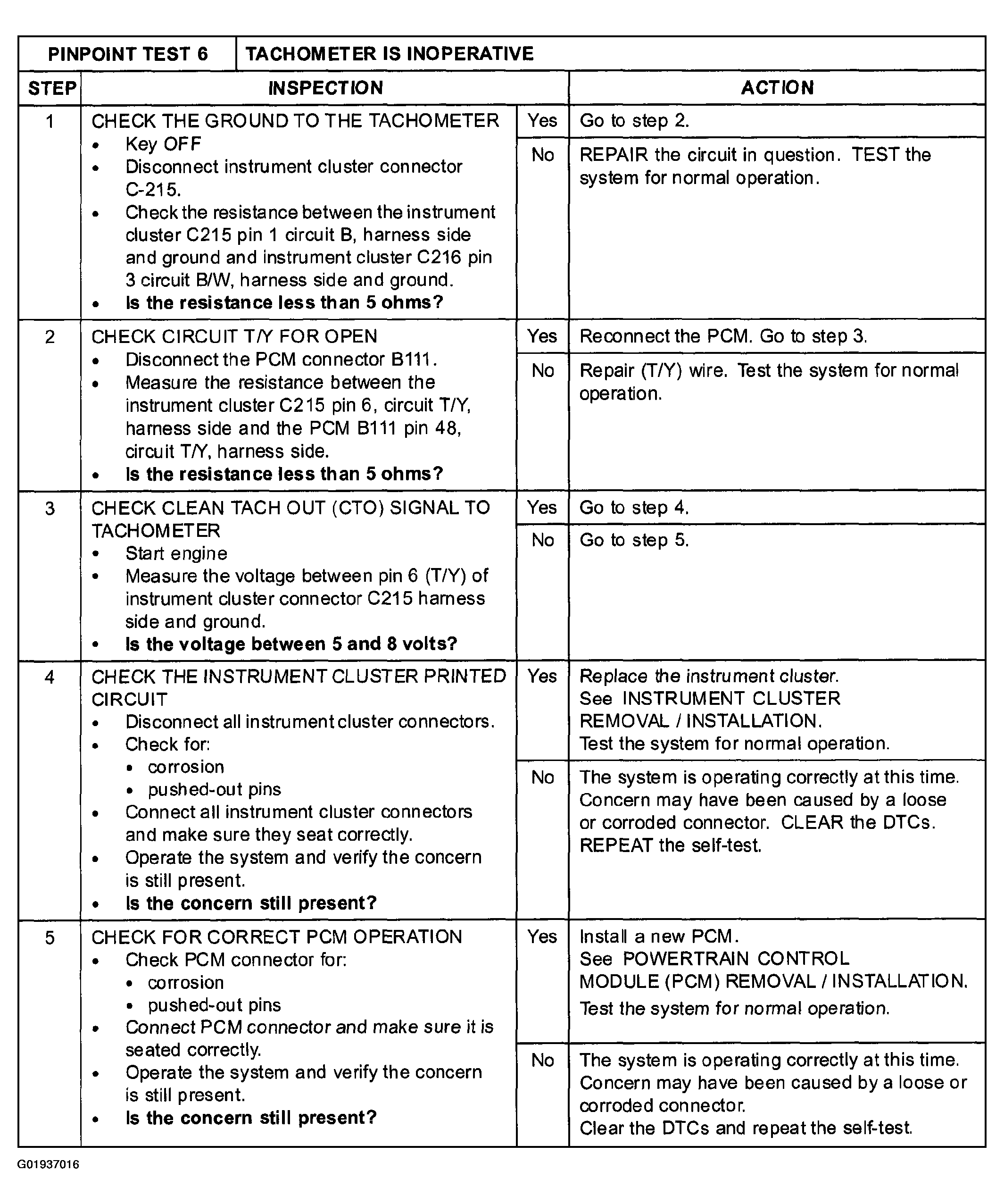

Fig 1: Instrument Cluster Instrument Cluster Pinpoint Test 6: Tachometer Is Inoperative
G01937016Courtesy of MAZDA MOTORS CORP.

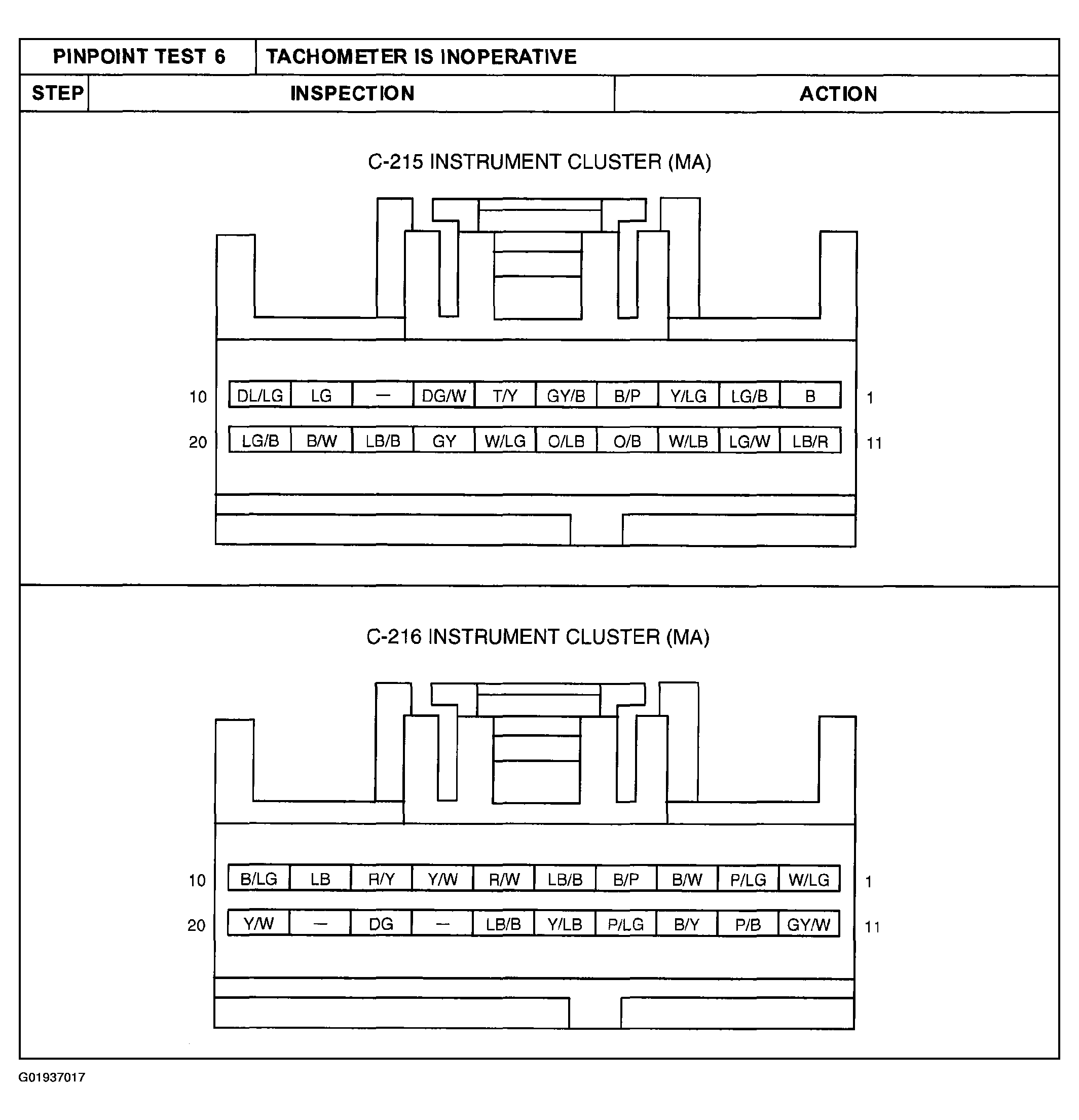

Fig 2: Identifying C-215 & C-216 Instrument Cluster Connector Terminals Wire Color
G01937017Courtesy of MAZDA MOTORS CORP.
