B2300 SE
>>
Repair and Diagnosis
>>
Brakes
>>
Mechanical - Hydraulic
>>
Symptom Troubleshooting [Brakes)
>>
Symptom Troubleshooting Chart - Conventional Brake System
Symptom Troubleshooting Chart - Conventional Brake System

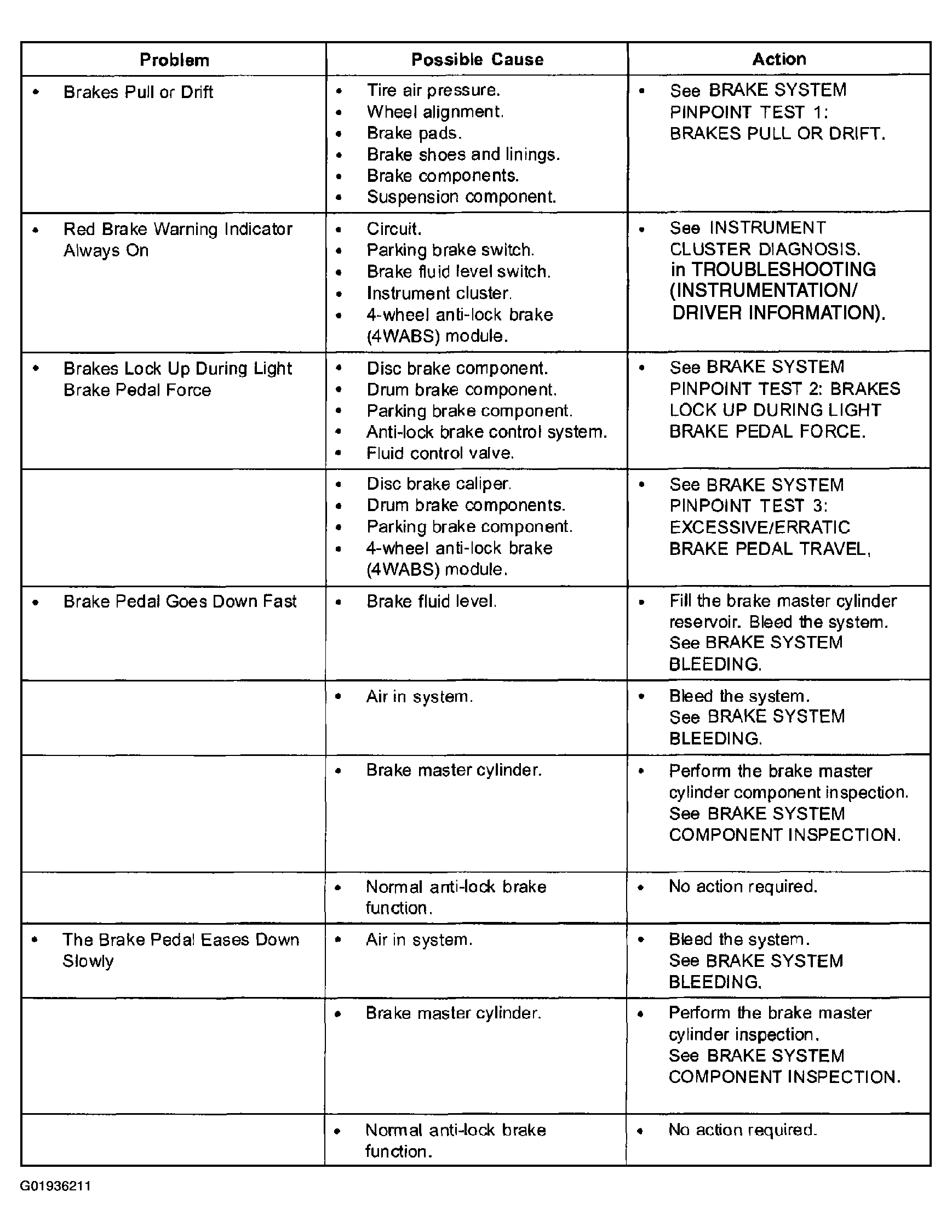

Fig 1: Symptom Troubleshooting Chart - Conventional Brake System (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

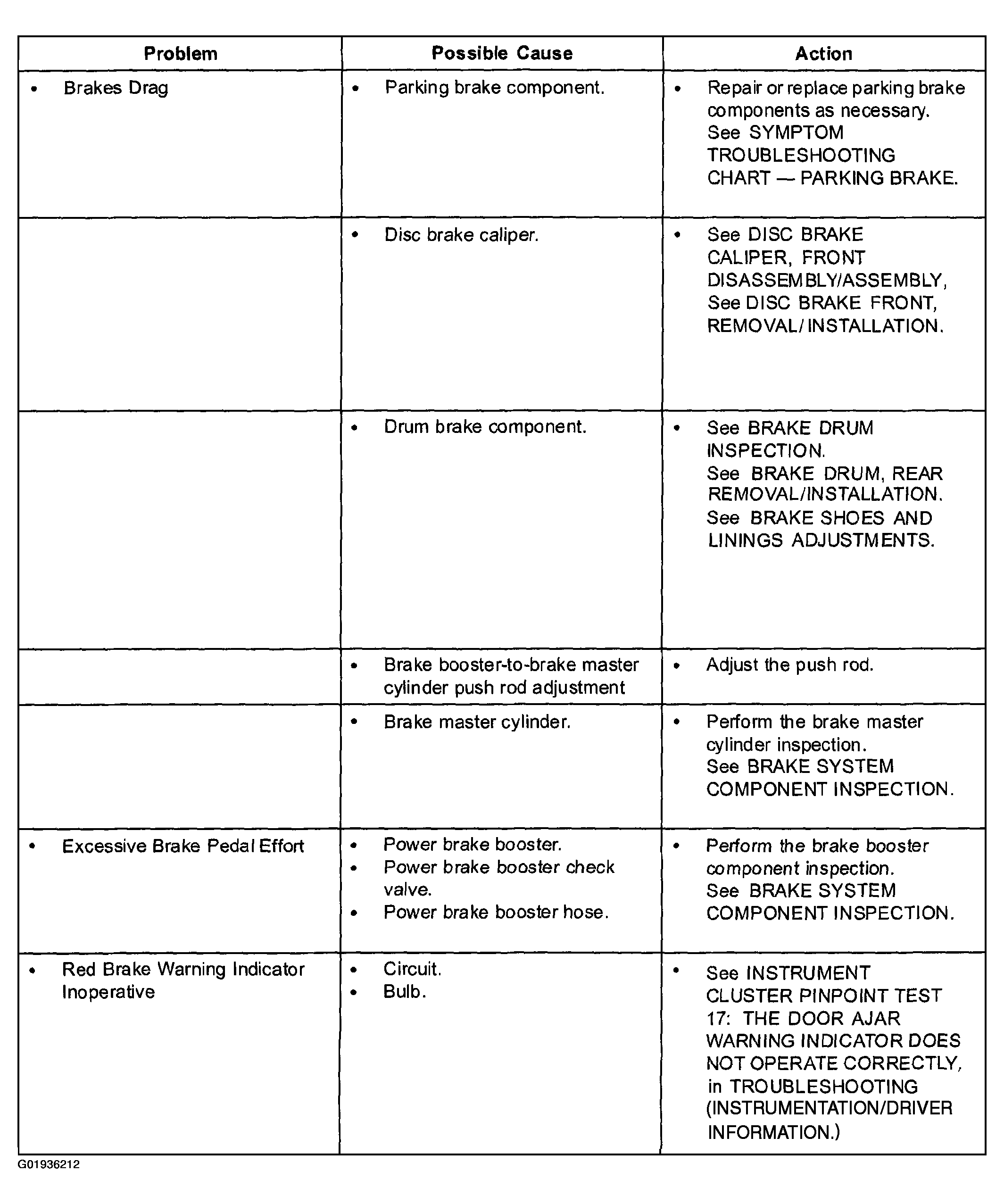

Fig 2: Symptom Troubleshooting Chart - Conventional Brake System (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

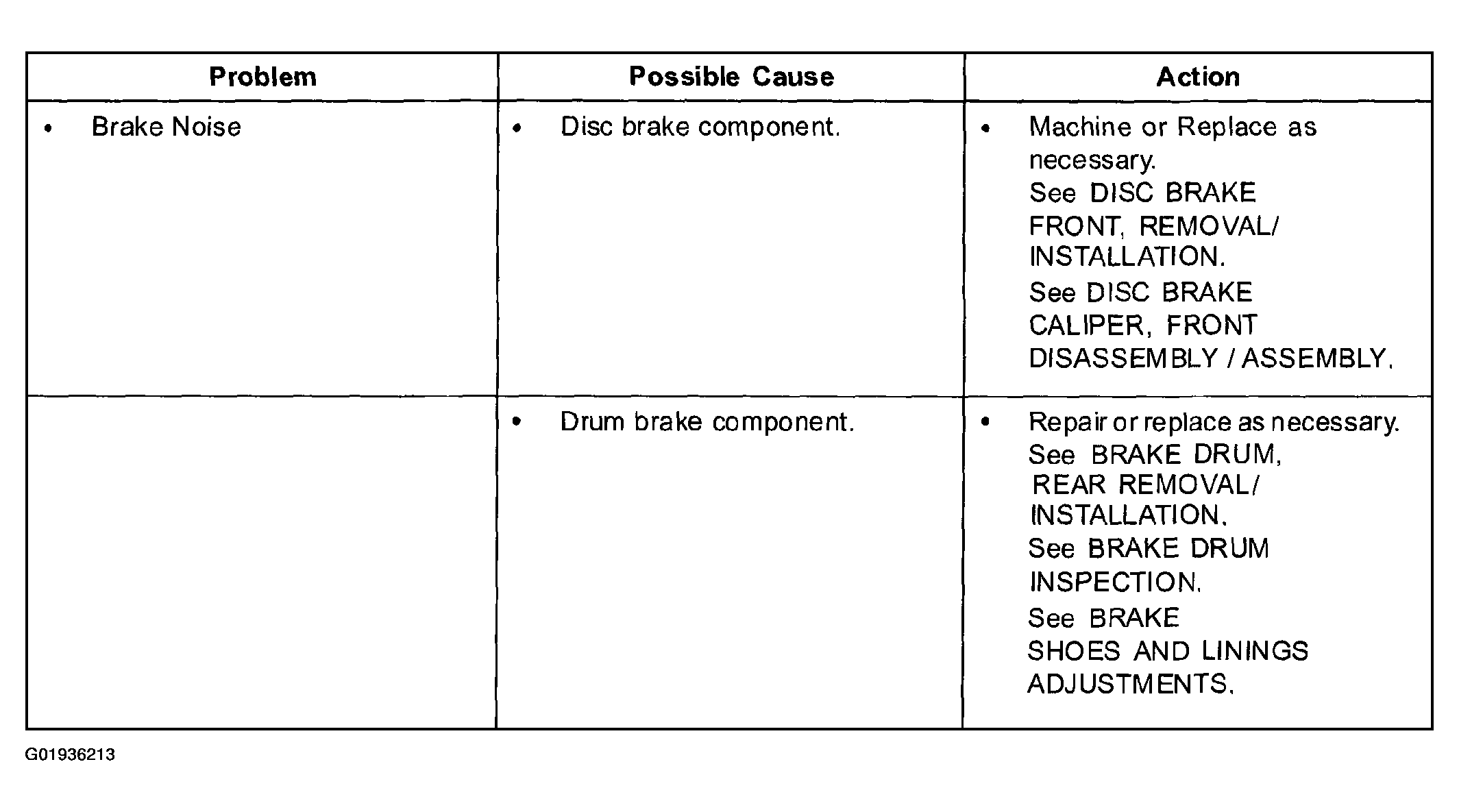

Fig 3: Symptom Troubleshooting Chart - Conventional Brake System (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
