Home >> Mazda >> 2004 >> 6 L4-2.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No.17 Excessive Shift Shock From N to D or N to R Position/Range

No.17 Excessive Shift Shock From N to D or N to R Position/Range

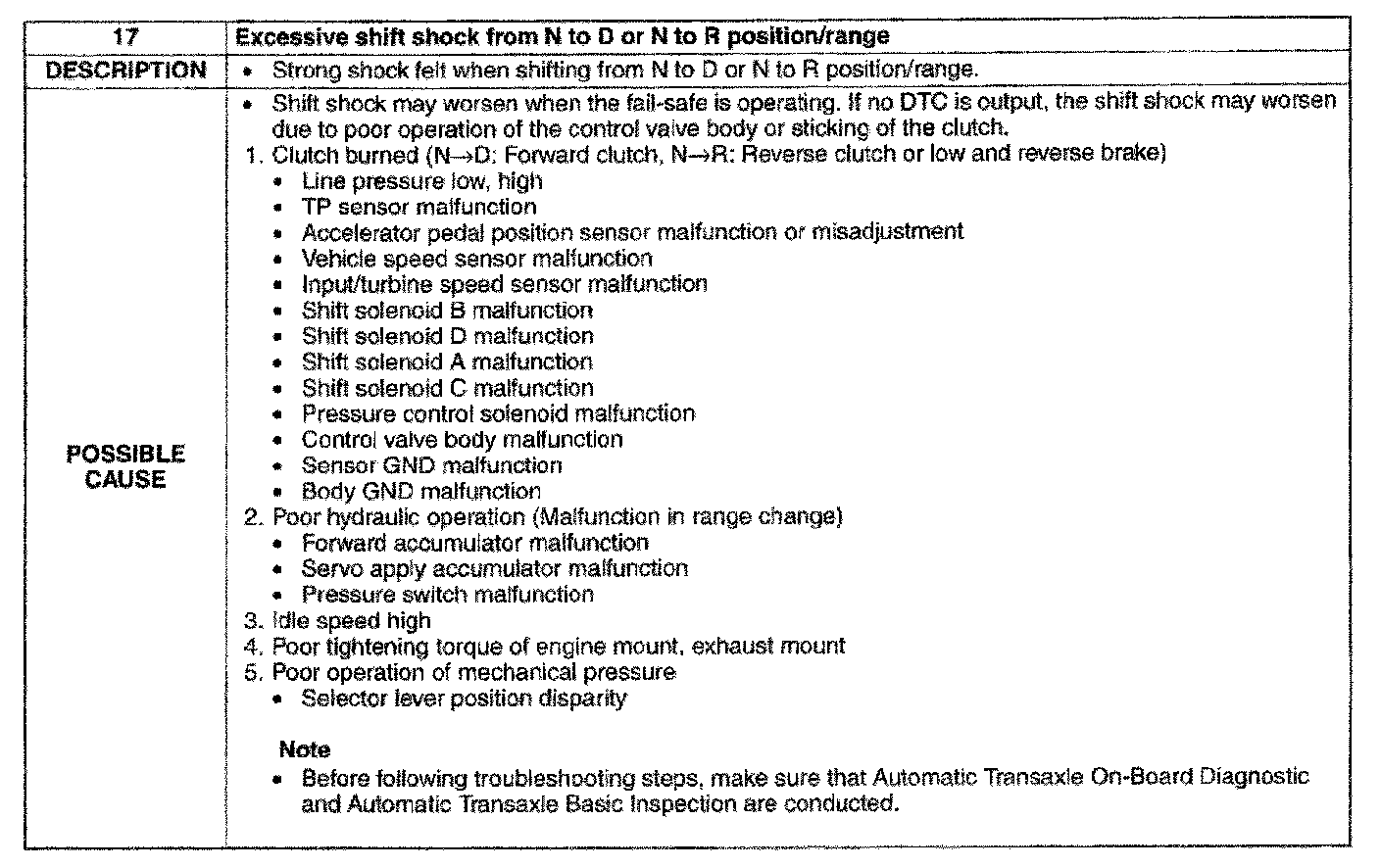

NO.17 EXCESSIVE SHIFT SHOCK FROM N TO D OR N TO R POSITION/RANGE [FN4A-EL]

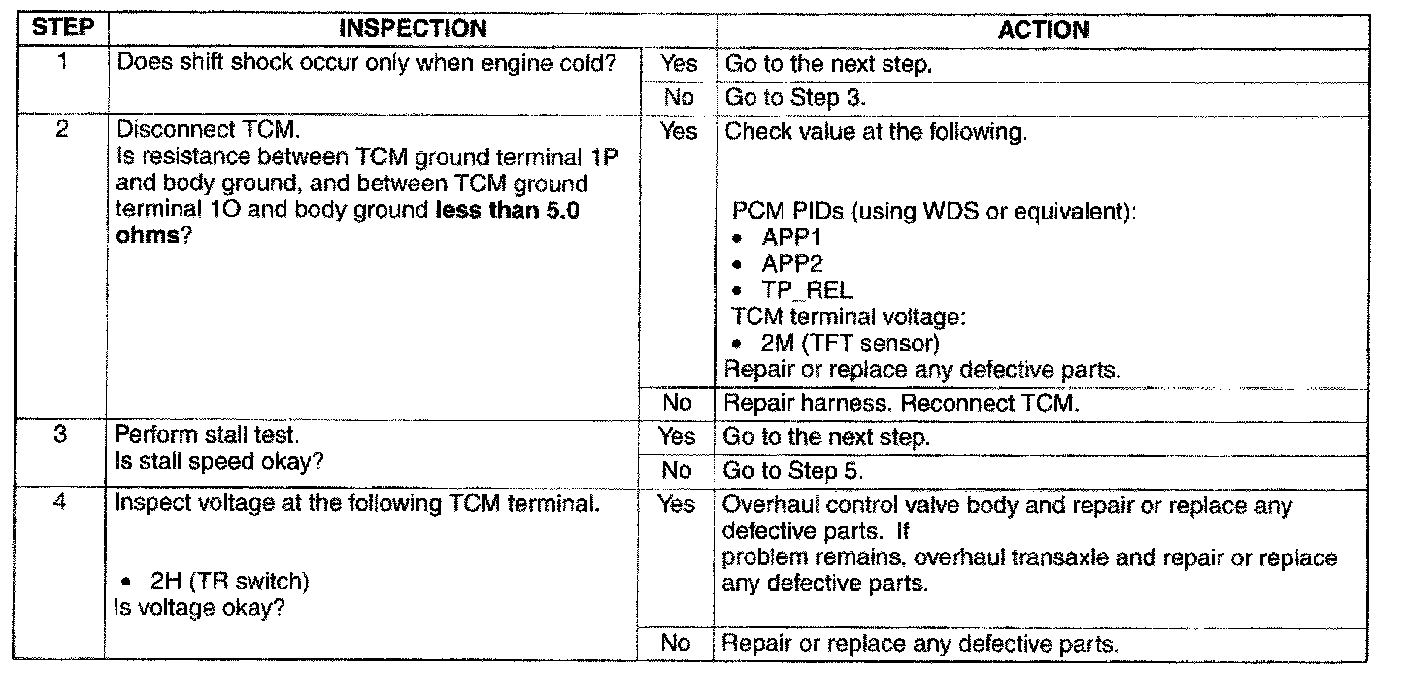

Steps 1-4:

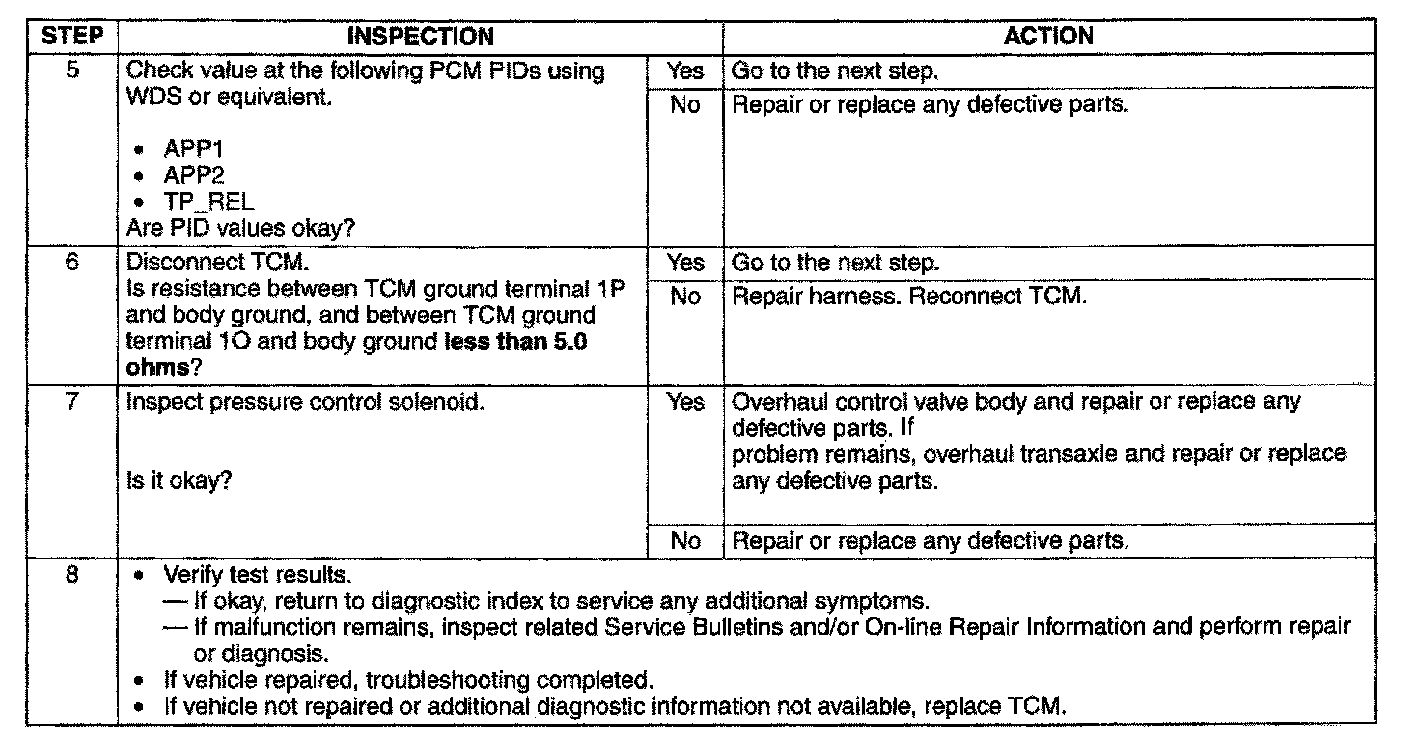

Steps 5-8:





Diagnostic procedure
