Home >> Mazda >> 2004 >> 6 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram C-f

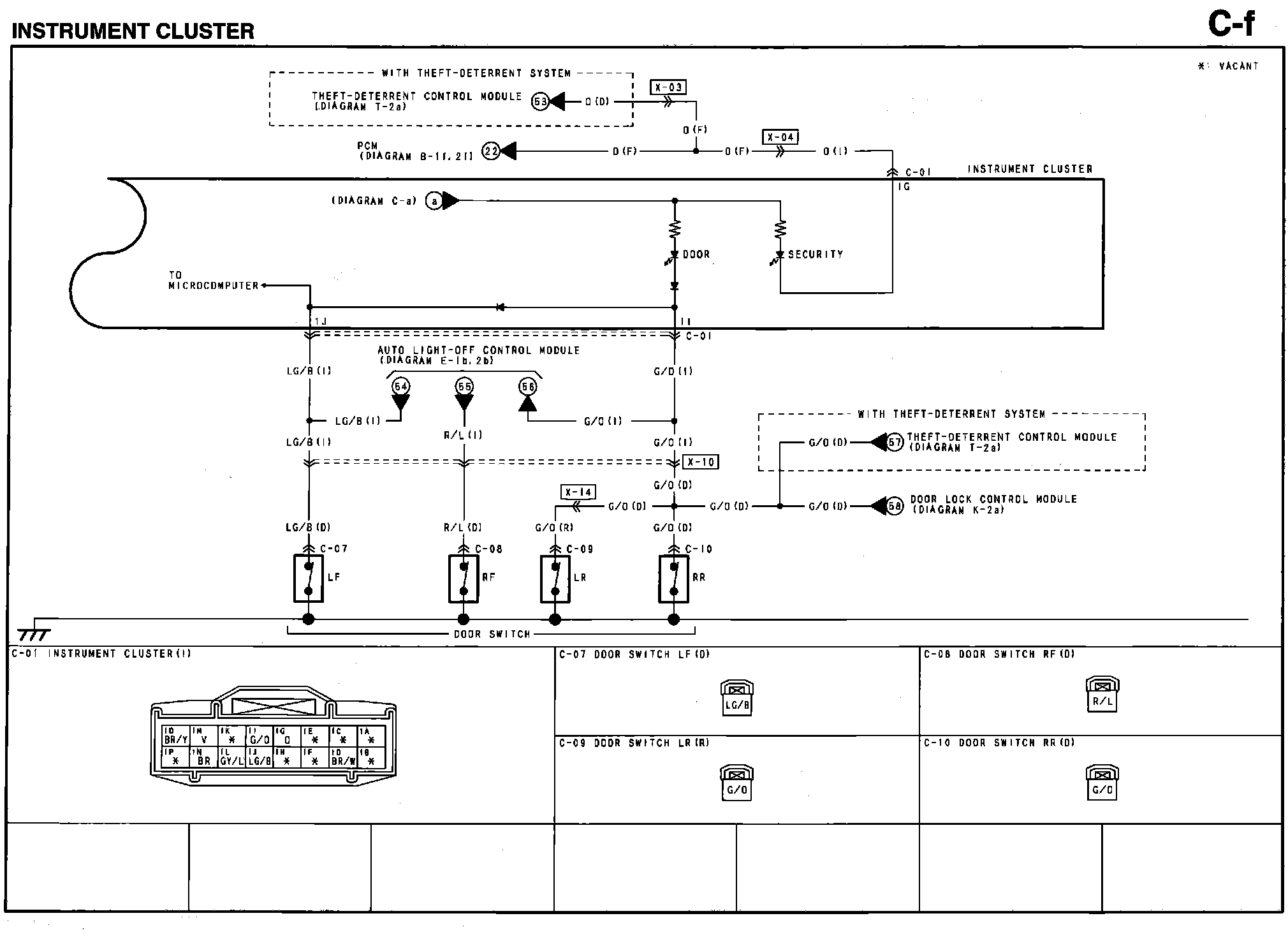

Diagram C-f

Diagram C-f:
