Antenna Cable: Locations

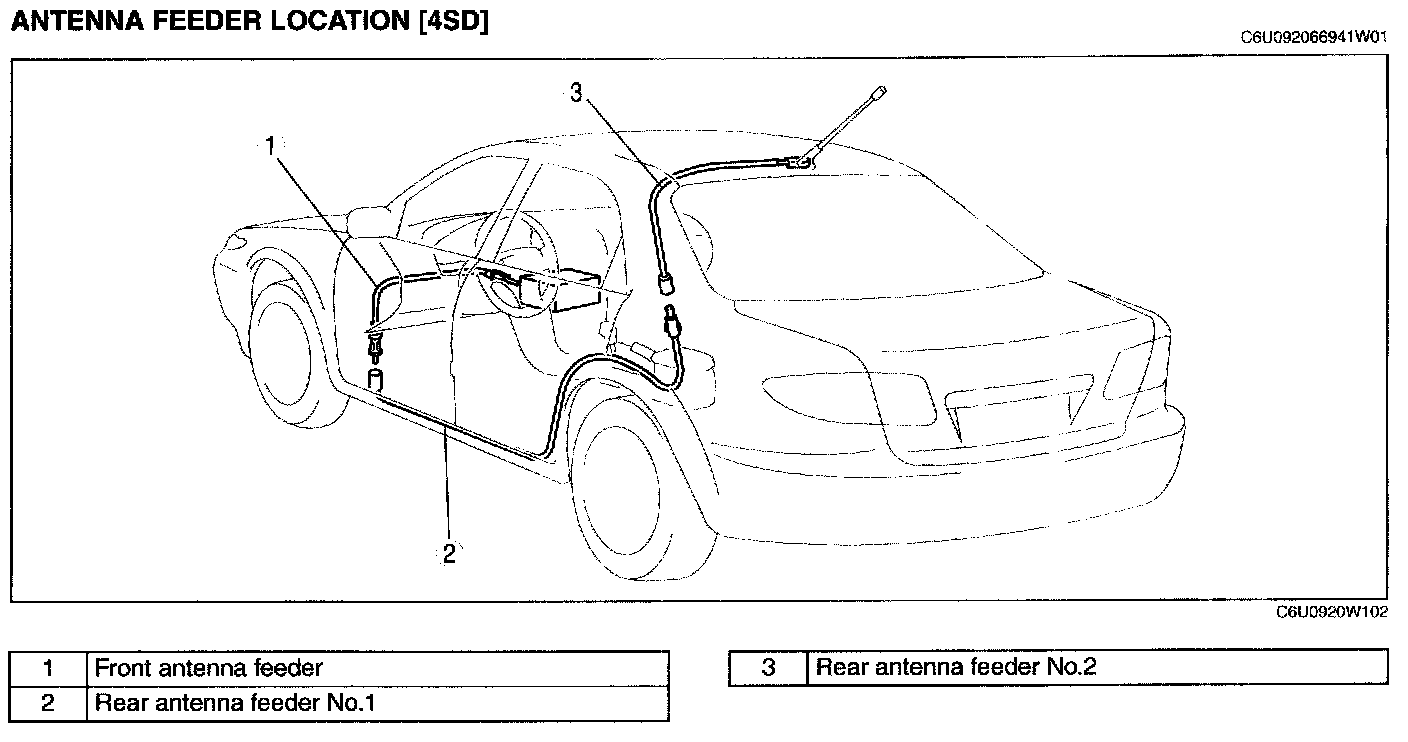

Antenna Feeder Location (4SD):

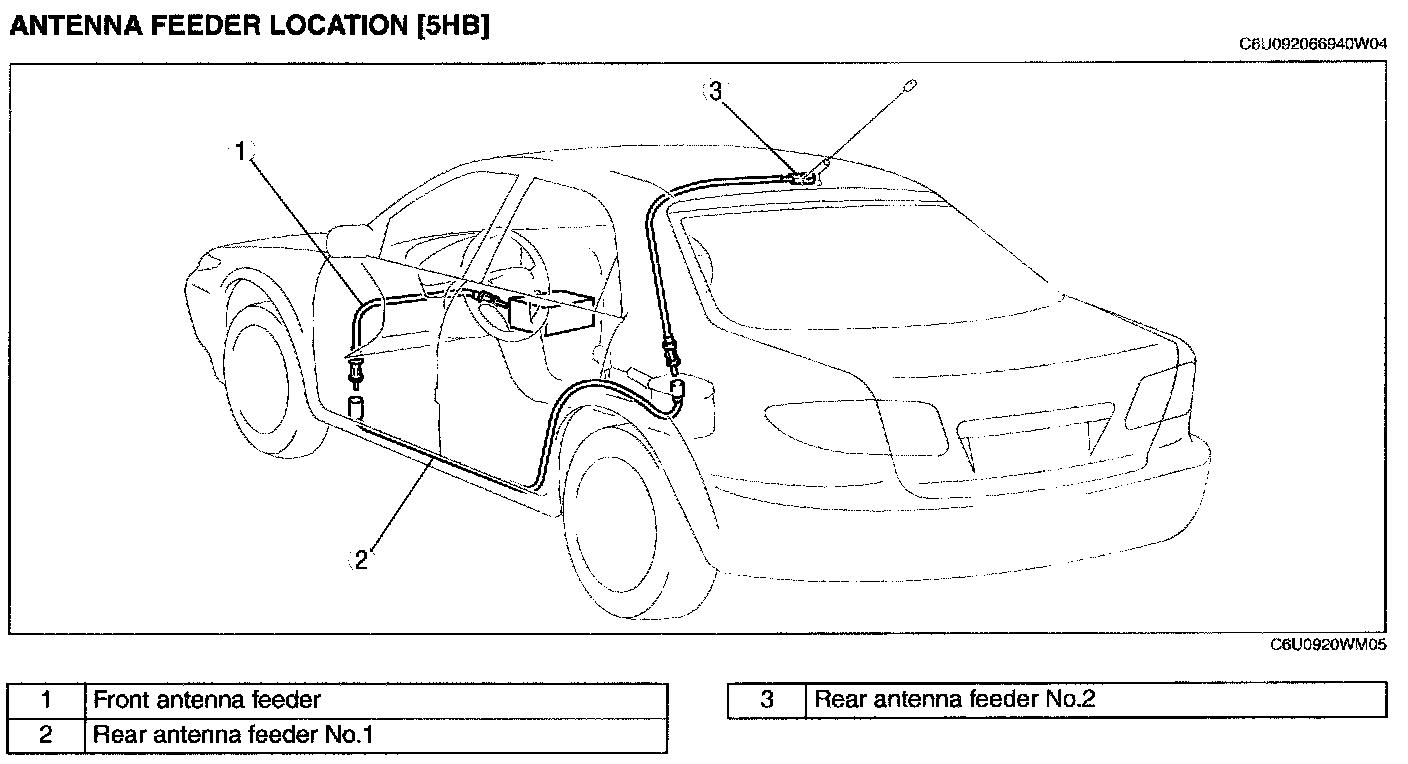

Antenna Feeder Location (5HB):

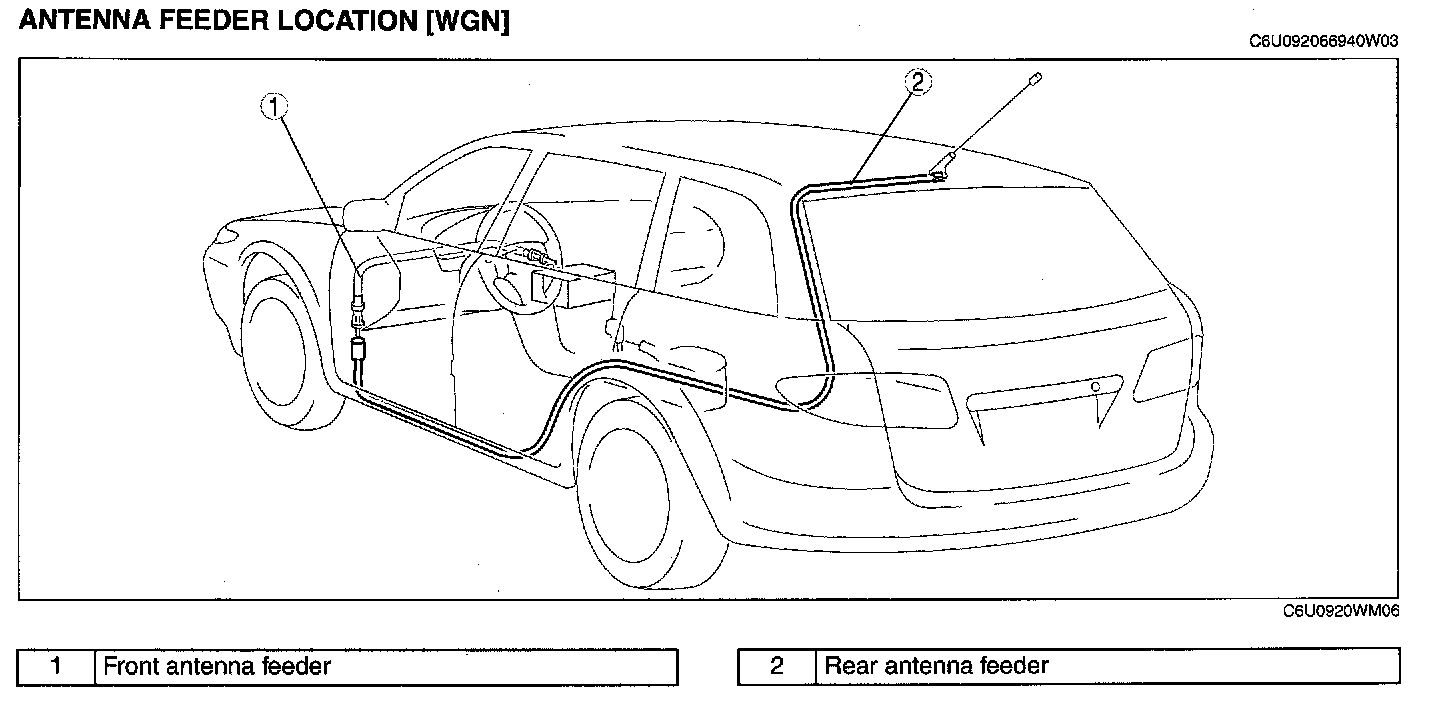

Antenna Feeder Location (WGN):
