Low and Reverse Brake and One-Way Clutch Inner Race Disassembly/Assembly

LOW AND REVERSE BRAKE AND ONE-WAY CLUTCH INNER RACE DISASSEMBLY/ASSEMBLY
1. Perform the preinspection before disassembly.
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

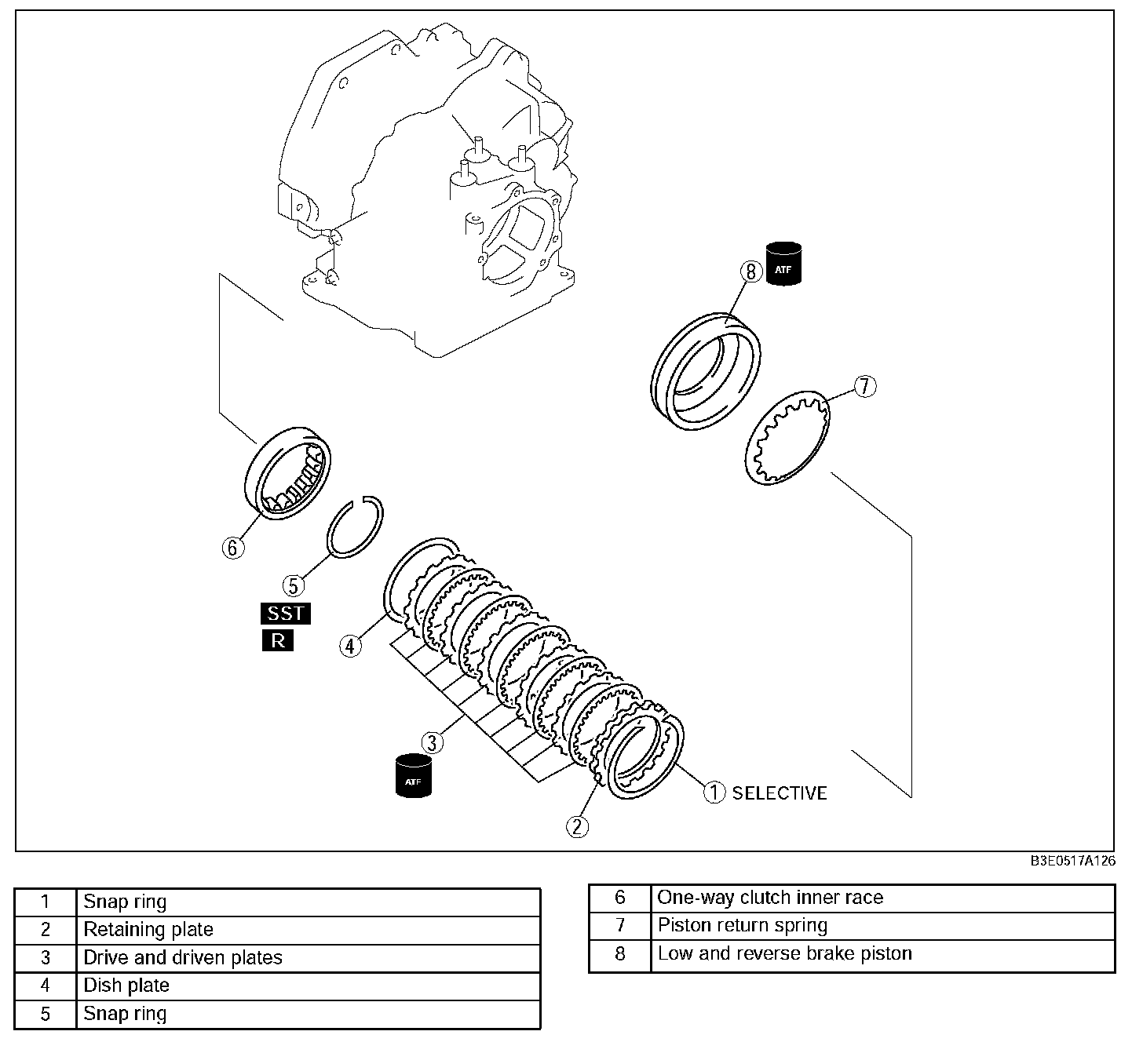

Low and Reverse Brake and One-Way Clutch Inner Race Disassembly/Assembly:
