Home >> Mazda >> 2004 >> 3 L4-2.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Door Lock Cylinder Switch >> Locations

Door Lock Cylinder Switch: Locations

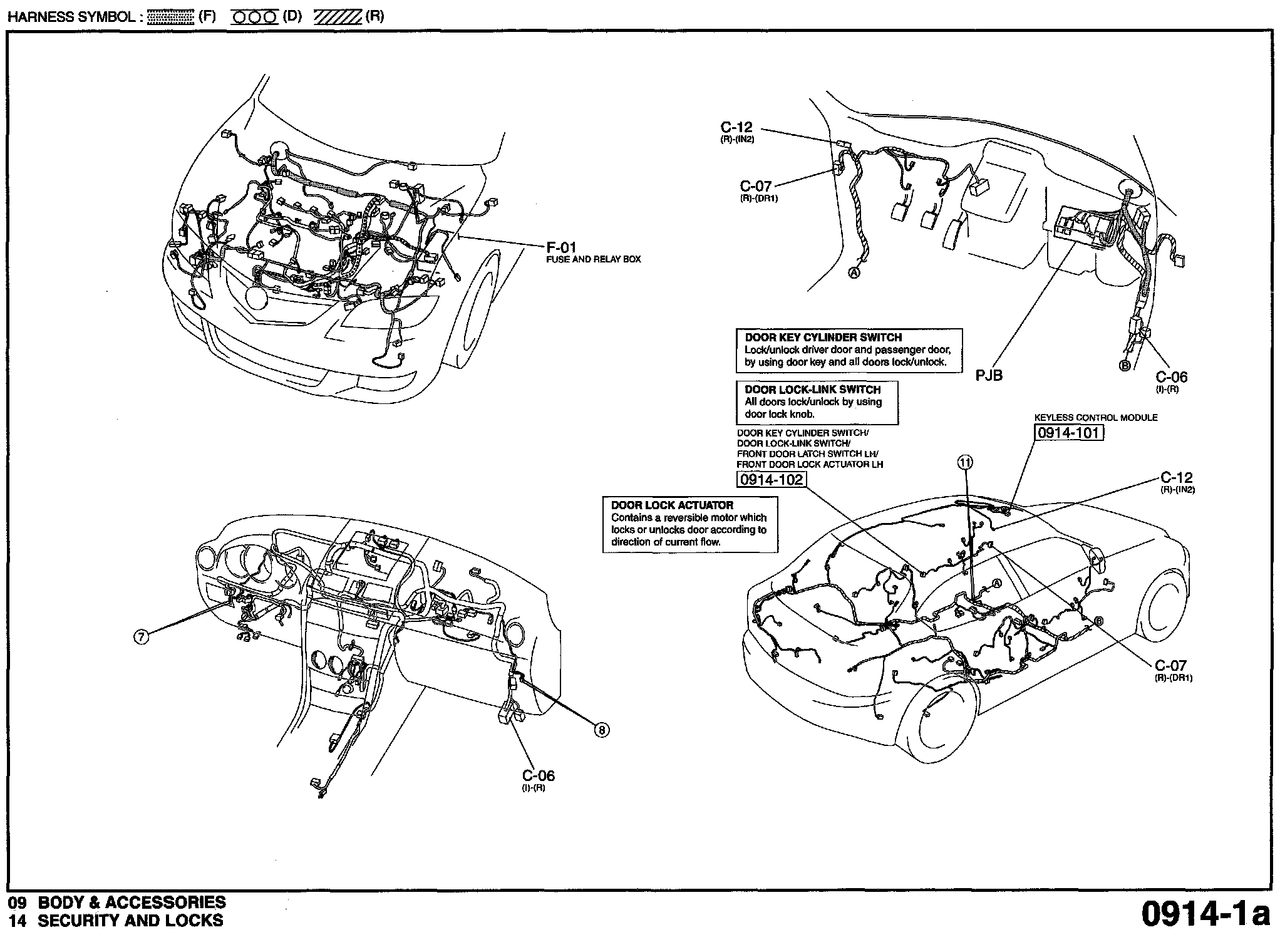

Routing View 0914-1a:
