Home >> Mazda >> 2004 >> 3 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0140-2f

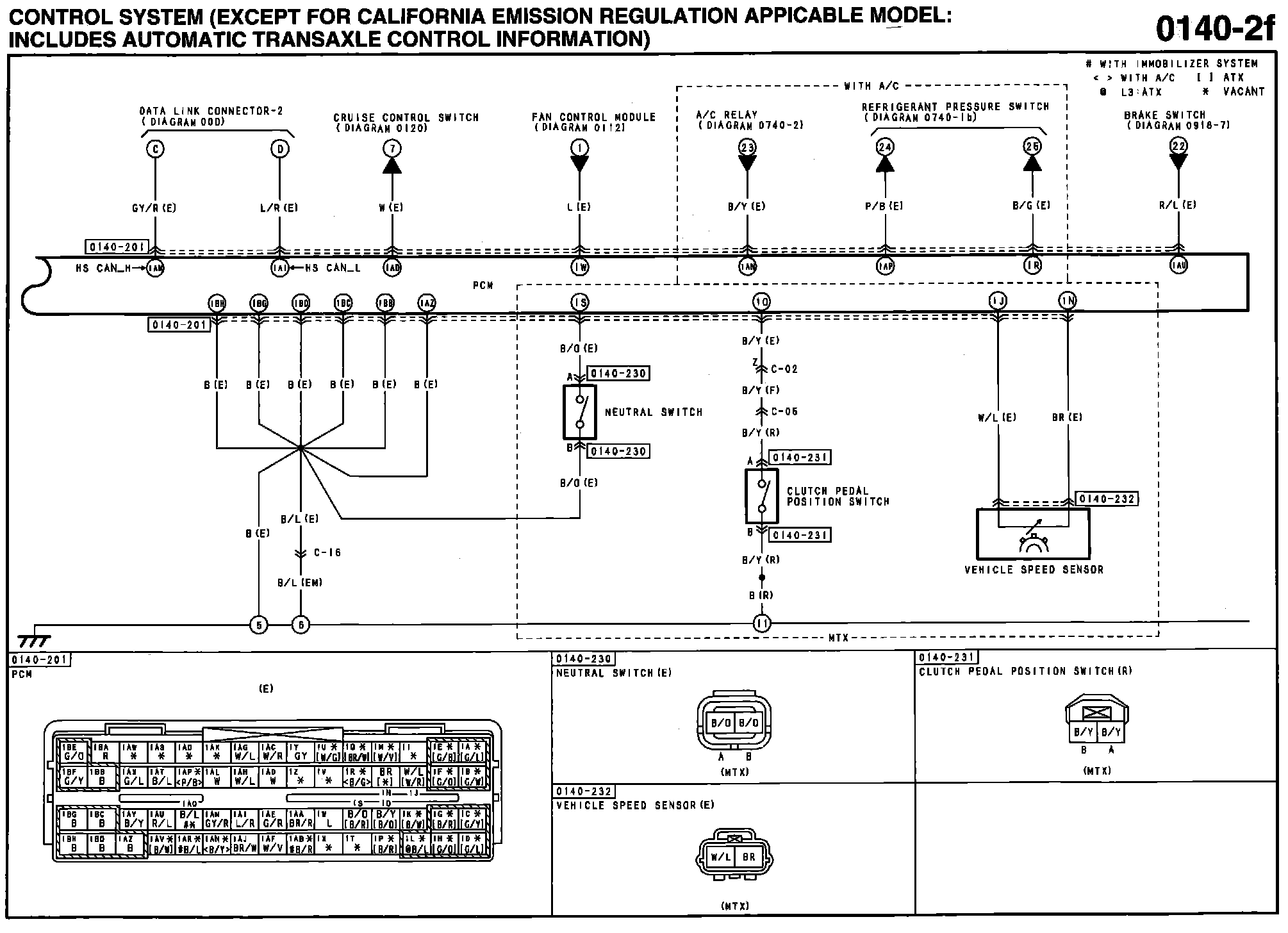

Diagram 0140-2f

Diagram 0140-2f:
