No.6 Brake System Warning Light Stays on 4 S or More When The Ignition Switch Is Turned To The ON Position (Parking Brake Is RE

NO.6 BRAKE SYSTEM WARNING LIGHT STAYS ON 4 S OR MORE WHEN THE IGNITION SWITCH IS TURNED TO THE ON POSITION (PARKING BRAKE IS RELEASED)

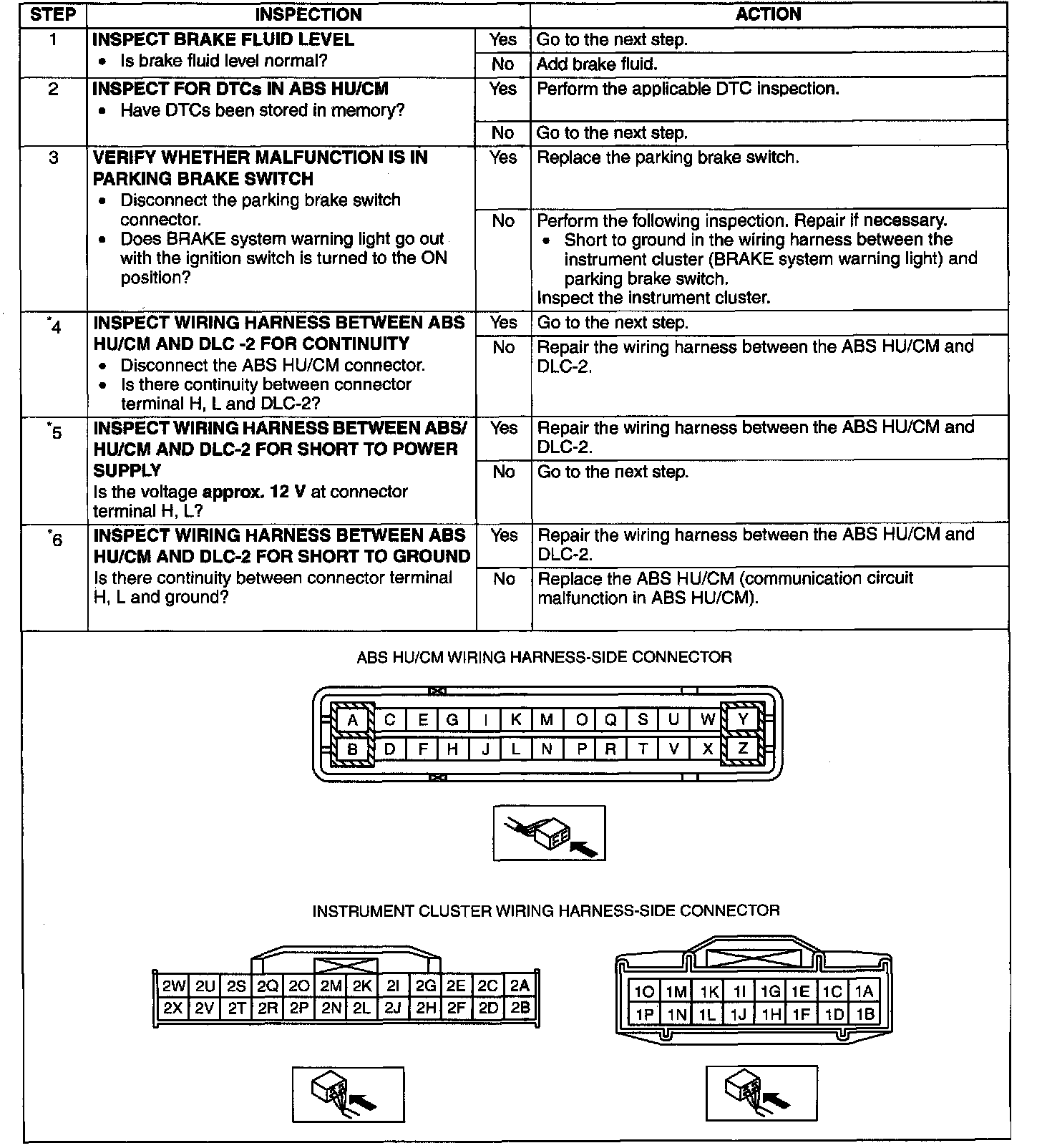

Diagnostic procedure





^ When performing an asterisks (*) troubleshooting inspection, slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points. Are the cause of any intermittent malfunction. If there is a problem, verify that the connectors, terminals and wiring harness are connected correctly and undamaged.
