Home >> Mazda >> 2004 >> 3 L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Locations >> Headlight (Without DRL)

Headlight (Without DRL)

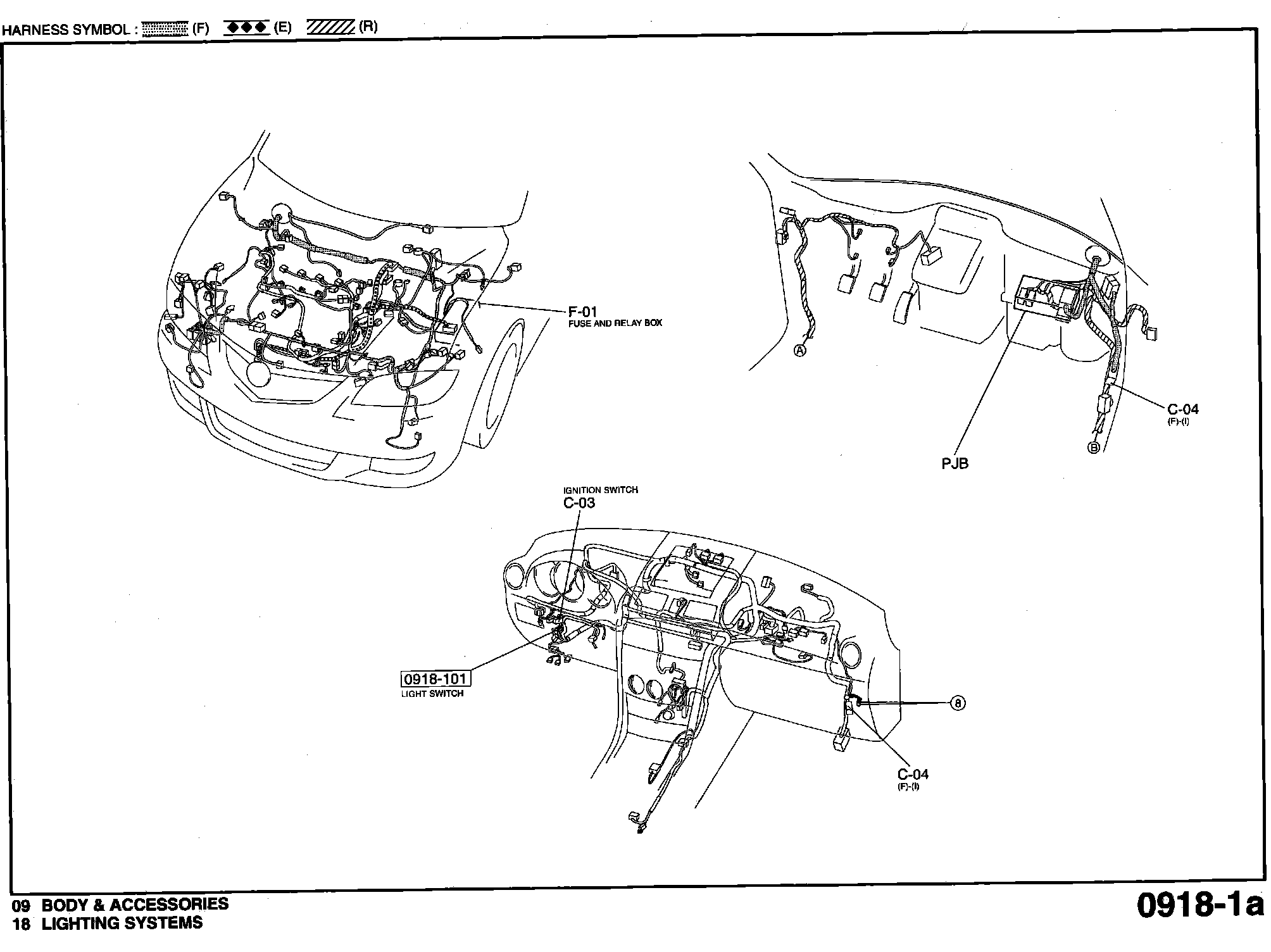

Routing View 0918-1a:
