Curtain air bag module (5-DOOR, Sport Wagon)

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side trunk side trim. (5-Door)
  2. Remove the headliner. (Sport Wagon)
  3. Disconnect the curtain air bag module connector.
  4. Connect the SST  (Adapter harness) to the curtain air bag module.

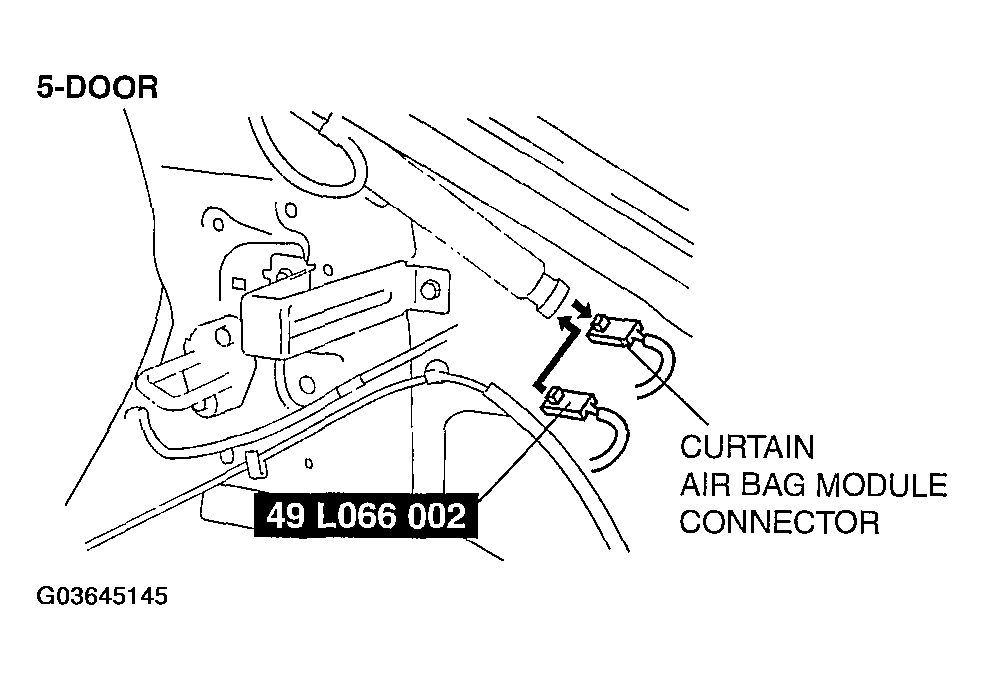

    Fig 1: Connecting SST (Adapter Harness) To Curtain Air Bag Module (5-Door)
    G03645145Courtesy of MAZDA MOTORS CORP.

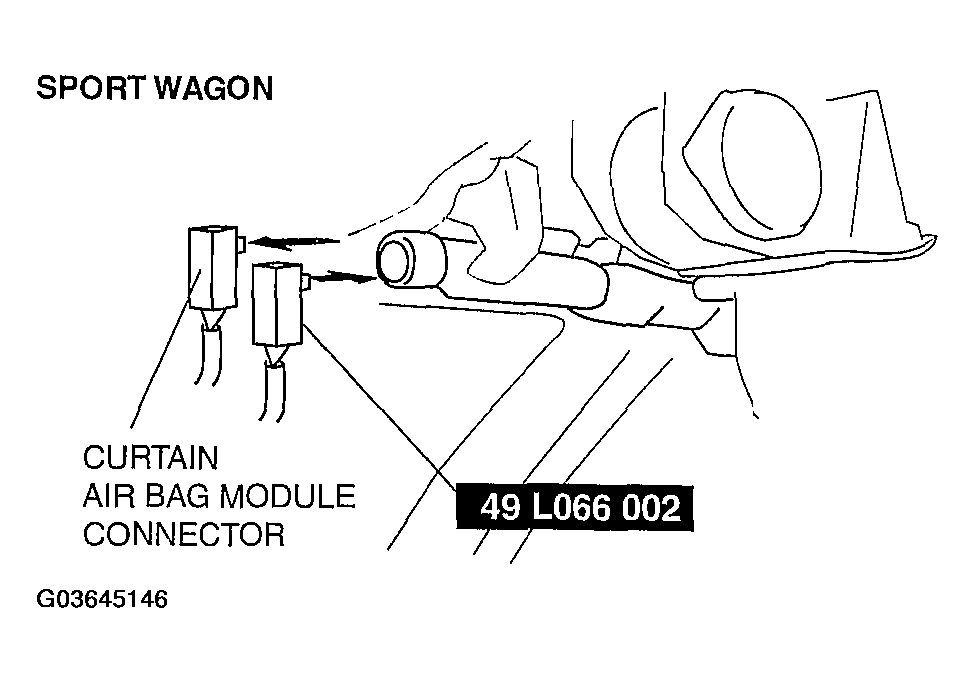

    Fig 2: Connecting SST (Adapter Harness) To Curtain Air Bag Module (Sport Wagon)
    G03645146Courtesy of MAZDA MOTORS CORP.
  5. Connect the SST  (Deployment tool) to the SST  (Adapter harness).
  6. Connect the red clip of the SST  (Deployment tool) to the positive battery terminal and the black clip to the negative battery terminal.
  7. Verify that the red light on the SST  (Deployment tool) is illuminated.
  8. Make sure all persons are standing at least 6 m {20 ft}  from the vehicle.
    Fig 3: Connecting SST (Adapter Harness) To SST (Deployment Tool)
    G03645147Courtesy of MAZDA MOTORS CORP.
  9. Press the activation switch on the SST  (Deployment tool) to deploy the curtain air bag module.
    Fig 4: Locating Activation Switch On SST
    G03645148Courtesy of MAZDA MOTORS CORP.
