Height Adjustment

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the stop rubber to adjust the height of the hood.

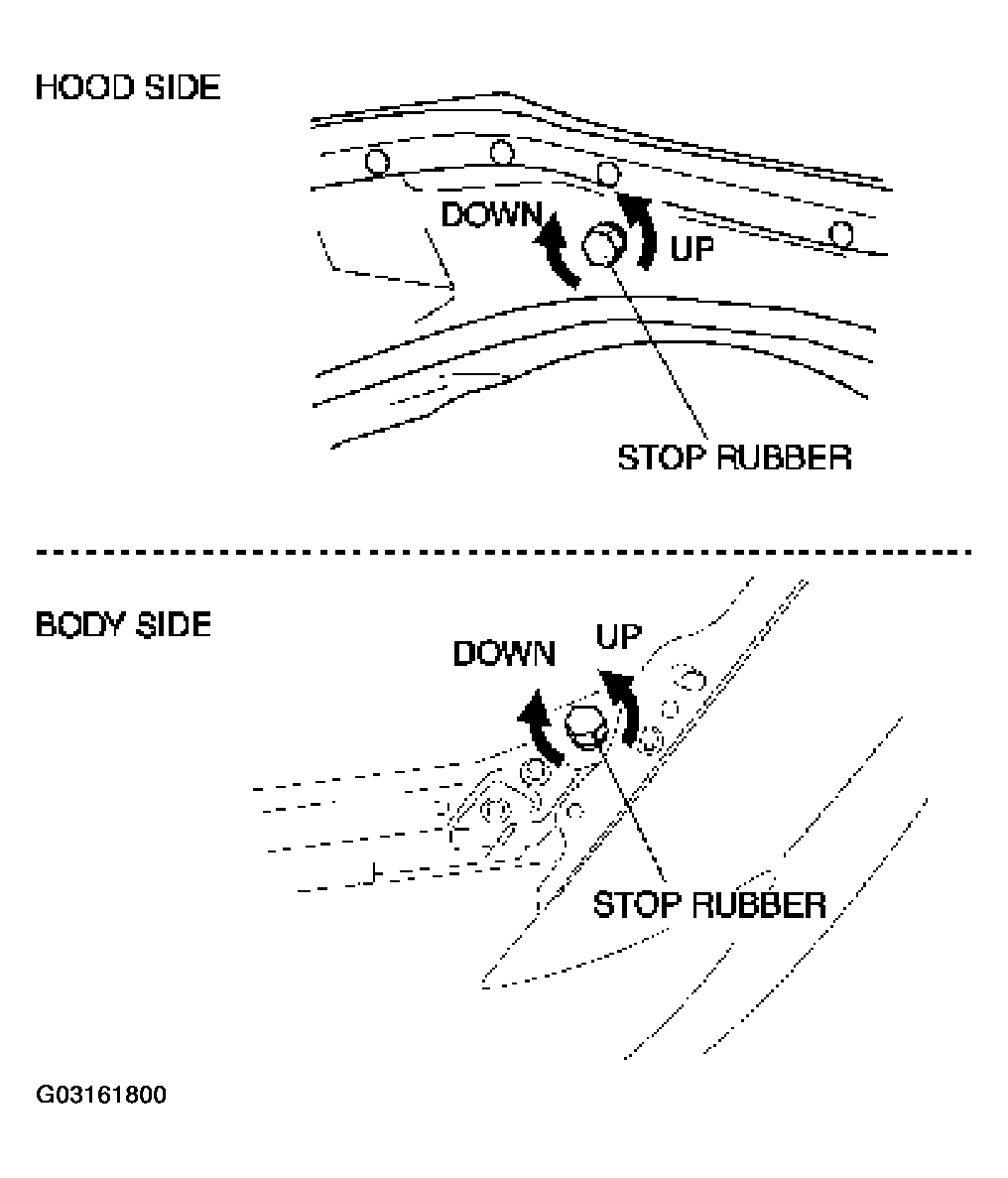

    Fig 1: Turning Stop Rubber To Adjust Height Of Hood
    G03161800Courtesy of MAZDA MOTORS CORP.
  2. Verify that the height difference between the hood and the body is within the specification.

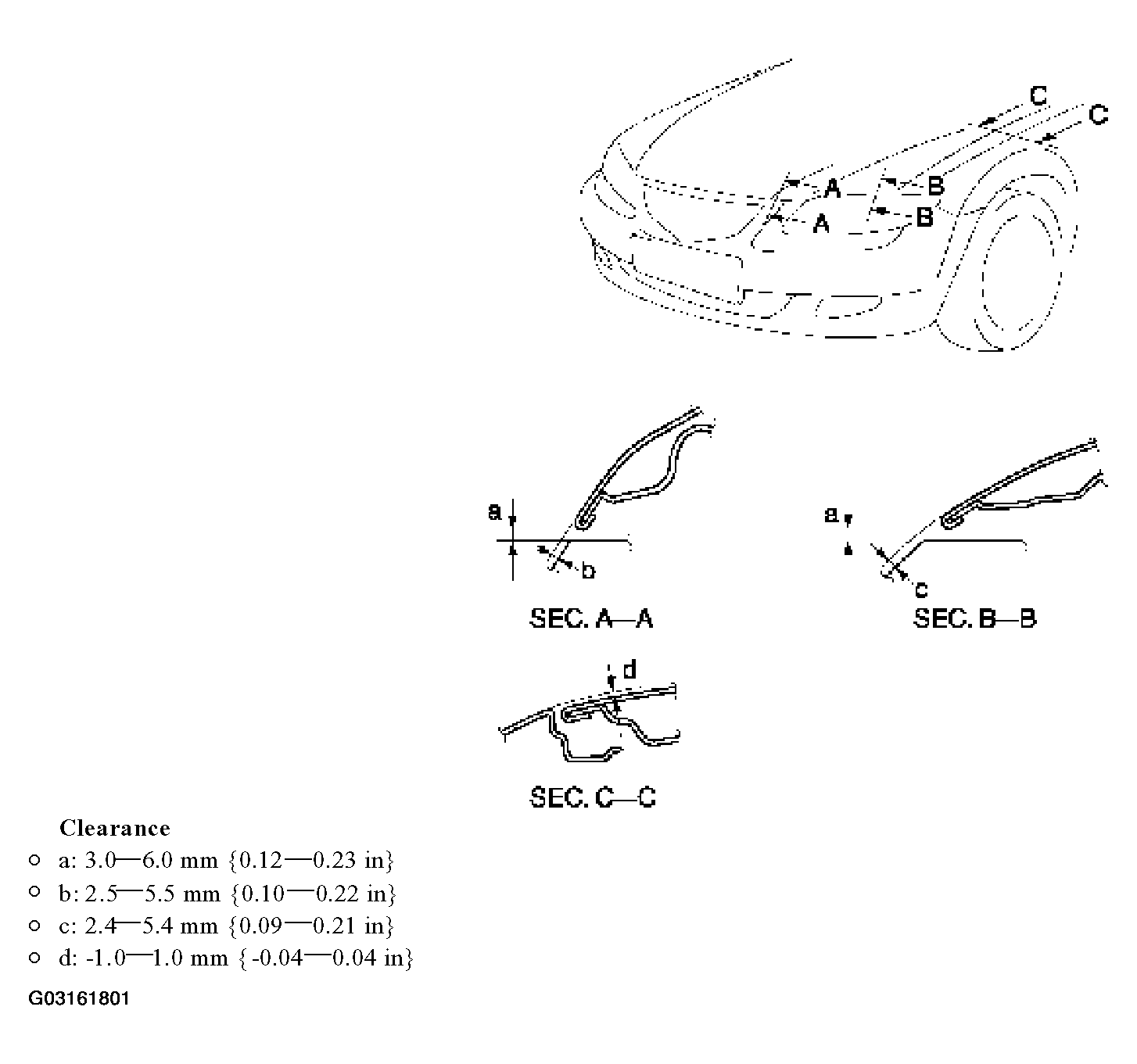

Fig 2: Verifying Height Difference Between Hood And Body
G03161801Courtesy of MAZDA MOTORS CORP.
