FS Engine

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

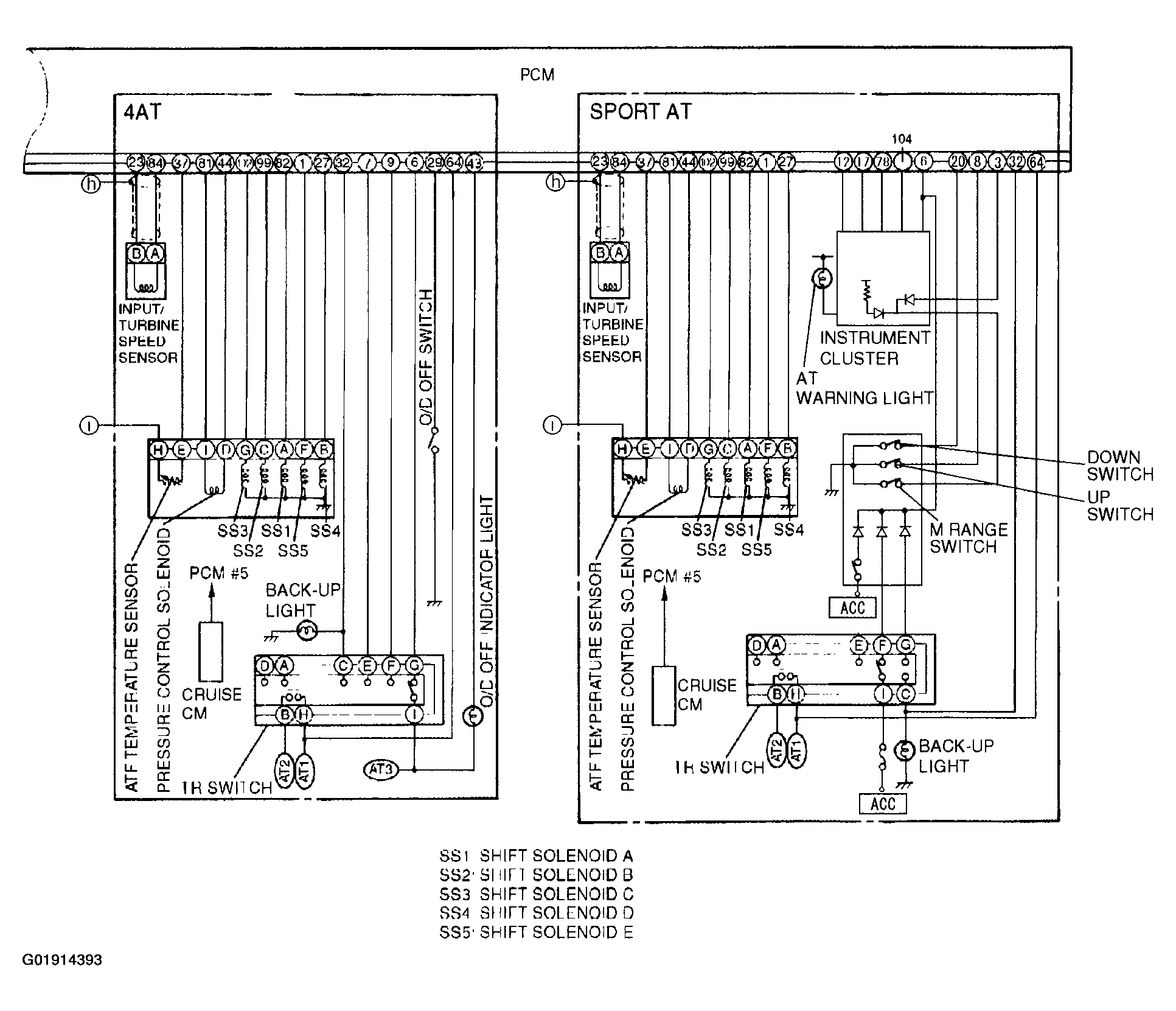

Fig 1: System Wiring Diagram - FS Engine (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

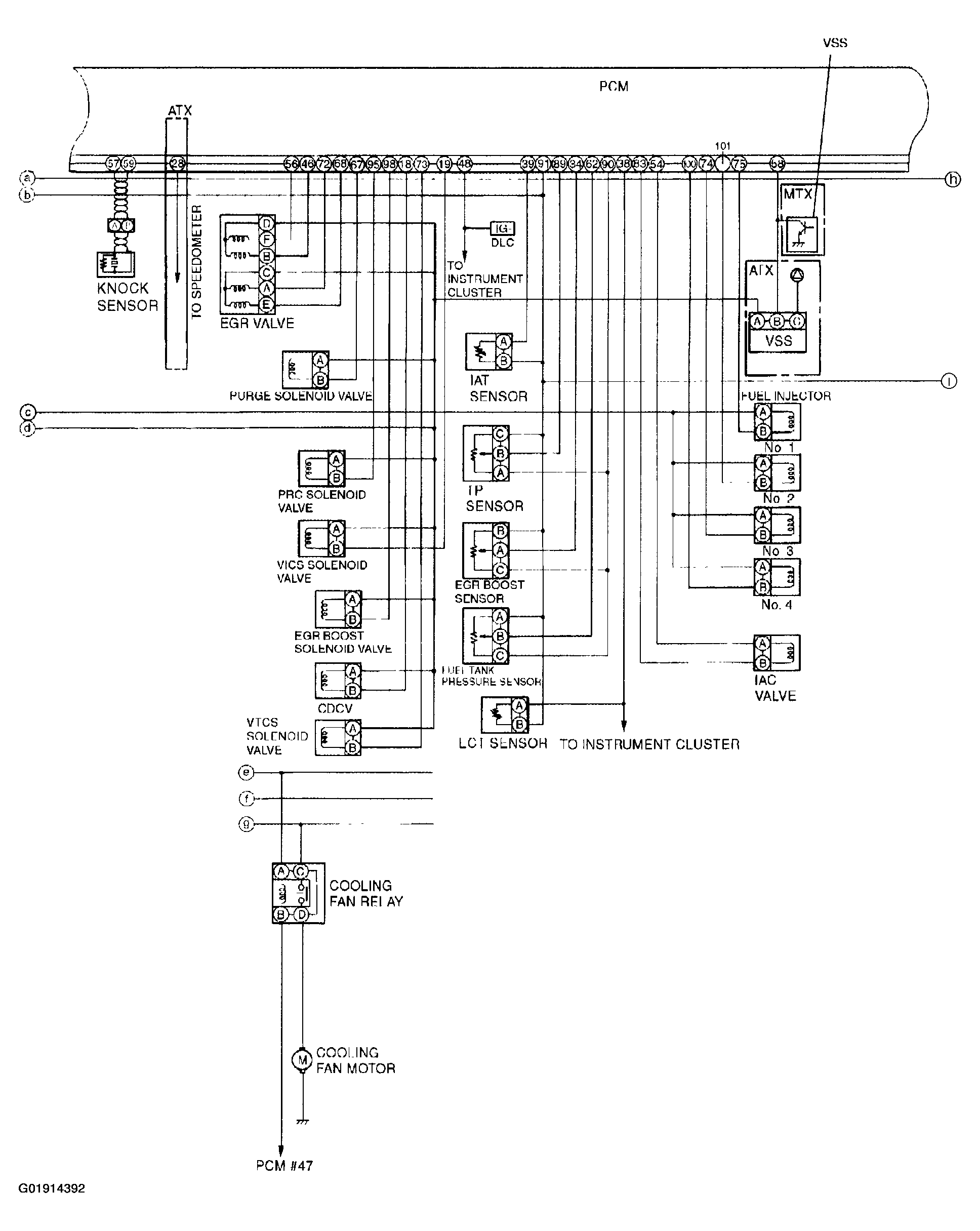

Fig 2: System Wiring Diagram - FS Engine (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

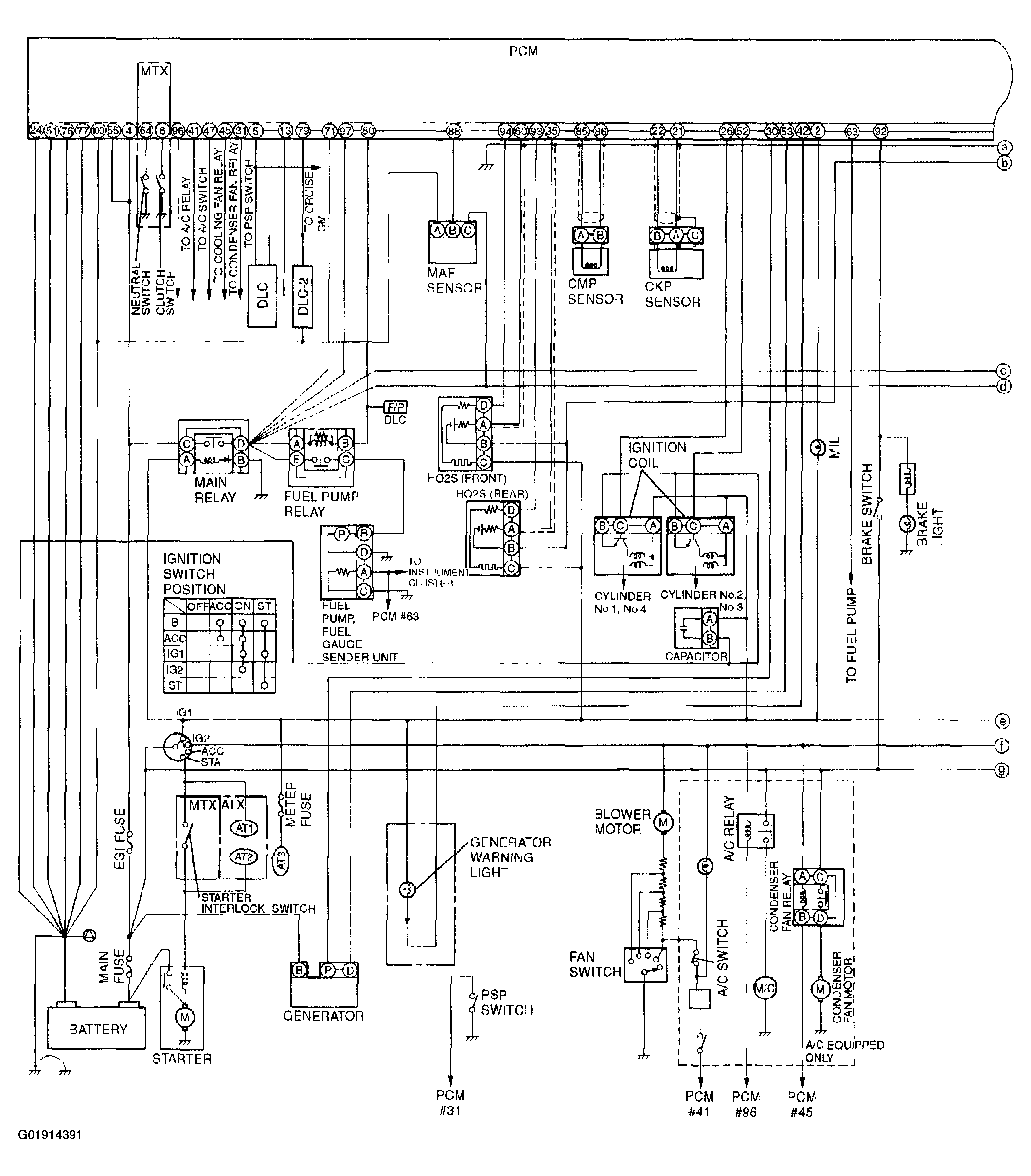

Fig 3: System Wiring Diagram - FS Engine (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
