Solenoid Valves Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Remove the control valve body. (See ON-VEHICLE REMOVAL .)
Remove the solenoid valve(s).
Apply ATF to a new O-ring and install it on the solenoid valve.
Install the solenoid valve in the control valve body.
Tightening Torque

7.9-10.7 N.m {80-110 kgf.cm, 69.5-95.4 in.lbf}

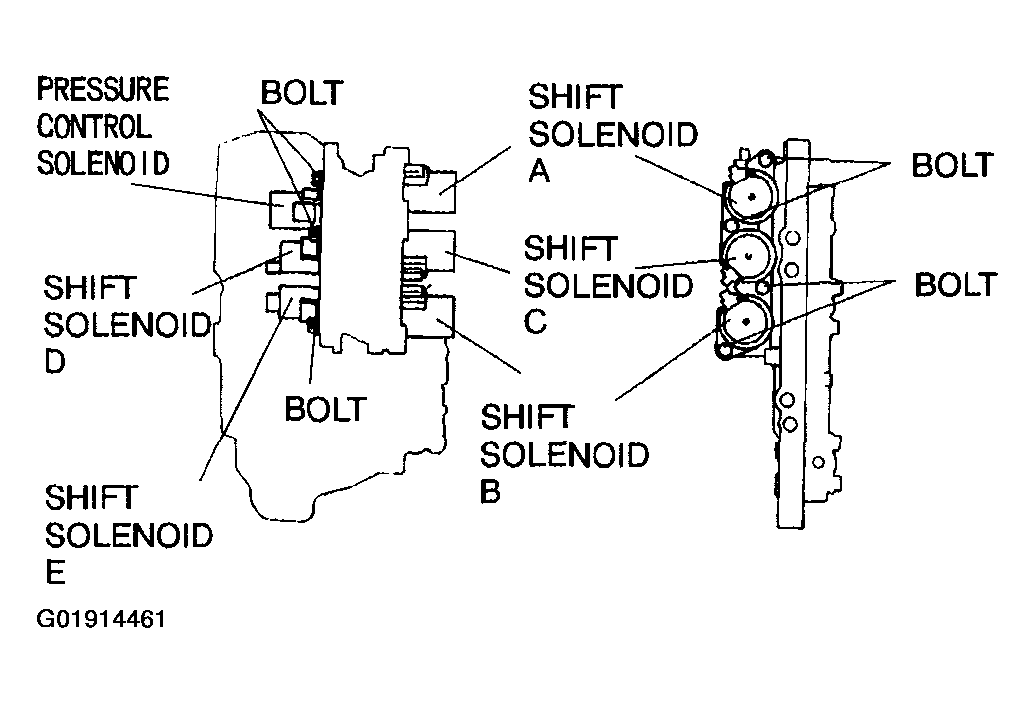

Fig 1: Removing Solenoid Valve
Courtesy of MAZDA MOTORS CORP.
Install the control valve body. (See ON-VEHICLE INSTALLATION .)
Add in ATF and, with the engine idling, inspect the ATF level and inspect for leakage. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .) (See AUTOMATIC TRANSAXLE FLUID (ATF) LEVEL INSPECTION .)
Carry out the mechanical system test. (See MECHANICAL SYSTEM TEST .)
Carry out the road test. (See ROAD TEST .)

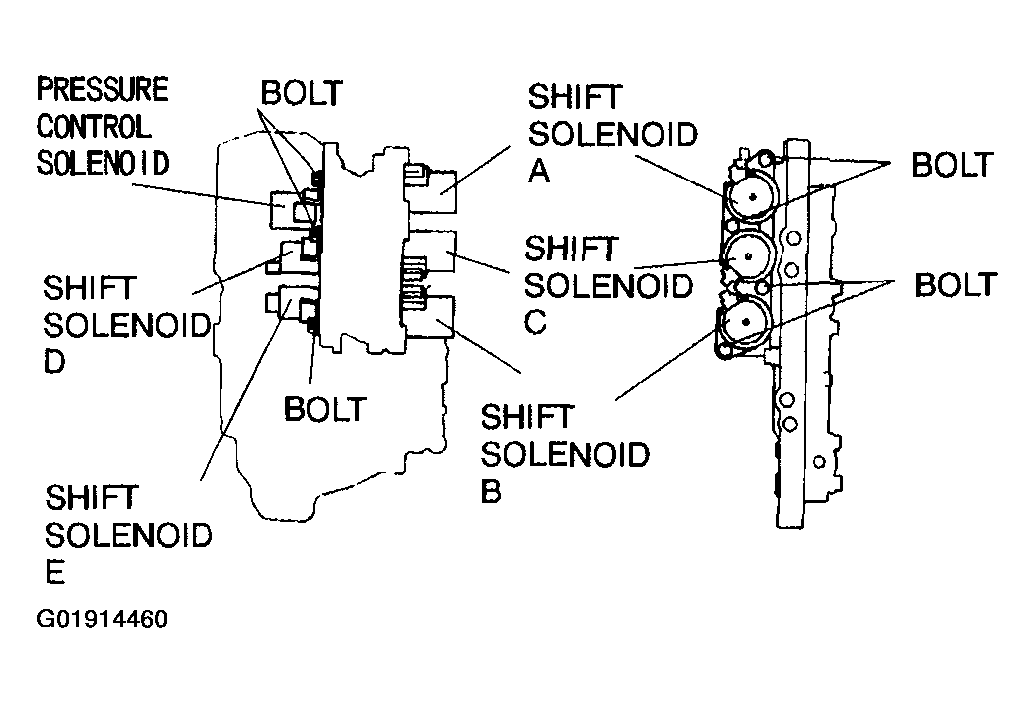

Fig 2: Installing Solenoid Valve
Courtesy of MAZDA MOTORS CORP.
